288 Core Fiber Optic Wall Mount Enclosure High Impact Resistance PP Materials
288 Core Fiber Optic Wall Mount Enclosure High Impact Resistance PP Materials
288 Core Fiber Optic Wall Mount Enclosure High Impact Resistance PP Materials
288 Core Fiber Optic Wall Mount Enclosure High Impact Resistance PP Materials
288 Core Fiber Optic Wall Mount Enclosure High Impact Resistance PP Materials
288 Core Fiber Optic Wall Mount Enclosure High Impact Resistance PP Materials
288 Core Fiber Optic Wall Mount Enclosure High Impact Resistance PP Materials
288 Core Fiber Optic Wall Mount Enclosure High Impact Resistance PP Materials
Specifications
Brand Name :
HG or OEM
Model Number :
CV016
Certification :
iso9001
Place of Origin :
China
MOQ :
50pcs
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Delivery Time :
5-7working days
Packaging Details :
1pc/box
Products :
288 Core Optical Fiber Cable Joint Closure Dome Splice Closure
Material :
PP materials with UV
Cable port :
6 round port
Max. capacity :
288Fiber
IP :
IP68
Warranty :
5 Years
Description

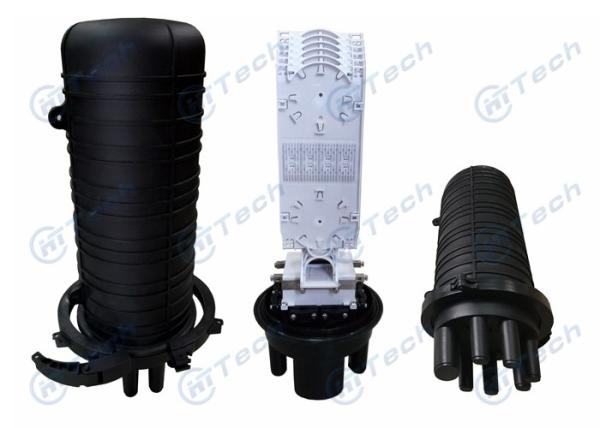

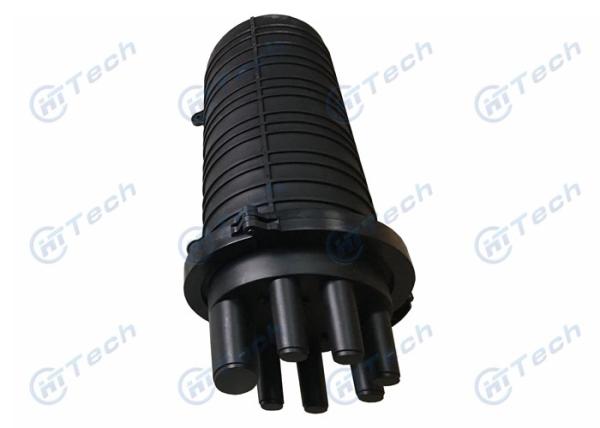

CV016 288 Fibers Dome Fiber Optic Splice Closure

Features:

1) Splice tray: Max. 12pcs, each 24cores

2) Cable port: 6pcs round port φ19.9mm, 1pc oval port 38x70mm for supporting cable entry without cutting. All cable ports are heat shrink sealing.

3) Waterproof: IP68

4) Wall-mounting, aerial hanger and pole holding

5) Material: high impact resistance PP materials with UV

Specification:

Model Splice tray Fiber core Dimension(mm) Net weight(Kg)
CV016 12 trays, each 24 fibers 288 fibers Φ228 × 527.5 3.31

Drawing:

288 Core Fiber Optic Wall Mount Enclosure High Impact Resistance PP Materials

More Products:

288 Core Fiber Optic Wall Mount Enclosure High Impact Resistance PP Materials

288 Core Fiber Optic Wall Mount Enclosure High Impact Resistance PP Materials

288 Core Fiber Optic Wall Mount Enclosure High Impact Resistance PP Materials

288 Core Fiber Optic Wall Mount Enclosure High Impact Resistance PP Materials

288 Core Fiber Optic Wall Mount Enclosure High Impact Resistance PP Materials

288 Core Fiber Optic Wall Mount Enclosure High Impact Resistance PP Materials
