Duplex Flat Fiber Optic Cable 2 Cores UL Fire Rated OFNR With 900μM Tight Buffer Fiber
Duplex Flat Fiber Optic Cable 2 Cores UL Fire Rated OFNR With 900μM Tight Buffer Fiber
Specifications
Brand Name :
HG or OEM
Model Number :
GJFJBV
Certification :
ISO9001
Place of Origin :
China
MOQ :
10KM
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
2000KM Per Day
Delivery Time :
5-7 working days
Packaging Details :
4KM/Drum
name :
Indoor Duplex Flat Fiber Optic Cable 2Cores LSZH Outer Jacket
Model NO. :
GJFJBV
Sheath Material :
Length According to Requirement Fiber Cores
Cores :
1- 12 Cores
Warranty :
2Years
Outer Jacket :
LSZH
Description

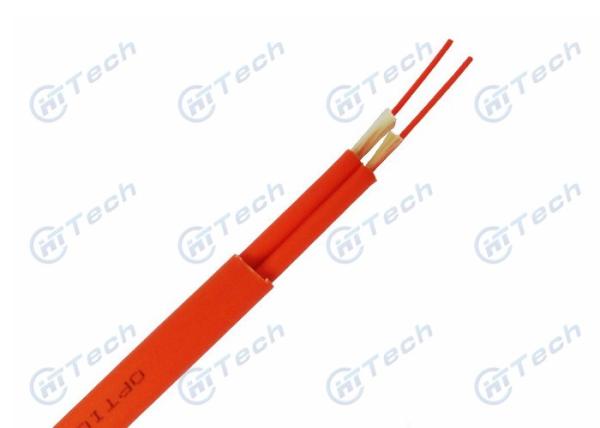

Indoor Duplex Flat Fiber Optic Cable 2Cores LSZH Outer Jacket

Duplex flat optical cable use 900μm tight buffer fiber as optical communication medium, the tight buffer
fiber wrapped with a layer of aramid yarn as strength member units, such unit is extruded with a layer of
LSZH material as inner jacket. Duplex flat optical cable is constructed with two simplex units held together
in an falt LSZH outer jacket. All dielectric structure protect it from electromagnetic influence.

Duplex Flat Fiber Optic Cable 2 Cores UL Fire Rated OFNR With 900μM Tight Buffer Fiber

Complied With Or Exceeds Standard
. ITU-T G652.D . ITU-T G651.1 OM1 OM2 OM3 OM4
. ITU-T G657.A . IEC60793-2-10 type A1a.1/A1b OM1/OM2
. IEC60793-2-10 type A1a.2 OM3 . IEC60793-2-10 type A1a.3 OM4
. ISO/IEC 11801 , ISO/IEC 24702 . IEEE 802.3z Gigabit Ethernet
. ANSI/TIA/EIA 568C.3 . ROHS Compliant Directive 2011/65/EU(ROHS2.0)

Mechanical & Environmental Characteristics
ITEM Value
Max. Tensile Load (Short Term) 800N
Max. Tensile Load (Long Term) 300N
Max. Crush Load (Short Term) 1000N/100mm
Max Crush Load (Long Term) 500N/100mm
UL Fire Rated OFNR
Operating Temperature -20°C to +60°C
Storage Temperature -40°C to +85°C
Sheath Material Standard: LSZH Optional: PVC or other

ANSI/TIA/EIA-598-B Standard Fiber Color Code

Fiber Number Fiber Color Fiber Number Fiber Color
Fiber 1 Blue Fiber 7 Red
Fiber 2 Orange Fiber 8 Black
Fiber 3 Green Fiber 9 Yellow
Fiber 4 Brown Fiber 10 Violet
Fiber 5 Slate Fiber 11 Rose
Fiber 6 White Fiber 12 Aqua

Fiber 13 and higher The color code is repeated with added black stripe or dash
Note: Fiber Tube color will be followed with same order.
