Good Tensile Strength Fiber Breakout Cable , 2-24 Cores Tight Buffered Cable
Good Tensile Strength Fiber Breakout Cable , 2-24 Cores Tight Buffered Cable
Specifications
Brand Name :
HG or OEM
Model Number :
GJBFJV
Certification :
ISO9001
Place of Origin :
China
MOQ :
2KM
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
2000KM Per Day
Delivery Time :
5-7 working days
Packaging Details :
4KM/Drum
name :
fiber breakout cable
Model NO. :
GJBFJV
Sheath Material :
Length According to Requirement Fiber Cores
Cores :
2-24 Cores
Warranty :
2Years
Outer Jacket :
PVC,LSZH
Description

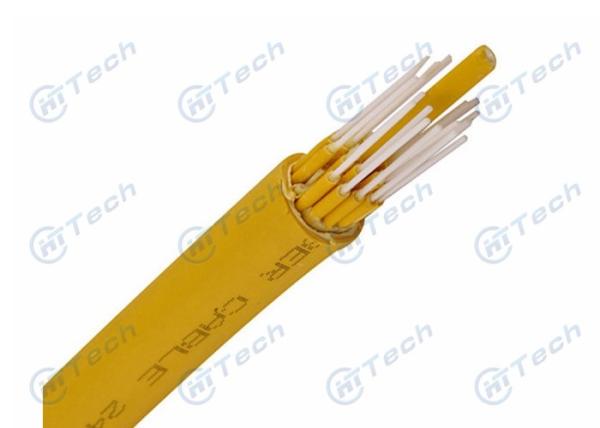

Indoor 2-24 Cores Breakout Tight Buffer Fiber Optic Cable LSZH

These cables are constructed bundling tight buffered simplex optical fiber in an outer jacket. Non metallic FRP
strength members in the cable give it good tensile strength and electro-magnetic protection. It has small diameter,
light weight and thick wall jacket protection, giving it versatile applications. It can be used in cable assemblies
and places of high electro-magnetic interferences.

Flexible and small bent radius ensures good performance against pressure. These simplex cables are individually
reinforced with Aramid yarn so can be terminated without the need for breakout boxes, patch panel or junction boxes.

Each fiber is mechanically reinforced with two successive sheaths of 400µm and 900µm which enables direct
termination of connectors. Excellent strip force stability, fiber geometrical dimension and transmission performance
meets the customer demand. Available in PVC, LSZH, Plenum outer sheath and tight buffer: 900µm, 600µm. The
cable is specially designed for indoor applications like oor distribution, interconnection and equipment connection.

Good Tensile Strength Fiber Breakout Cable , 2-24 Cores Tight Buffered Cable

Complied With Or Exceeds Standard
. ITU-T G652.D . ITU-T G651.1 OM1 OM2 OM3 OM4
. ITU-T G657.A . IEC60793-2-10 type A1a.1/A1b OM1/OM2
. IEC60793-2-10 type A1a.2 OM3 . IEC60793-2-10 type A1a.3 OM4
. ISO/IEC 11801 , ISO/IEC 24702 . IEEE 802.3z Gigabit Ethernet
. ANSI/TIA/EIA 568C.3 . ROHS Compliant Directive 2011/65/EU(ROHS2.0)

Mechanical & Environmental Characteristics

ITEM Value
Max. Tensile Load (Short Term) 1500N
Max. Tensile Load (Long Term) 600N
Max. Crush Load (Short Term) 2000N/100mm
Max Crush Load (Long Term) 1000N/100mm
UL Fire Rated OFNR
Operating Temperature -20°C to +60°C
Storage Temperature -40°C to +85°C
Sheath Material Standard: PVC Optional: LSZH, PE or other

ANSI/TIA/EIA-598-B Standard Fiber Color Code

Fiber Number Fiber Color Fiber Number Fiber Color
Fiber 1 Blue Fiber 7 Red
Fiber 2 Orange Fiber 8 Black
Fiber 3 Green Fiber 9 Yellow
Fiber 4 Brown Fiber 10 Violet
Fiber 5 Slate Fiber 11 Rose
Fiber 6 White Fiber 12 Aqua

Fiber 13 and higher The color code is repeated with added black stripe or dash
Note: Fiber Tube color will be followed with same order.
