SC/APC 1 Port FTTH Splitter Box Connect Models Fusion Splicing / Mechanical Splicing / FMC
SC/APC 1 Port FTTH Splitter Box Connect Models Fusion Splicing / Mechanical Splicing / FMC
SC/APC 1 Port FTTH Splitter Box Connect Models Fusion Splicing / Mechanical Splicing / FMC
SC/APC 1 Port FTTH Splitter Box Connect Models Fusion Splicing / Mechanical Splicing / FMC
SC/APC 1 Port FTTH Splitter Box Connect Models Fusion Splicing / Mechanical Splicing / FMC
SC/APC 1 Port FTTH Splitter Box Connect Models Fusion Splicing / Mechanical Splicing / FMC
SC/APC 1 Port FTTH Splitter Box Connect Models Fusion Splicing / Mechanical Splicing / FMC
SC/APC 1 Port FTTH Splitter Box Connect Models Fusion Splicing / Mechanical Splicing / FMC
Specifications
Brand Name :
HG or OEM
Model Number :
FTB-102A
Certification :
CE, ROHS, ISO9001
Place of Origin :
China
MOQ :
100pcs
Delivery Time :
5-7 days
Packaging Details :
1pc/Box
name :
FTTH Splitter Box
Material :
PBT
Type :
Distribution Box 1port
Warranty :
5 years
Sampels :
Support
Capacity :
1-4Cores
Description

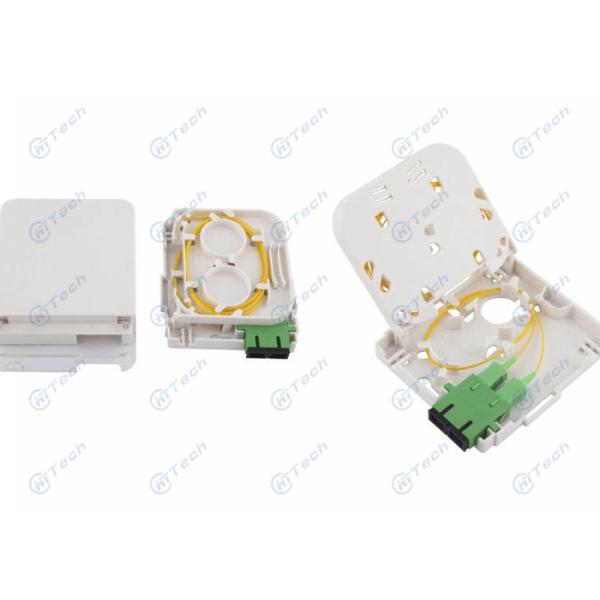

SC/APC 1 Port FTTH Fiber Box 2 Cores Fiber Optic Termination Box

FTB-102A is an indoor terminal applied in the FTTX network to connect the drop cable and
optical devices through fiber port. TB024 covers the capacity of 1core, 2cores and 4 cores
and supports splicing, mechanical connection and FMC, wall mounted installation.

Standards Compliance
. TIA/EIA 568.C, Optical Fiber Cabling Components Standard
. IEC61754, Fiber optic connector interfaces Standard
. ANSI/TIA/EIA-606-A (Administration Standard for Telecommunications Infrastructure. )
. GR-449-CORE (Generic Requirements and Design Consideration for Fiber Distributing Frames. )
. UL 94 (Tests for Flammability of Plastic Material for Parts in Devices and Appliances. )
. RoHS (Directive on Restriction of Hazardous Substances. )

Product Features
. Excellent ergonomics design, graceful appearance and convenience operation.
. White color, graceful style and good adaptability to environment.
. Made of high quality ABS+PC, anti-collision, flame retardant, resistance to impact.
All the materials complied with ROHS standard.
. Fiber cable inlets in every direction, supports the cable inlets for different scenarios.
. Plug fiber without having to open the shell, easily accessible fiber operation,
With rotated transparent cover, port vertically downward to avoid causing personal injury.
. Remarkable laser warning identification.
. With clear introductions, effectively prevent the miss-operation.
. Easy operation, saving installation working hours, lower costs.

Specifications

Working temperature -25~+60°C Storage temperature. -40~+70°C
Humidity 93%(+30°C) Air Pressure 70KPa~106KPa
Size (H×W×D) mm 86×115×23 Weight (kg) 0.1
Color White Material ABS+PC
Capacity (cores) 1,2,4 Connect Models Fusion splicing,
Mechanical Splicing, FMC
Installation Models Wall Mounted Drop cable (Flat) Indoor Flat Drop cable 2mm×3mm
Drop cable (Round) Φ5mm~Φ7mm Curvature Radius(mm) ≥15
