Multi Mode SC-ST Fiber Optic Connector Adapters Plastic Duplex Repeatability 0.2dB
Multi Mode SC-ST Fiber Optic Connector Adapters Plastic Duplex Repeatability 0.2dB
Multi Mode SC-ST Fiber Optic Connector Adapters Plastic Duplex Repeatability 0.2dB
Multi Mode SC-ST Fiber Optic Connector Adapters Plastic Duplex Repeatability 0.2dB
Multi Mode SC-ST Fiber Optic Connector Adapters Plastic Duplex Repeatability 0.2dB
Multi Mode SC-ST Fiber Optic Connector Adapters Plastic Duplex Repeatability 0.2dB
Multi Mode SC-ST Fiber Optic Connector Adapters Plastic Duplex Repeatability 0.2dB
Multi Mode SC-ST Fiber Optic Connector Adapters Plastic Duplex Repeatability 0.2dB
Specifications
Brand Name :
HG or OEM
Model Number :
Plastic SC-ST Duplex Fiber Optic Adapter
Certification :
CE, ROHS
Place of Origin :
China
MOQ :
100pcs
Payment Terms :
L/C, Western Union, MoneyGram, T/T
Delivery Time :
3-5 days
Packaging Details :
25pcs Per Plastic Plant
name :
Plastic SC-ST Duplex Fiber Optic Adapter
Warranty :
10 Years
Color :
Green, blue, Red, gray, Blue /Beige /Green
Type :
Single mode/ Multi-mode
Insertion loss :
IL<0.2db
Test :
100% test before shipping
Sleeve material :
Ceramic
Housing material :
ABS
Description

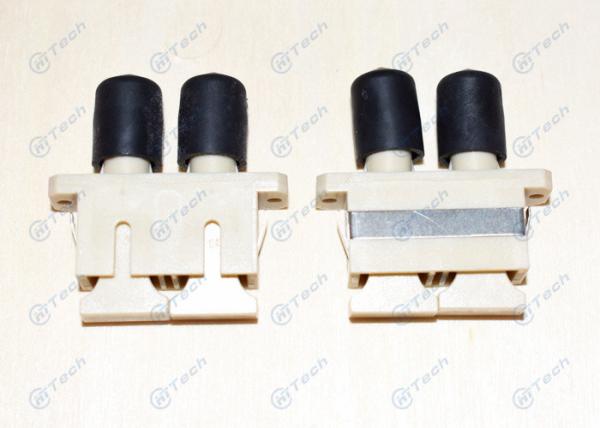

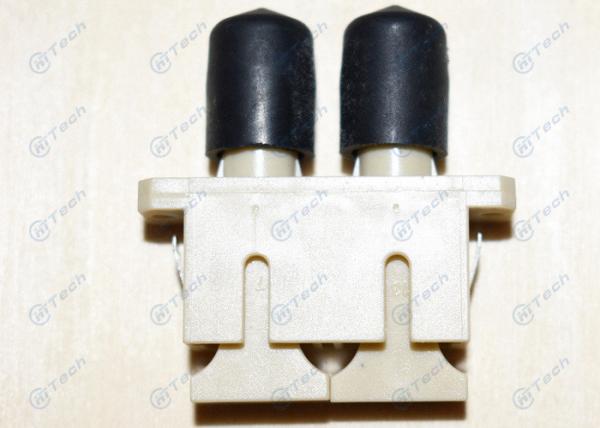

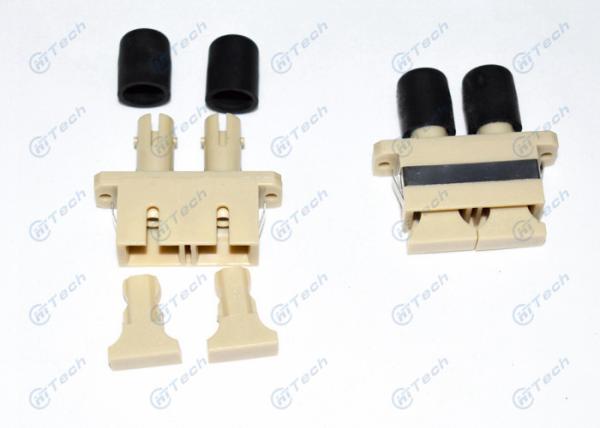

Multi mode ABS Housing Plastic SC-ST Duplex Fiber Optic Adapter

Features
1. Fiber optic adapter SC-ST PC
2. Apply for CATV, LAN, Telecom network, test equipment, SC-ST connectors
3. Multimode or Single Mode, OM3,OM4 available
4. Simplex / Duplex
5. Ceramic sleeve, ABS housing
6. Insertion Loss≤ 0.2dB, Return Loss≥ 45dB (pc), ≥ 60dB (apc)
7. Operating temp.: -40° C~+85° C
8. Standard plugging force: 2~6N
9. Durability > 1000 times
10. Color: Blue (pc/SM), Green (apc), Beige (pc/MM), Acid blue (OM3),Purple(OM4)

Applications

CATV

Telecom network

Optical test equipment

Local area networks

Wide area networks

Data processing Networks

Specifications

Item Insertion Loss

Mechanical

resistance

 Repeatability

Operating

Temperature
SM/PC ≤0.2dB 200-600g 0.1dB(1000times) -40°C~+80°C
SM/APC ≤0.2dB 200-600g 0.1dB(1000times) -40°C­~+80°C
MM/PC ≤0.3dB 200-600g 0.2dB(1000times)

-40°C­~+80°C

Multi Mode SC-ST Fiber Optic Connector Adapters Plastic Duplex Repeatability 0.2dB

Multi Mode SC-ST Fiber Optic Connector Adapters Plastic Duplex Repeatability 0.2dB

Multi Mode SC-ST Fiber Optic Connector Adapters Plastic Duplex Repeatability 0.2dB

Multi Mode SC-ST Fiber Optic Connector Adapters Plastic Duplex Repeatability 0.2dB
