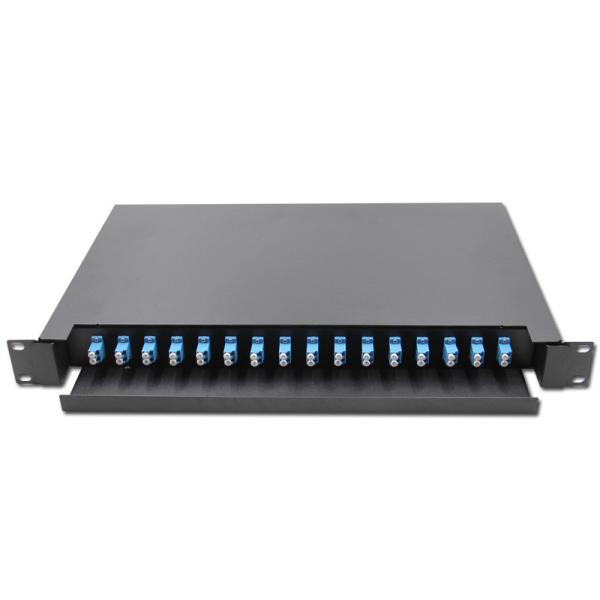

32Core LC Duplex 16 Port Fiber Patch Panel Pull Type Optical Fiber Distribution Frame
32Core LC Duplex 16 Port Fiber Patch Panel Pull Type Optical Fiber Distribution Frame
32Core LC Duplex 16 Port Fiber Patch Panel Pull Type Optical Fiber Distribution Frame
32Core LC Duplex 16 Port Fiber Patch Panel Pull Type Optical Fiber Distribution Frame
32Core LC Duplex 16 Port Fiber Patch Panel Pull Type Optical Fiber Distribution Frame
32Core LC Duplex 16 Port Fiber Patch Panel Pull Type Optical Fiber Distribution Frame
32Core LC Duplex 16 Port Fiber Patch Panel Pull Type Optical Fiber Distribution Frame
32Core LC Duplex 16 Port Fiber Patch Panel Pull Type Optical Fiber Distribution Frame
32Core LC Duplex 16 Port Fiber Patch Panel Pull Type Optical Fiber Distribution Frame
32Core LC Duplex 16 Port Fiber Patch Panel Pull Type Optical Fiber Distribution Frame
Specifications
Brand Name :
SL RELIANCE
Model Number :
SLR-ODF-009
Certification :
CE ROHS
Place of Origin :
GUANGDONG CHINA
MOQ :
100PCS
Price :
Negotiable
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
2000PCS/WEEK
Delivery Time :
2Weeks after payment
Packaging Details :
1PCS/CARTON
Name :
1U 16Port 32Core LC Duplex ODF
Type :
19'' Drawer Pull ype
Connector :
LC Duplex (LC /UPC, LC/APC)
Fiber Count :
32 Fiber
Size :
430*300*1U
Material :
Cold Rolled Steel 1.2mm
Color :
Black, White, Grey
Description

16 Port 32 Core LC Duplex Pull Type Optical Fiber Distribution Frame Rack Mounted

Fiber Optic Teriminal Box body is made of high quality cold-rolled steel material, and the surface of the inferior smooth electrostatic praying processing technology.
Box stack turn the page type structure fusion fiber disc and independent insulated grounding device.
Suitable for being installed in different kinds of optical distribution frame or cabinet.
Fiber guiding hoops on front and rear sides protect fibers from mechanical damage, and are arranged to ensure bending radius protection

Features:

1) Standard size, light weight and reasonable structure
2) Splice tray inside changeable
3) 19-inch standard size, light in weight and robust structure
4) Suitable for ribbon and single fiber
5) Various panel plate to fit different adapter interface
6) Front mark on the plate is easy for identification and operation
7) 24C, 36C, 48C, 96C,144C optional, with or without fiber optic pigtails and adapters
8) Easy for management and operation

Application:


Sliding rack mount patch panel integrates the 3 functions of fiber fusion, storage and distribution.
It's used widely in local end main cable net of fiber optic communication area. And suitable for the FTTB, FTTH system.
Environment
The operating and storage temperature: - 45 ~ + 80 ℃.
Tolerable humidity: <95%.
The voltage resistance between the cable grounding device in the shell and the shell is >3000V(DV), which is tested in 1 minute without breakdown and no flashover.

Name 1U 16Port 32Core LC Duplex Full Loaded ODF
Type Drawer Type
Port No. 16Port
Connector Type LC Duplex
Fiber Count 32 Fiber
Length 430mm
Width 300mm
Height 1U
Plug life more than 1000 times
Material cold rolled sheet
Surface Treatment Electrostatic painting
Structure 19'' Rack Mounted
Work Temperature -40~+85℃

32Core LC Duplex 16 Port Fiber Patch Panel Pull Type Optical Fiber Distribution Frame

32Core LC Duplex 16 Port Fiber Patch Panel Pull Type Optical Fiber Distribution Frame

32Core LC Duplex 16 Port Fiber Patch Panel Pull Type Optical Fiber Distribution Frame

32Core LC Duplex 16 Port Fiber Patch Panel Pull Type Optical Fiber Distribution Frame

32Core LC Duplex 16 Port Fiber Patch Panel Pull Type Optical Fiber Distribution Frame

32Core LC Duplex 16 Port Fiber Patch Panel Pull Type Optical Fiber Distribution Frame32Core LC Duplex 16 Port Fiber Patch Panel Pull Type Optical Fiber Distribution Frame32Core LC Duplex 16 Port Fiber Patch Panel Pull Type Optical Fiber Distribution Frame32Core LC Duplex 16 Port Fiber Patch Panel Pull Type Optical Fiber Distribution Frame
