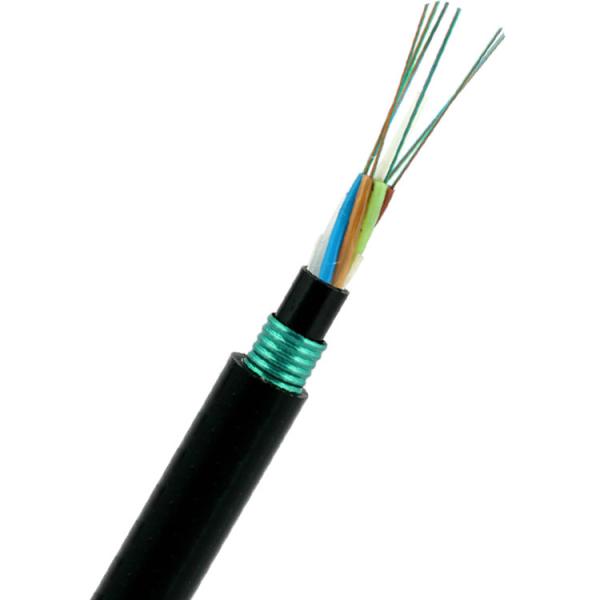

12Cores 2km Direct Buried Fiber Optic Cable GYFTY53 optical fibre underground cable
12Cores 2km Direct Buried Fiber Optic Cable GYFTY53 optical fibre underground cable
12Cores 2km Direct Buried Fiber Optic Cable GYFTY53 optical fibre underground cable
12Cores 2km Direct Buried Fiber Optic Cable GYFTY53 optical fibre underground cable
12Cores 2km Direct Buried Fiber Optic Cable GYFTY53 optical fibre underground cable
12Cores 2km Direct Buried Fiber Optic Cable GYFTY53 optical fibre underground cable
Specifications
Brand Name :
SLR
Model Number :
GYFTY53
Certification :
CE ROHS
Place of Origin :
GUANGDONG CHINA
MOQ :
3KM
Price :
Negotiable
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
300000KM / Day
Delivery Time :
2 Weeks after payment
Packaging Details :
Wooden Drum
Product name :
UG GYFTY53 Fiber Optic Cable
Application :
underground Direct Buried
Number of conductors :
144 cores
Type :
2 4 6 8 12 24 48 96 144 core fiber optic cable
Color :
Black or customize
Jacket :
PE
Cable type :
standard center loose tube GYFTY53 direct buried fiber optic cable
Description

12 Cores UG Underground Direct Burial Fiber Optic Cable GYFTY53

The Underground Direct Buried Fiber Optic Cable GYFTY53 are designed to provide high fiber counts with the flexibility and versatility required for today's most demanding installations, including direct buried. With fiber counts up to 288 and S-Z strand designs.

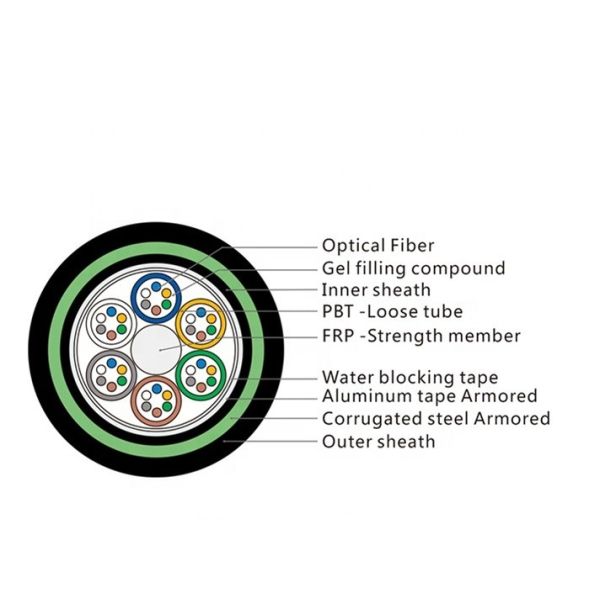

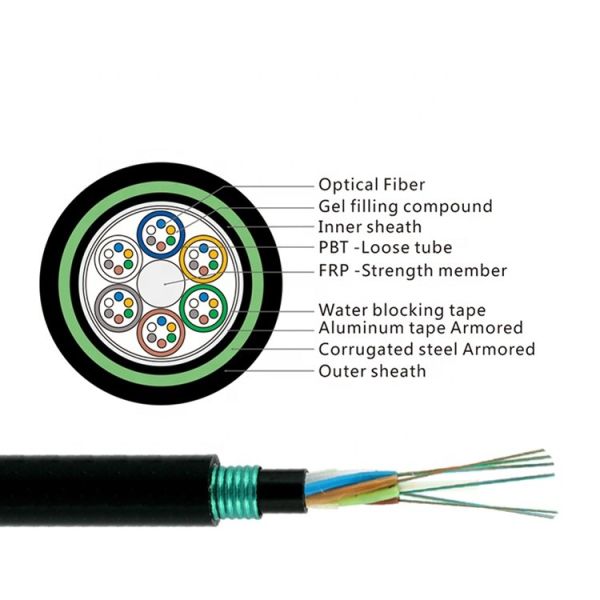

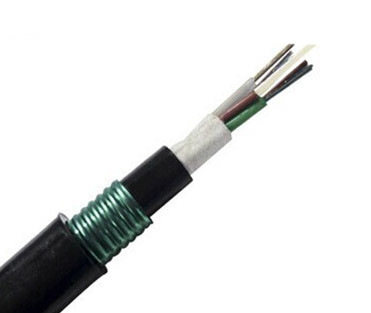

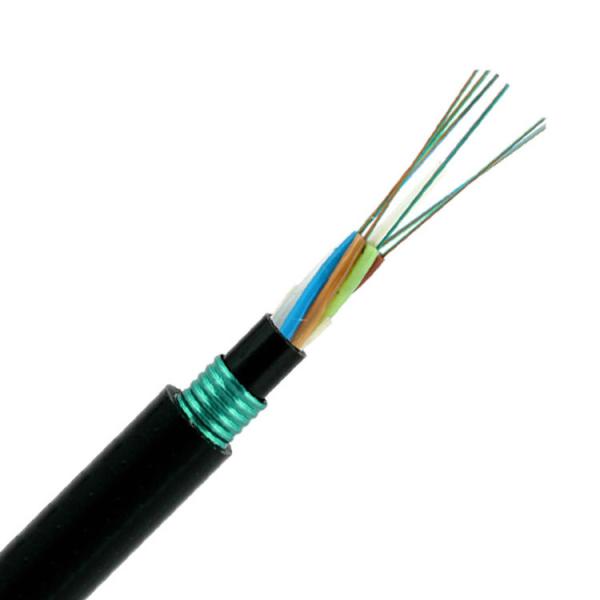

In the GYFTY53 cable, single-mode/multimode fibers are positioned in the loose tubes, the tubes are filled with water blocking filling compound.Tubes and fillers are stranded around the strength member into a circular cable core. Then the cable is completed with a PE sheath.Which is filled with the filling compound to protect it. After PSP is applied over the inner sheath, the cable is completed with a PE outer sheath.

Application:
1. Direct burial
2. Underground
3. Backbone Internet


Characteristics:
Excellent mechanical and temperature performance guaranteed by the accurate excess fiber length
Critical protection to fibers,
Excellent crush resistance and flexibility
The following measures are taken to ensure the water blocking performance of the cable:
- Single steel wire used as the central strength member
- Special water-blocking filling compound in the loose tube.
PSP moisture barrier
- 100% cable core filling and water-blocking material.

Cable type Drum
Height (mm) Width (mm) Inner diameter (mm) Length(km) Drum type
GYFTY53-12 950 760 400 2 Wooden drum
GYFTY53-24 950 760 400 2 Wooden drum
GYFTY53-48 1000 760 400 2 Wooden drum
GYFTY53-96 1150 760 450 2 Wooden drum
GYFTY53-144 1300 760 500 2 Wooden drum

12Cores 2km Direct Buried Fiber Optic Cable GYFTY53 optical fibre underground cable12Cores 2km Direct Buried Fiber Optic Cable GYFTY53 optical fibre underground cable12Cores 2km Direct Buried Fiber Optic Cable GYFTY53 optical fibre underground cable12Cores 2km Direct Buried Fiber Optic Cable GYFTY53 optical fibre underground cable

Model Number GYFTY53
Fiber type G652D
Fiber count 2~144
Loose tube Diameter 1.85mm-2.1mm
Loose tube PBT
Central strength member FRP
Water blocking tape Non-woven fabric
Jacket PE
Cable diameter(Nom.) 12~15mm
Tensile strength 600/1500N
Crush Resistance 300/1000N
Bending Radius 20×Cable Diameter (Dynamic)
10×Cable Diameter (Static)
Operating Temperature -40 ~ +60℃

Cable Sheath Marking
XXXOFC 2021 GYFTY53 XXCORE SM XXXXM
XXXOFC manufacture's brand, (as client order)
2021 manufacture year
GYFTY53 cable type
XXXXM marks for meters

Item Parameter
Fiber-G652D Attenuation Coefficient 1310nm dB/km ≤0.4
1550nm dB/km ≤0.3
Outer jacket Material MDPE
Color Black
Min. bending radius Static 10 times cable diameter
Dynamic 20 times cable diameter
Repeating bending Load:150N;number of cycles:30 No obvious addition attention, no fiber break and no cable damage.
Tensile performance Short term 1500N The addition attention≤0.1dB,fiber strain ≤0.15%
Crush Short term 1000N/100mm The addition attention≤0.1dB
Torsion Load:150N; number of cycles:10; twist angle:±180° No obvious addition attention, no fiber break and no cable damage.
Impact Impact energy:450g×1m; radius of hammer head:12.5mm; number of impact: 5 No obvious addition attention, no fiber break and no cable damage.

12Cores 2km Direct Buried Fiber Optic Cable GYFTY53 optical fibre underground cable

Parameters of single mode fiber :
Items Description
G.652.D G.655
Attenuation (dB/km) 1310nm ≤0.36 ≤0.40
(After cable) 1550nm ≤0.22 ≤0.25
Cable cut-off wavelength (mm) ≤1260 ≤1450
Zero-dispersion wavelength (mm) 1300～1324 ≤1520
Zero-dispersion slope([ps/(nm2·km)]) ≤0.092 ---
Dispersion slope(1550nm) ([ps/(nm2·km)]) --- ≤0.0084
1310nm Mode field diameter (μm) 8.7~9.5 ---
1550nm Mode field diameter (μm) 9.8~10.8 9.1~10.1
Core/Clad concentricity error (μm) ≤0.6 ≤0.6
Cladding diameter ( μm) 125±0.7 125±0.7
Cladding non-circularity (%) ≤1.0 ≤1.0
Primary Coating diameter ( μm) 235～250 235～250
(Before be colored)
Proof test level (kpsi) ≥100 ≥100
Atttenuation with bending loss(dB) @1550nm,25 mm radius, 100 turns ≤0.05 ≤0.05
@1550nm,16 mm radius, 1 turn ≤0.05 ≤0.05

Attenuation and bandwidth of multi mode Optical fiber:
Fiber type 850/1300nm Attenuation(20℃) (After cable) Overfilled Modal Bandwidth Effective Modal Bandwidth Application support distance on (at 850nm)
Typical value Max value 850/1300nm 850nm 40GBASE-SR4 / 100GBASE-SR101 10GBASE-SR 1000BASE-SR
unit dB/Km dB/Km MHz．Km MHz．Km m m m
50/125 3.0/1.0 3.3/1.2 ≥500/500 --- --- --- ---
62.5/125 3.0/1.0 3.3/1.2 ≥200/500 --- --- --- ---
OM2+ 3.0/1.0 3.3/1.2 ≥700/500 ≥950 --- 140 170
OM3 3.0/1.0 3.3/1.2 ≥1500/500 ≥2000 150 300 550
OM4 3.0/1.0 3.3/1.2 ≥3500/500 ≥4700 750 1000 1100

12Cores 2km Direct Buried Fiber Optic Cable GYFTY53 optical fibre underground cable12Cores 2km Direct Buried Fiber Optic Cable GYFTY53 optical fibre underground cable12Cores 2km Direct Buried Fiber Optic Cable GYFTY53 optical fibre underground cable12Cores 2km Direct Buried Fiber Optic Cable GYFTY53 optical fibre underground cable
