Uni Tube GYXTC8S Figure 8 Optical Fiber Cable Self Supporting 12 Cores
Uni Tube GYXTC8S Figure 8 Optical Fiber Cable Self Supporting 12 Cores
Uni Tube GYXTC8S Figure 8 Optical Fiber Cable Self Supporting 12 Cores
Uni Tube GYXTC8S Figure 8 Optical Fiber Cable Self Supporting 12 Cores
Uni Tube GYXTC8S Figure 8 Optical Fiber Cable Self Supporting 12 Cores
Uni Tube GYXTC8S Figure 8 Optical Fiber Cable Self Supporting 12 Cores
Uni Tube GYXTC8S Figure 8 Optical Fiber Cable Self Supporting 12 Cores
Uni Tube GYXTC8S Figure 8 Optical Fiber Cable Self Supporting 12 Cores
Uni Tube GYXTC8S Figure 8 Optical Fiber Cable Self Supporting 12 Cores
Uni Tube GYXTC8S Figure 8 Optical Fiber Cable Self Supporting 12 Cores
Specifications
Brand Name :
SLR
Model Number :
GYXTC8S
Certification :
CE ROHS
Place of Origin :
GUANGDONG CHINA
MOQ :
3KM
Price :
Negotiable
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
300000KM / Day
Delivery Time :
2 Weeks after payment
Packaging Details :
Wooden Drum
Product name :
GYXTC8S Fiber Optic Cable
Application :
Aerial Cable
Number of conductors :
12 cores
Type :
Fig 8 Aerial fiber optic cable
Jacket :
Black PE
Fiber type :
G652D
Strength member :
Steel Wire Strength Member
Description

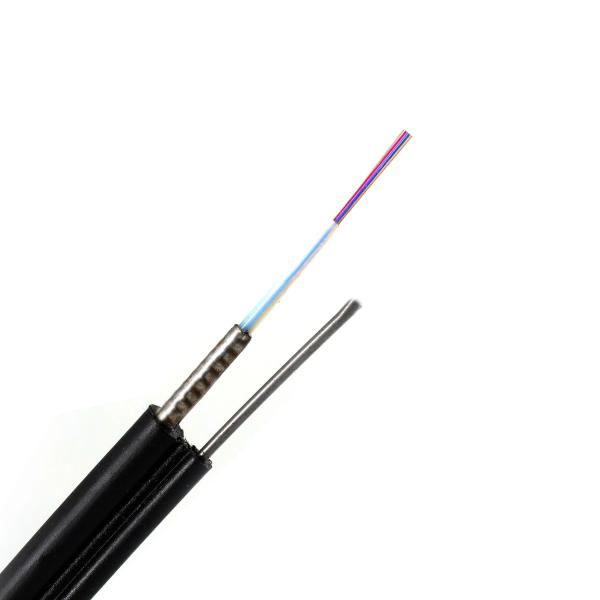

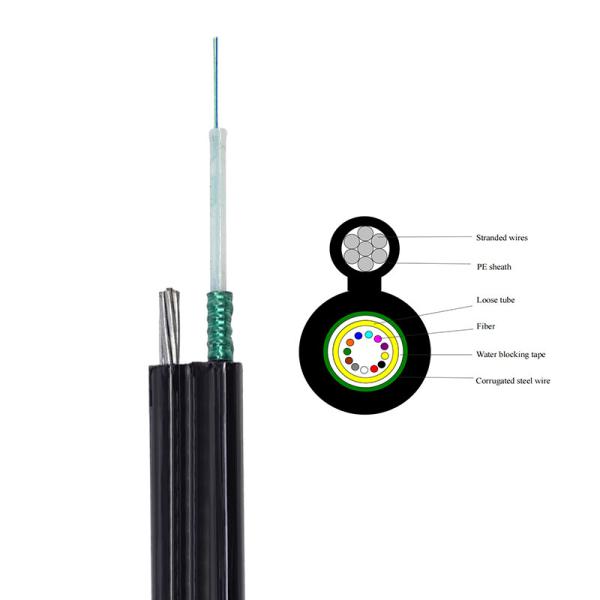

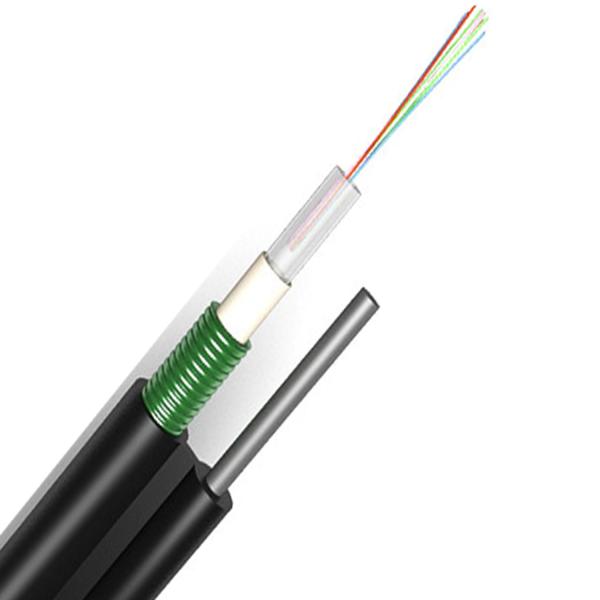

Uni Tube GYXTC8S Self - Supporting Figure 8 Aerial Fiber Optic Cable

GYXTC8S is an outdoor use optical fiber cable suitable for aerial applications.

Self-supported figure 8 optical cable with fibers placed in jelly filled loose buffer tube. The cable core is protected with jelly or waterblocking material to prevent water intrusion and migration, protected with a PSP SteelTape armor. All whole unit and galvanized steel messenger are covered with black polyethylene outer jacket.

Product Characteristics:

• Steel wire have extremely high tensile strength, which is convenient for self-supporting overhead laying and reduces installation costs
• With good mechanical properties and temperature characteristics
• Material of loose tube has good hydrolysis resistance and high strength
• The loose tube is filled with special gel, which protect the optical fiber
• Take the following measures to ensure the waterproof performance of the optical cable
-Single metallic wire center reinforced core
-Filled with special Water-blocking material in loose tube
-Complete cable core filling
- Moisture-proof layer of plastic-coated steel

Fiber Cores Cable Diameter (mm) Cable Net Weight (Kg/km) Min. Bending Radius (mm) Min. Tensile Strength (N) Min. Crush Pressure (N/100mm)
Static State Dynamic State Short Term Long Term Short Term Long Term
2-12 Core 7.6x14.5 120 120 240 3000 1000 1000 300
16-24 Core 8.2x15.1 130 130 260 3000 1000 1000 300
Operating Temperature -40 - +70Degrees

Uni Tube GYXTC8S Figure 8 Optical Fiber Cable Self Supporting 12 CoresUni Tube GYXTC8S Figure 8 Optical Fiber Cable Self Supporting 12 CoresUni Tube GYXTC8S Figure 8 Optical Fiber Cable Self Supporting 12 CoresUni Tube GYXTC8S Figure 8 Optical Fiber Cable Self Supporting 12 CoresUni Tube GYXTC8S Figure 8 Optical Fiber Cable Self Supporting 12 Cores

Uni Tube GYXTC8S Figure 8 Optical Fiber Cable Self Supporting 12 Cores

Cable Sheath Marking
XXXOFC 2021 GYTA53 XXCORE SM XXXXM
XXXOFC manufacture's brand, (as client order)
2021 manufacture year
GYTA53 cable type
XXXXM marks for meters

Item Parameter
Fiber-G652D Attenuation Coefficient 1310nm dB/km ≤0.4
1550nm dB/km ≤0.3
Outer jacket Material MDPE
Color Black
Min. bending radius Static 10 times cable diameter
Dynamic 20 times cable diameter
Repeating bending Load:150N;number of cycles:30 No obvious addition attention, no fiber break and no cable damage.
Tensile performance Short term 1500N The addition attention≤0.1dB,fiber strain ≤0.15%
Crush Short term 1000N/100mm The addition attention≤0.1dB
Torsion Load:150N; number of cycles:10; twist angle:±180° No obvious addition attention, no fiber break and no cable damage.
Impact Impact energy:450g×1m; radius of hammer head:12.5mm; number of impact: 5 No obvious addition attention, no fiber break and no cable damage.

Uni Tube GYXTC8S Figure 8 Optical Fiber Cable Self Supporting 12 Cores

Parameters of single mode fiber :
Items Description
G.652.D G.655
Attenuation (dB/km) 1310nm ≤0.36 ≤0.40
(After cable) 1550nm ≤0.22 ≤0.25
Cable cut-off wavelength (mm) ≤1260 ≤1450
Zero-dispersion wavelength (mm) 1300～1324 ≤1520
Zero-dispersion slope([ps/(nm2·km)]) ≤0.092 ---
Dispersion slope(1550nm) ([ps/(nm2·km)]) --- ≤0.0084
1310nm Mode field diameter (μm) 8.7~9.5 ---
1550nm Mode field diameter (μm) 9.8~10.8 9.1~10.1
Core/Clad concentricity error (μm) ≤0.6 ≤0.6
Cladding diameter ( μm) 125±0.7 125±0.7
Cladding non-circularity (%) ≤1.0 ≤1.0
Primary Coating diameter ( μm) 235～250 235～250
(Before be colored)
Proof test level (kpsi) ≥100 ≥100
Atttenuation with bending loss(dB) @1550nm,25 mm radius, 100 turns ≤0.05 ≤0.05
@1550nm,16 mm radius, 1 turn ≤0.05 ≤0.05

Attenuation and bandwidth of multi mode Optical fiber:
Fiber type 850/1300nm Attenuation(20℃) (After cable) Overfilled Modal Bandwidth Effective Modal Bandwidth Application support distance on (at 850nm)
Typical value Max value 850/1300nm 850nm 40GBASE-SR4 / 100GBASE-SR101 10GBASE-SR 1000BASE-SR
unit dB/Km dB/Km MHz．Km MHz．Km m m m
50/125 3.0/1.0 3.3/1.2 ≥500/500 --- --- --- ---
62.5/125 3.0/1.0 3.3/1.2 ≥200/500 --- --- --- ---
OM2+ 3.0/1.0 3.3/1.2 ≥700/500 ≥950 --- 140 170
OM3 3.0/1.0 3.3/1.2 ≥1500/500 ≥2000 150 300 550
OM4 3.0/1.0 3.3/1.2 ≥3500/500 ≥4700 750 1000 1100

Uni Tube GYXTC8S Figure 8 Optical Fiber Cable Self Supporting 12 CoresUni Tube GYXTC8S Figure 8 Optical Fiber Cable Self Supporting 12 CoresUni Tube GYXTC8S Figure 8 Optical Fiber Cable Self Supporting 12 CoresUni Tube GYXTC8S Figure 8 Optical Fiber Cable Self Supporting 12 Cores
