GYXTW 12 Core Single Mode Armoured Fiber Optic Cable With PBT Loose Tube
GYXTW 12 Core Single Mode Armoured Fiber Optic Cable With PBT Loose Tube
GYXTW 12 Core Single Mode Armoured Fiber Optic Cable With PBT Loose Tube
GYXTW 12 Core Single Mode Armoured Fiber Optic Cable With PBT Loose Tube
GYXTW 12 Core Single Mode Armoured Fiber Optic Cable With PBT Loose Tube
GYXTW 12 Core Single Mode Armoured Fiber Optic Cable With PBT Loose Tube
GYXTW 12 Core Single Mode Armoured Fiber Optic Cable With PBT Loose Tube
GYXTW 12 Core Single Mode Armoured Fiber Optic Cable With PBT Loose Tube
Specifications
Brand Name :
SLR
Model Number :
GYXTW
Certification :
CE ROHS
Place of Origin :
GUANGDONG CHINA
MOQ :
3KM
Price :
Negotiable
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
300000KM / Day
Delivery Time :
2 Weeks after payment
Packaging Details :
Wooden Drum
Product name :
GYXTW Fiber Optic Cable
Application :
Aerial Duct Cable
Number of conductors :
2-24 cores
Jacket :
Black PE
Fiber type :
G652D
Cable type :
Armored
Strength member :
Steel Wire Strength Member
Loose tube :
PBT material
Description

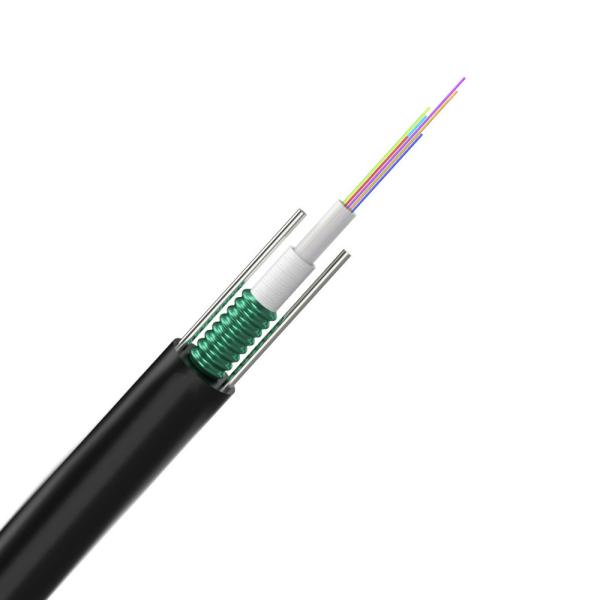

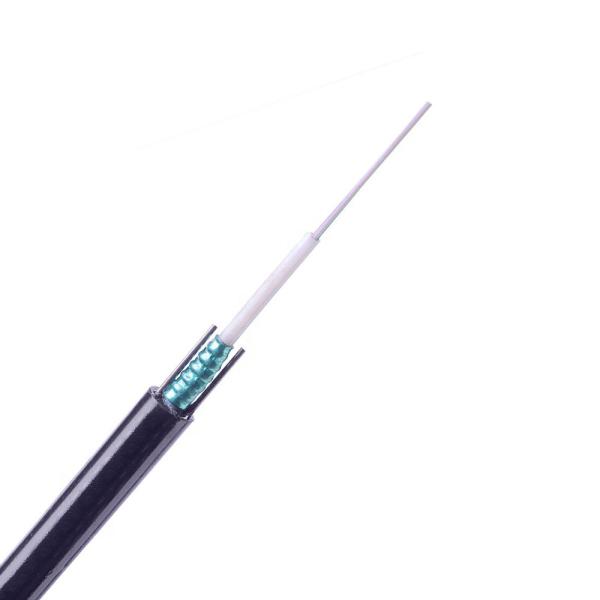

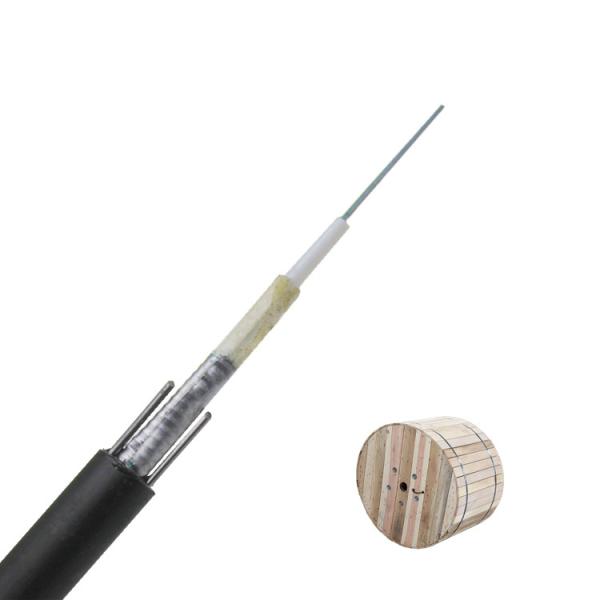

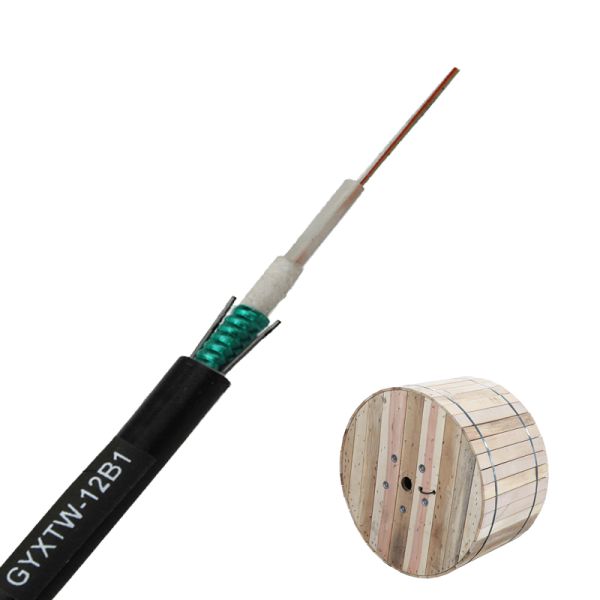

GYXTW Cable Optical Fiber 12 Core Singlemode Outdoor Fiber Optic Cable Duct Cable Armored

GYXTW Outdoor use Light Weight fiber Optic cable .

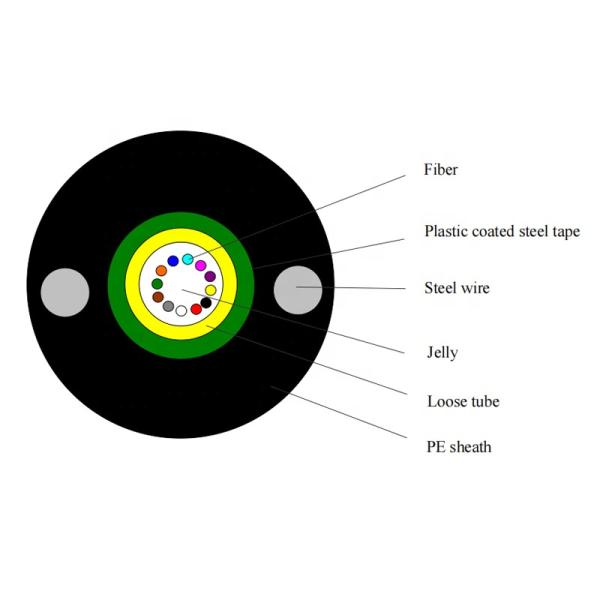

The fibers, single mode or multi mode , are positioned in the Central loose tube . The tubes are filled with a water-resistant filling compound. The PSP is longitudinally applied over the cable core. 2 steel wires works as the metallic strength member. The cable is completed with a PE sheath.


Applications:

Long distance and local area network(LAN) communication.
Aerial & conduit/duct application.

Features:

1. Low dispersion and attenuation.
2. Proper design, precise control for fiber excess length and distinct stranding process render the cable excellent mechanical and environmental properties.
3. The armoring of corrugate steel tape make cable have nice properties of moisture resistance and crush resistance.
4. With small cable diameter, light cable weight

No. of cable 2~8 10~12 14~24
Fiber Model G.652D
Strength Member Material Steel Wire
Diameter(±0.05)mm 0.8/1.0 0.8/1.0 0.8/1.0
Loose Tube Material PBT
Diameter(±0.06)mm 2.1 2.4 2.8
Thickness(±0.03)mm 0.32 0.35 0.4
The Max.Core NO./Tube 8 12 24
Water Blocking layer(Material) Water Blocking Tape
Armoring Material Steel Strip
Thickness(±0.03)mm 0.25
Outer Sheath Material MDPE
Thickness(±0.2)mm 2
Cable Diameter(±0.2)mm 7 7.5 8.5
Cable Weight(±5)kg/km 60 63 68
Min. bending radius Without Tension 10.0×Cable -φ
Temperature range Under Maximum Tension 20.0×Cable -φ
Installation -20~+60
Transport&Storage -40~+70
Operation -40~+70

GYXTW 12 Core Single Mode Armoured Fiber Optic Cable With PBT Loose TubeGYXTW 12 Core Single Mode Armoured Fiber Optic Cable With PBT Loose Tube

GYXTW 12 Core Single Mode Armoured Fiber Optic Cable With PBT Loose Tube

Cable Sheath Marking
XXXOFC 2021 GYXTW XXCORE SM XXXXM
XXXOFC manufacture's brand, (as client order)
2021 manufacture year
GYXTW cable type
XXXXM marks for meters

Item Parameter
Fiber-G652D Attenuation Coefficient 1310nm dB/km ≤0.4
1550nm dB/km ≤0.3
Outer jacket Material MDPE
Color Black
Min. bending radius Static 10 times cable diameter
Dynamic 20 times cable diameter
Repeating bending Load:150N;number of cycles:30 No obvious addition attention, no fiber break and no cable damage.
Tensile performance Short term 1500N The addition attention≤0.1dB,fiber strain ≤0.15%
Crush Short term 1000N/100mm The addition attention≤0.1dB
Torsion Load:150N; number of cycles:10; twist angle:±180° No obvious addition attention, no fiber break and no cable damage.
Impact Impact energy:450g×1m; radius of hammer head:12.5mm; number of impact: 5 No obvious addition attention, no fiber break and no cable damage.

GYXTW 12 Core Single Mode Armoured Fiber Optic Cable With PBT Loose Tube

Parameters of single mode fiber :
Items Description
G.652.D G.655
Attenuation (dB/km) 1310nm ≤0.36 ≤0.40
(After cable) 1550nm ≤0.22 ≤0.25
Cable cut-off wavelength (mm) ≤1260 ≤1450
Zero-dispersion wavelength (mm) 1300～1324 ≤1520
Zero-dispersion slope([ps/(nm2·km)]) ≤0.092 ---
Dispersion slope(1550nm) ([ps/(nm2·km)]) --- ≤0.0084
1310nm Mode field diameter (μm) 8.7~9.5 ---
1550nm Mode field diameter (μm) 9.8~10.8 9.1~10.1
Core/Clad concentricity error (μm) ≤0.6 ≤0.6
Cladding diameter ( μm) 125±0.7 125±0.7
Cladding non-circularity (%) ≤1.0 ≤1.0
Primary Coating diameter ( μm) 235～250 235～250
(Before be colored)
Proof test level (kpsi) ≥100 ≥100
Atttenuation with bending loss(dB) @1550nm,25 mm radius, 100 turns ≤0.05 ≤0.05
@1550nm,16 mm radius, 1 turn ≤0.05 ≤0.05

Attenuation and bandwidth of multi mode Optical fiber:
Fiber type 850/1300nm Attenuation(20℃) (After cable) Overfilled Modal Bandwidth Effective Modal Bandwidth Application support distance on (at 850nm)
Typical value Max value 850/1300nm 850nm 40GBASE-SR4 / 100GBASE-SR101 10GBASE-SR 1000BASE-SR
unit dB/Km dB/Km MHz．Km MHz．Km m m m
50/125 3.0/1.0 3.3/1.2 ≥500/500 --- --- --- ---
62.5/125 3.0/1.0 3.3/1.2 ≥200/500 --- --- --- ---
OM2+ 3.0/1.0 3.3/1.2 ≥700/500 ≥950 --- 140 170
OM3 3.0/1.0 3.3/1.2 ≥1500/500 ≥2000 150 300 550
OM4 3.0/1.0 3.3/1.2 ≥3500/500 ≥4700 750 1000 1100

GYXTW 12 Core Single Mode Armoured Fiber Optic Cable With PBT Loose TubeGYXTW 12 Core Single Mode Armoured Fiber Optic Cable With PBT Loose TubeGYXTW 12 Core Single Mode Armoured Fiber Optic Cable With PBT Loose TubeGYXTW 12 Core Single Mode Armoured Fiber Optic Cable With PBT Loose Tube
