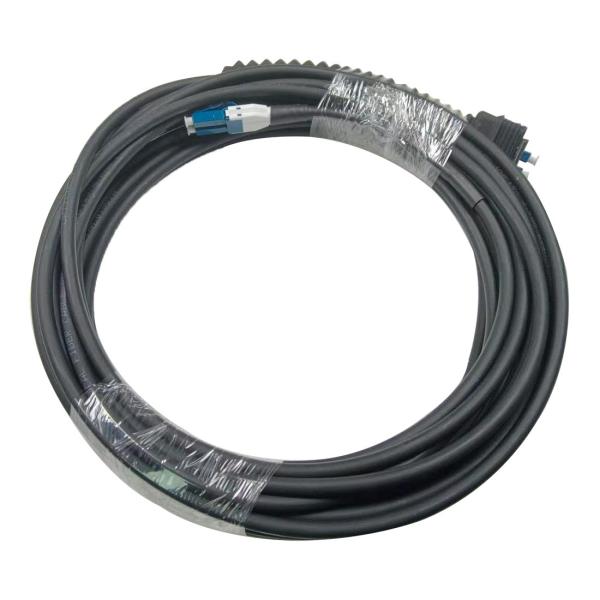

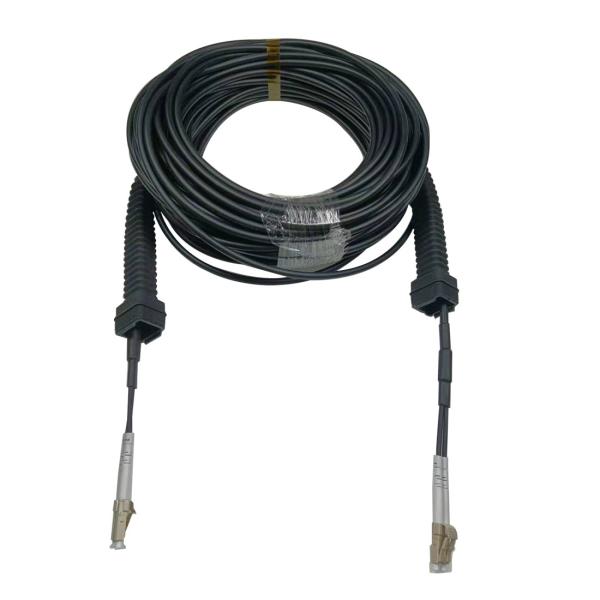

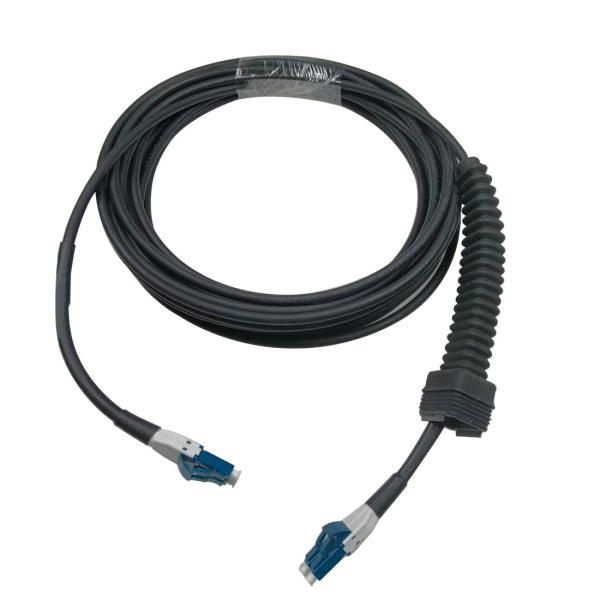

IP67 FTTA Fiber Optic Patch Cord Cable NSN LC Fibre Patch Leads 2 Core
IP67 FTTA Fiber Optic Patch Cord Cable NSN LC Fibre Patch Leads 2 Core
IP67 FTTA Fiber Optic Patch Cord Cable NSN LC Fibre Patch Leads 2 Core
IP67 FTTA Fiber Optic Patch Cord Cable NSN LC Fibre Patch Leads 2 Core
IP67 FTTA Fiber Optic Patch Cord Cable NSN LC Fibre Patch Leads 2 Core
IP67 FTTA Fiber Optic Patch Cord Cable NSN LC Fibre Patch Leads 2 Core
IP67 FTTA Fiber Optic Patch Cord Cable NSN LC Fibre Patch Leads 2 Core
IP67 FTTA Fiber Optic Patch Cord Cable NSN LC Fibre Patch Leads 2 Core
IP67 FTTA Fiber Optic Patch Cord Cable NSN LC Fibre Patch Leads 2 Core
IP67 FTTA Fiber Optic Patch Cord Cable NSN LC Fibre Patch Leads 2 Core
Specifications
Brand Name :
SLR
Model Number :
NSN Boots FTTA Patch cord
Certification :
CE,ROHS
Place of Origin :
GUANGDONG,CHINA
MOQ :
100PCS
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
500PCS/DAY
Delivery Time :
1-2week after payment( based on quantity)
Packaging Details :
PE bag in Carton, e.g. 50m 5.0mm armored is 2KG/pc, 10pcs/CTN/ 40X40X30cm
Name :
NSN LC fibre patch leads
Connectors :
Standard DLC connector
Fiber Mode Type :
SM G652D, SM G657A, or MM 50/125 or MM 62.5/125
No.of Fiber :
2 core
Cable :
GYFJH
Cable Diameter :
5.0mm
Jacket :
PE, LSZH ,TPU Optional
Color :
Black
Length :
10m 20m 30m 50m 100m or customized
Application :
4G 5G base station BBU, RRU, RRH, LTE
Packing :
PE bag in Carton, e.g. 50m 5.0mm armored is 2KG/pc, 10pcs/CTN/ 40X40X30cm
Description

IP67 NSN Duplex Flexible LC 2Core Uniboot BBU RRH LTE CPRI FTTA Fiber Optic Patch Cord Cable

NSN fiber optic connectors for the new generation wireless base stations pulled far (WCDMA/TD-SCDMA/WIMAX/GSM) tailored products that can be meet the FTTA (fiber to the antenna) program requirements for outdoor environment conditions and adverse weather conditions.They are well suited for Industrial and Aerospace and Defense applications.

Application

1. Multi-purpose Outdoor.

2. For connection between distribution box and RRH.

3.Deployment in Remote Radio Head cell tower applications.

Features

1.Easily add/install jumper cables for a future expansion.

2.Low insertion loss and added loss.

3. Height of attenuation.

4. Flexibility with small bending radius and excellent cable routing properties.

5.End-face geometry and quality superior than IEC and Telcordia standards.

6.The material in the jumper cable are all-weather and UV-resistant.

7. IP67 water and dust protection.

8. Mechanical performance: IEC 61754-20 standard. 9.RoHS and REACH materials compliant.

Connector Types

Type Reference Note

LC

IEC 61754-20

Single mode duplex

 APC: Green connectors UPC: Blue connectors
Multimode duplex UPC: Grey Connectors

Dimensional Diagrams

IP67 FTTA Fiber Optic Patch Cord Cable NSN LC Fibre Patch Leads 2 Core

Patch cord versions

Jumper tolerance requirement
Overall length (L) (M) length of tolerance(CM)
0＜L≤20 +10/-0
20＜L≤40 +15/-0
L＞40 +0.5%L/-0

Cable Structure

IP67 FTTA Fiber Optic Patch Cord Cable NSN LC Fibre Patch Leads 2 Core


Cable Parameters

Cable Count

Out sheath Diameter

(MM)

Weight

(KG)

Minimum allowable Tensile Strength

(N)

minimum allowable Crush Load

(N/100mm)

Minimum Bending Radius

(MM)

Storage temperature

(℃)
short term long term short term long term short term long term
2 5.0±0.2 30 800 400 2000 1000 20D 10D -20 ~~ +70

Cable Structure

IP67 FTTA Fiber Optic Patch Cord Cable NSN LC Fibre Patch Leads 2 Core

Cable Parameters

Cable Count

Out sheath Diameter

(MM)

Weight

(KG)

Minimum allowable Tensile Strength

(N)

minimum allowable Crush Load

(N/100mm)

Minimum Bending Radius

(MM)

Storage temperature

(℃)
short term long term short term long term short term long term
2 5.0±0.2 45 400 800 2000 3000 20D 10D -20~~+70

Cable Structure

IP67 FTTA Fiber Optic Patch Cord Cable NSN LC Fibre Patch Leads 2 Core

Cable Parameters

Cable Count

Out sheath Diameter

(MM)

Weight

(KG)

 Minimum allowable Tensile Strength (N)

minimum allowable Crush Load

(N/100mm)

 Minimum Bending Radius (MM)

Storage temperature

(℃)
short term long term short term long term short term long term
2 7.0±0.3 68 600 1000 2000 3000 20D 10D -20~~+70

Cable Structure


IP67 FTTA Fiber Optic Patch Cord Cable NSN LC Fibre Patch Leads 2 Core

Cable Parameters

Cable Count

Out sheath Diameter

(MM)

Weight

(KG)

Minimum allowable Tensile Strength

(N)

Minimum allowable Crush Load

(N/100mm)

Minimum Bending Radius

(MM)

Storage temperature

(℃)
short term long term short term long term short term long term
2 7.0±0.3mm 50 600 1000 1000 2000 20D 10D -20~~+70

Optical Characteristics

Item

 Parameter

Reference
Single mode Multimode
Insertion loss Typical value≤0.15dB;Maximum≤0.30 Typical value≤0.15dB;Maximum≤0.30 IEC 61300-3-34

Return loss

≥ 60dB (APC);

≥ 50dB (UPC)

≥30dB (UPC)

IEC 61300-3-6

End-Face Geometry

Item UPC (Ref: IEC 61755-3-1) APC (Ref: IEC 61755-3-2)
Radius of curvature (mm) 7 to 25 5 to 12
Fiber height (nm) -100 to 100 -100 to 100
Apex offset (μm) 0 to 50 0 to 50
APC angle (°) / 8° ±0.2°
Key error (°) / 0.2° max

End-Face Quality

Zone Range (μm) Scratches Defects Reference
A: Core 0 to 25 None None

IEC 61300-3-35:2015
B: Cladding 25 to 115 None None
C: Adhesive 115 to 135 None None
D: Contact 135 to 250 None None
E: Rest of ferrule None None

End-Face Quality (MM)

Zone Range (μm) Scratches Defects Reference
A: Core 0 to 65 None None

IEC 61300-3-35:2015
B: Cladding 65 to 115 None None
C: Adhesive 115 to 135 None None
D: Contact 135 to 250 None None
E: Rest of ferrule None None

Mechanical Characteristics

Test Conditions Reference
Endurance 500 matings IEC 61300-2-2
Vibration Frequency: 10 to 55Hz, Amplitude: 0.75mm IEC 61300-2-1
Cable retention 400N (main cable); 50N (connector part) IEC 61300-2-4
Strength of coupling mechanism 80N for 2 to 3mm cable IEC 61300-2-6
Cable torsion 15N for 2 to 3mm cable IEC 61300-2-5
Fall 10 drops, 1m drop height IEC 61300-2-12
Static lateral load 1N for 1h (main cable); 0.2N for 5min (ranch part) IEC 61300-2-42
Cold -25°C, 96h duration IEC 61300-2-17
Dry heat +70°C, 96h duration IEC 61300-2-18
Change of temperature -25°C to +70°C, 12 cycles IEC 61300-2-22
Humidity +40°C at 93%, 96h duration IEC 61300-2-19
