GYFXY 1-24 Core Unitube Fiber Optic Cable Non Metallic Non Armored Cable
GYFXY 1-24 Core Unitube Fiber Optic Cable Non Metallic Non Armored Cable
GYFXY 1-24 Core Unitube Fiber Optic Cable Non Metallic Non Armored Cable
GYFXY 1-24 Core Unitube Fiber Optic Cable Non Metallic Non Armored Cable
GYFXY 1-24 Core Unitube Fiber Optic Cable Non Metallic Non Armored Cable
GYFXY 1-24 Core Unitube Fiber Optic Cable Non Metallic Non Armored Cable
GYFXY 1-24 Core Unitube Fiber Optic Cable Non Metallic Non Armored Cable
GYFXY 1-24 Core Unitube Fiber Optic Cable Non Metallic Non Armored Cable
Specifications
Brand Name :
SLFIBER
Model Number :
GYFXY
Certification :
CE ROHS
Place of Origin :
CHINA
MOQ :
3000 METER
Price :
NEGOTIABLE
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Delivery Time :
2 week after payment （ 20GP container）
Packaging Details :
3KM per Export Drum
Cable NAME :
Aerial Fiber Optic Cable
Cable TYPE :
uni-Loose tube GYFXTY
FIBER Number :
12 Fiber
FIBER Type :
G.652D SM
SHEATH :
PE /LSZH
Cable COLOR :
BLACK JACKET OR AS ORDER
Packing :
2-4km/wooden drum
Application :
Telecommunication
Description

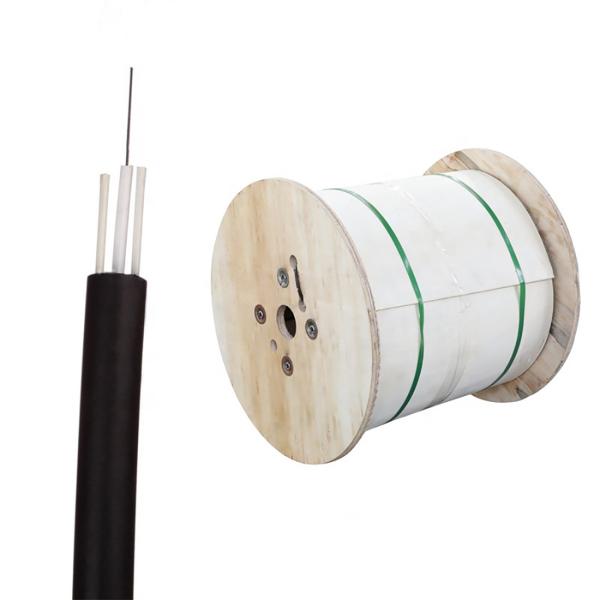

Unitube Non - Metallic Non - Armored Cable GYFXY 1 - 24 Core Fiber Optic Cable

Description:

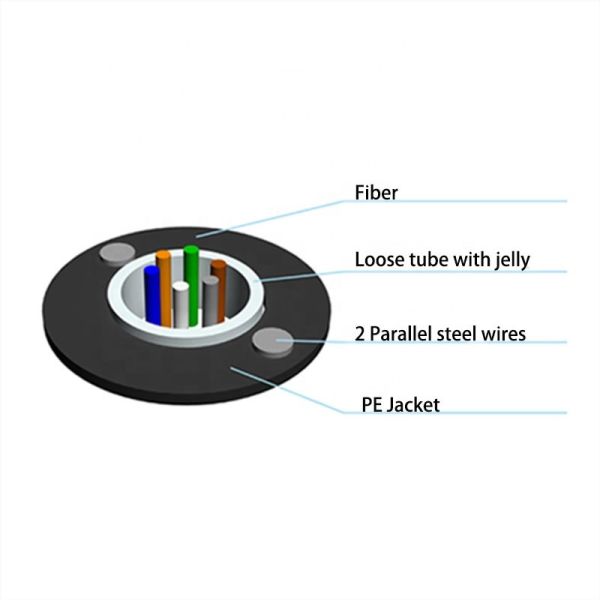

The fibers, 250μm, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. Over the tube. water-blocking material is applied to keep the cable watertight. Two parallel Fiber Reinforced Plastics (FRP) are placed at the two side. The cable is completed with a polyethylene(PE) sheath.

Characteristics:

· Good mechanical and temperature performance
· High strength loose tube that is hydrolysis resistant
· Special tube filling compound ensure a critical protection of fiber
· Two parallel FRPs ensure tensile strength
· PE sheath protects cable from ultraviolet radiation
· Small diameter, light weight and friendly installation
· Long delivery length

Standards:

GYFXY cable complies with Standard YD/T 769-2003.

Structure and Technical Specifications

Item GYXY/GYFXY
Brand name SL
Cable Diameter 5.0mm~8.0mm
Strength Member 2*1.0mm steel wire
Fiber account Nominal Cable Diameter Nominal weight Allowable Tensile Load Allowable Crush Resistance
(KG/KM) (N)
short term long term short term long term
2~12 cores 6.0mm 50 1000 400 1000 800
14~24 cores 7.0mm 65 1200 500 1000 800

Note:
Larger spans can be achieved if necessary with installation sags larger than 1% of span. This datasheet can only be a reference, but not a supplement to the contract. Please contact our sales people for more detailed information.

Fiber color code 1 2 3 4 5 6
Blue Orange Green Brown Slate White
7 8 9 10 11 12
Red Black Yellow Violet Rose Aqua

Loose tube color code 1 2 3 4 5 6
Blue Orange Green Brown Slate White
7 8 9 10 11 12
Red Black Yellow Violet Rose

Aqua

GYFXY 1-24 Core Unitube Fiber Optic Cable Non Metallic Non Armored CableGYFXY 1-24 Core Unitube Fiber Optic Cable Non Metallic Non Armored CableGYFXY 1-24 Core Unitube Fiber Optic Cable Non Metallic Non Armored CableGYFXY 1-24 Core Unitube Fiber Optic Cable Non Metallic Non Armored CableGYFXY 1-24 Core Unitube Fiber Optic Cable Non Metallic Non Armored Cable

OPTICAL FIBER
Fiber Type G.652D
Mode Field Diameter @ 1310 nm 9.2±0.4µm
@1550 nm 10.4±0.8µm
Cladding Diameter 125.0±0.7µm
Core concentricity error ≤ 0.5µm
Cladding non-circularity ≤ 1.0%
Coating diameter 245±10µm
Attenuation @ 1310 nm ≤ 0.36 dB/km
@ 1550 nm ≤ 0.22 dB/km
Dispersion @ 1285 -1330nm ≤ 3.4 ps/(nm.km)
@ 1550 nm ≤17.5 ps/(nm.km)
Zero dispersion wavelength 1300~1324 nm
zero dispersion slope ≤0.092 ps/(nm2.km)
cable cut-off wavelength ≤1260 nm
Proof stress ≥ 0.69 Gpa
Polarization mode dispersion ≤0.2 ps/√Km
Uncabled fiber macrobending loss Radius(mm) 15
number of turns 10
Max.@ 1550nm(dB) 0.25
Max.@ 1625nm(dB)

1

Cable Sheath Marking
XXXOFC 2021 GYFXTY-FL XXCORE (G.652D) XXXXM
XXXOFC manufacture's brand, (as client order)
2021 manufacture year
GYFXTY-FL cable type
XXB1.1(G.652D) XXcores SM fiber(ITU-T rec.G.652D)
XXXXM marks for meters

Q : Why Choose us be one of your partner?
A : 1 ) Quality Assurance
2 ) Quick Response

  • 3 ) Free Sample Available

4 ) Win-Win Price offer

Q : Is OEM accepted?
A : 1 ) LOGO print is ok
2 ) OEM welcomed

Q : What is the method of Shippment?
A : 1 ) By Sea, FCL full container / LCL cargo is ok
2 ) By Air, Any of the International Express, such as DHL/Fedex etc.
3 ) By Railyway or Road Truck

Q : Are You Factory ?
A : Yes, Our cable factory have 13 years production experience.

Our accessories factory also have 6 years production expenrience.

Q: Can I be your agent or distributor ?

A: Agent and Distributor warmly welcomed by win-win strategy.
