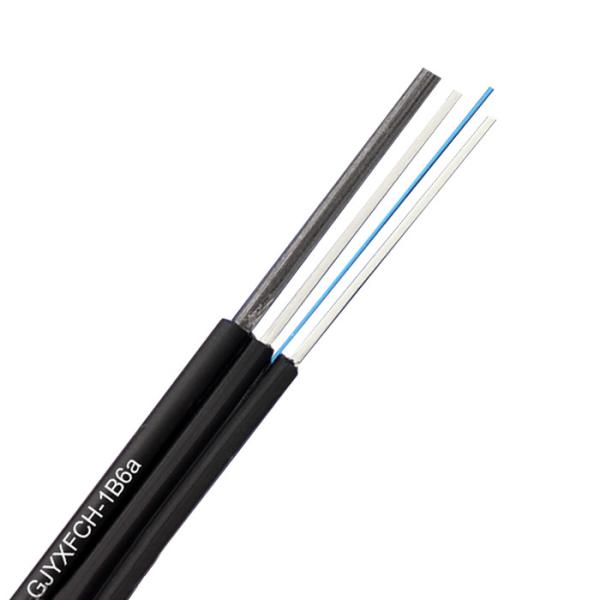

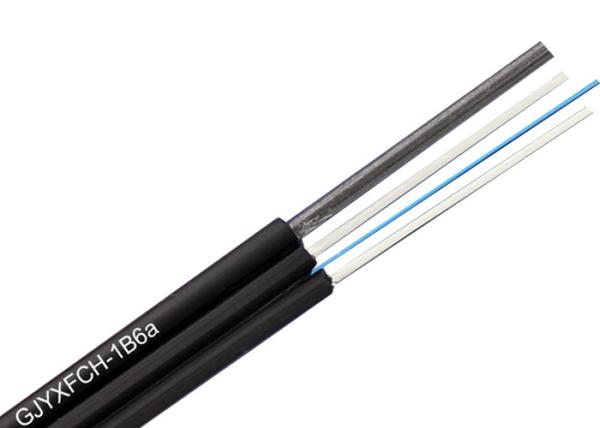

GJYFXCH 1-12 Cores FTTH Drop Fiber Optic Cable
GJYFXCH 1-12 Cores FTTH Drop Fiber Optic Cable
GJYFXCH 1-12 Cores FTTH Drop Fiber Optic Cable
GJYFXCH 1-12 Cores FTTH Drop Fiber Optic Cable
GJYFXCH 1-12 Cores FTTH Drop Fiber Optic Cable
GJYFXCH 1-12 Cores FTTH Drop Fiber Optic Cable
GJYFXCH 1-12 Cores FTTH Drop Fiber Optic Cable
GJYFXCH 1-12 Cores FTTH Drop Fiber Optic Cable
Specifications
Brand Name :
SL RELIANCE
Model Number :
GJYFXCH
Certification :
CE ROHS
Place of Origin :
GUANGDONG CHINA
MOQ :
10KM
Price :
Negotiable
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
600KM/Day
Delivery Time :
2 weeks after payment
Packaging Details :
1KM per Drum, 2KM per Drum
Product Name :
Drop Fiber Optic Cable
TYPE :
Fig 8 FTTH Cable
Model :
GJYFXCH
Fiber Count :
1 to 12 Fiber
Structure :
FO, 2 FRP, 1.0mm steel wire，LSZH JACKET
Diameter :
5.0MM *2.0MM
Fiber type :
G.652D/G.657A1/G.657A2
Jacket :
LSZH
Strength member :
Two parallel FRP/KFRP wire
Supporting Wire :
1.0 mm steel wire
Description

Aerial Self - Support FTTH Drop Cable 1 - 12 Core Fiber Optic Cable SM Drop Wire


Optic fiber drop cable GJYFXCH, with two parallel FRP and 1.0mm self-supporting wire it used as an Aerail self-supporting wire.

FTTH fiber optic drop cable is suitable for Fiber to the Home, which used for linking the equipment and components in the fiber optic network. The fibers is position between two parallel FRP, Then it is self-supported by diameter 1.0mm steel wire. Last this cable is completed with black or white LSZH sheath.


Feature:

1, High tensile of the diameter 1.0mm steel wire meet the requirement of self-supporting and reducing the installation cost.
2, Two parallel FRP strength members ensure good performance of crush resistance to protect the fiber
3, Novel flute design, easily strip and splice, simplify the installation and maintenance
4, Low smoke zero halogen and flame retardant sheath
5, Single mode
6, (2.0±0.2)x(5.0±0.2)mm
7, Compliant with Telcordia GR-326-CORE specification

Application:
• Indoor and outdoor wiring system
• FTTH, terminal system
• Indoor and outdoor shaft,building wiring

Fiber Count 1F 2F 4F / 6F 8F / 12F
Self -Supporting Strength Member Solid Steel Wire/Stranded Steel Wire
1.0mm 1.2mm
Strength Member FRP / KFRP
0.45-0.5mm 0.45-0.5mm 0.45-0.5mm 0.45-0.5mm
Cable Diameter (mm) (2.0±0.1)×(5.0±0.1) (2.8±0.1)×(6.3±0.1)
Cable Weight (KG/KM) 18.5/20 19/20.5 20/21.5 34/34.5
Tensile Strength Short / Long Term (N) 200/100 for Steel wire strengh member
80/40 for KFRP wire strength member
Crush resitance Short / Long Term (N/100mm) 1000/500
Operating Temperature Range (℃) -40~ +70℃
