2 Core G.657A1 FTTH Drop Fiber Optic Cable GJXH Indoor Optical Fiber Cable
2 Core G.657A1 FTTH Drop Fiber Optic Cable GJXH Indoor Optical Fiber Cable
2 Core G.657A1 FTTH Drop Fiber Optic Cable GJXH Indoor Optical Fiber Cable
2 Core G.657A1 FTTH Drop Fiber Optic Cable GJXH Indoor Optical Fiber Cable
2 Core G.657A1 FTTH Drop Fiber Optic Cable GJXH Indoor Optical Fiber Cable
2 Core G.657A1 FTTH Drop Fiber Optic Cable GJXH Indoor Optical Fiber Cable
2 Core G.657A1 FTTH Drop Fiber Optic Cable GJXH Indoor Optical Fiber Cable
2 Core G.657A1 FTTH Drop Fiber Optic Cable GJXH Indoor Optical Fiber Cable
2 Core G.657A1 FTTH Drop Fiber Optic Cable GJXH Indoor Optical Fiber Cable
2 Core G.657A1 FTTH Drop Fiber Optic Cable GJXH Indoor Optical Fiber Cable
Specifications
Brand Name :
SLR
Model Number :
GJXH
Certification :
CE ROHS
Place of Origin :
GUANGDONG CHINA
MOQ :
10KM
Price :
Negotiable
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
600KM/Day
Delivery Time :
2 weeks after payment
Packaging Details :
1KM per Drum, 2KM per Drum
Product Name :
FTTH Fiber Optic Cable
TYPE :
Indoor FTTH Drop Cable
Model :
GJXH
Fiber Count :
2 FO
Structure :
FO, 2 Steel wire , LSZH JACKET
Diameter :
3.0*2.0MM
Fiber Type :
SM , G.657A1
Description

2 Core G.657A1 Indoor FTTH Drop Fiber Optic Cable GJXFH Optical Fiber Cable

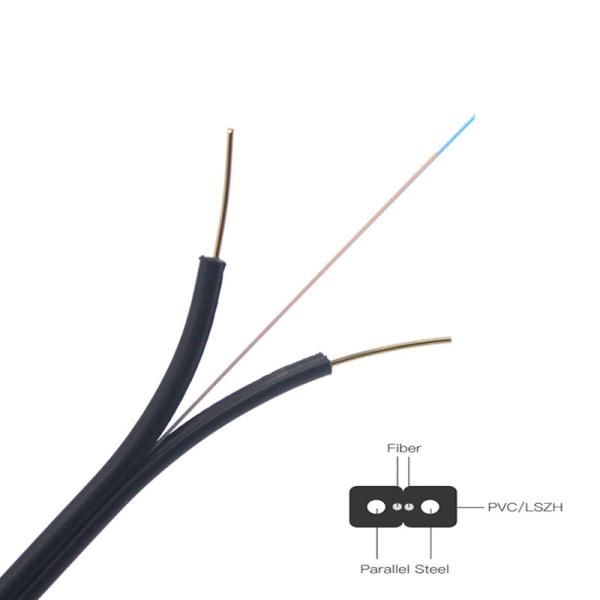

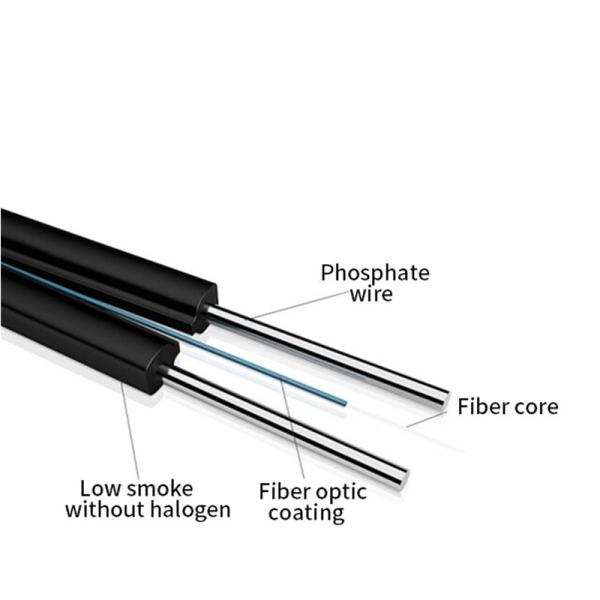

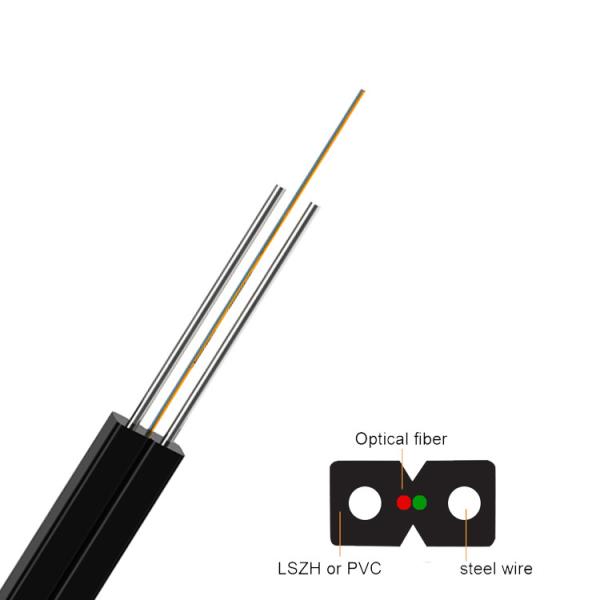

SL FTTH Indoor Drop Cable uses butterfly Bow -Type flat structure, the optical fiber unit is positioned in the center. Two parallel Steel wire strength members are placed at the two sides. Then, the cable iscompleted with LSZH sheath. FTTH indoor cable has a much greater bandwidth to carry data and less susceptible to interference than common indoor fiber cables.

Charateristics:


1. Special low-ebnd-sentsitivity fiber provides high bandwidth and excellent communication transmission properity.
2. Two parallel steel wire ensure good performance of crush resistance to protect the fiber.
3. Simple structure,light weight and high practicability.
4. Novel flue design,easily strip and splice,simplify the installation and maintenance.

Applications:


1. Used for indoor wiring
2. the end user with cable directly
3. Building into the cable

Fiber Count 1F 2F 4F / 6F
Strength Member FRP / KFRP /Solid Steel Wire
0.45-0.5mm 0.45-0.5mm 0.45-0.5mm
Cable Diameter (mm) (2.0±0.1)×(3.0±0.1)
Cable Weight (KG/KM) 7/10 7.5/10.5 8.5/11.5
Tensile Strength Short / Long Term (N) 200/100 for Steel wire strengh member
80/40 for KFRP wire strength member
Crush resitance Short / Long Term (N/100mm) 1000/500
Operating Temperature Range (℃) -40~ +70℃

2 Core G.657A1 FTTH Drop Fiber Optic Cable GJXH Indoor Optical Fiber Cable2 Core G.657A1 FTTH Drop Fiber Optic Cable GJXH Indoor Optical Fiber Cable2 Core G.657A1 FTTH Drop Fiber Optic Cable GJXH Indoor Optical Fiber Cable2 Core G.657A1 FTTH Drop Fiber Optic Cable GJXH Indoor Optical Fiber Cable2 Core G.657A1 FTTH Drop Fiber Optic Cable GJXH Indoor Optical Fiber Cable2 Core G.657A1 FTTH Drop Fiber Optic Cable GJXH Indoor Optical Fiber Cable

2 Core G.657A1 FTTH Drop Fiber Optic Cable GJXH Indoor Optical Fiber Cable

2 Core G.657A1 FTTH Drop Fiber Optic Cable GJXH Indoor Optical Fiber Cable2 Core G.657A1 FTTH Drop Fiber Optic Cable GJXH Indoor Optical Fiber Cable
