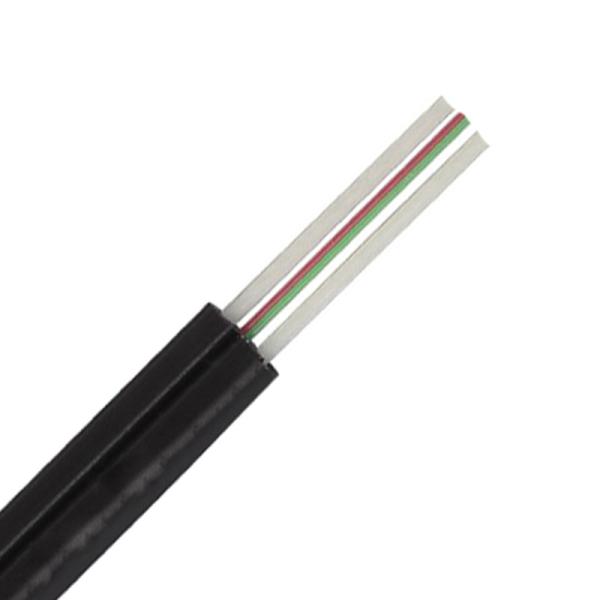

G.657A2 GJXFH Indoor FTTH Drop Cable 4 Core Single Mode Fiber Optic Cable
G.657A2 GJXFH Indoor FTTH Drop Cable 4 Core Single Mode Fiber Optic Cable
G.657A2 GJXFH Indoor FTTH Drop Cable 4 Core Single Mode Fiber Optic Cable
G.657A2 GJXFH Indoor FTTH Drop Cable 4 Core Single Mode Fiber Optic Cable
G.657A2 GJXFH Indoor FTTH Drop Cable 4 Core Single Mode Fiber Optic Cable
G.657A2 GJXFH Indoor FTTH Drop Cable 4 Core Single Mode Fiber Optic Cable
G.657A2 GJXFH Indoor FTTH Drop Cable 4 Core Single Mode Fiber Optic Cable
G.657A2 GJXFH Indoor FTTH Drop Cable 4 Core Single Mode Fiber Optic Cable
Specifications
Brand Name :
SLR
Model Number :
GJXFH
Certification :
CE ROHS
Place of Origin :
GUANGDONG CHINA
MOQ :
10KM
Price :
Negotiable
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
600KM/Day
Delivery Time :
2 weeks after payment
Packaging Details :
1KM per Drum, 2KM per Drum
Product Name :
Indoor / Outdoor Fiber Optic Cable
TYPE :
Indoor FTTH Drop Cable
Model :
GJXFH
Fiber Count :
4 FO. (1 fiber to 12 fiber)
Structure :
FO, 2 RFP , LSZH JACKET
Diameter :
3.0*2.0MM
Fiber Type :
SM , G.657A2
Application :
FTTH
Color :
white/black
Length :
1km or 2km
Description

4 Core Single Mode Fiber Optic Indoor / Outdoor Flat FTTH G.657A2 Drop Cable GJXFH

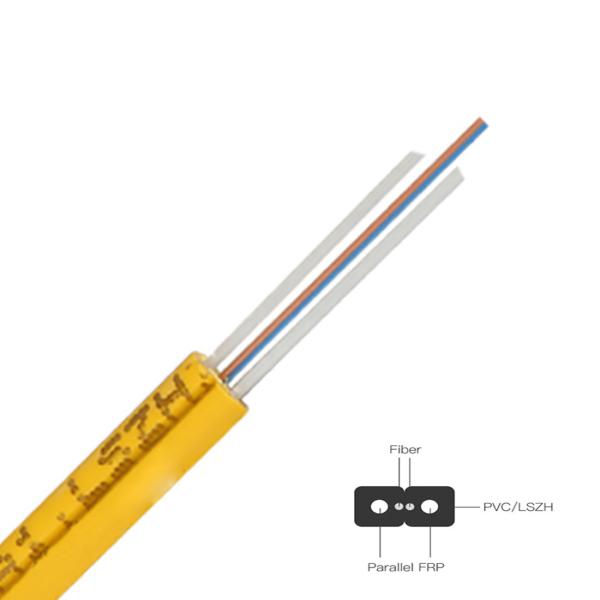

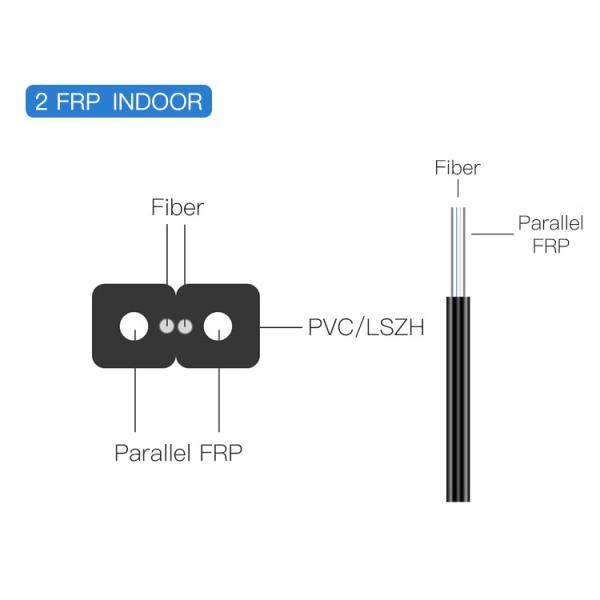

Indoor FTTH drop cable : The fiber optic union is positioned in the centre.Two parallel fiber reinforced plastics(FRP) are placed the two sides.Then,the cable is completed with a black LSZH sheath. It uses butterfly Bow -Type flat structure. FTTH indoor cable has a much greater bandwidth to carry data and less susceptible to interference than common indoor fiber cables. With small diameter, water-resistant, soft and bendable characteristics, it's easy to deploy and maintenance. In addition, the non-metallic strength member can provide lightning
protection and anti-electromagnetic interference. FTTH cables are ideal for indoor cabling.

Charateristics:


1. Special low-ebnd-sentsitivity fiber provides high bandwidth and excellent communication transmission properity.
2. Two parallel FRP ensure good performance of crush resistance to protect the fiber.
3. Simple structure,light weight and high practicability.
4. Novel flue design,easily strip and splice,simplify the installation and maintenance.

Applications:


1. Used for indoor wiring
2. the end user with cable directly
3. Building into the cable

Fiber Count 1F 2F 4F / 6F
Strength Member FRP / KFRP /Solid Steel Wire
0.45-0.5mm 0.45-0.5mm 0.45-0.5mm
Cable Diameter (mm) (2.0±0.1)×(3.0±0.1)
Cable Weight (KG/KM) 7/10 7.5/10.5 8.5/11.5
Tensile Strength Short / Long Term (N) 200/100 for Steel wire strengh member
80/40 for KFRP wire strength member
Crush resitance Short / Long Term (N/100mm) 1000/500
Operating Temperature Range (℃) -40~ +70℃
