Specifications
Brand Name :
SLR
Model Number :
ADSS-12B1.3
Certification :
CE,ROHS
Place of Origin :
GUANGDONG,CHINA
MOQ :
2KM
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
120KM/DAY
Delivery Time :
1-2week after payment( based on quantity)
Packaging Details :
2KM /POLYWOOD DRUM
Fiber Count :
12 FO（24/48/72/96/144/288 optional ）
Structure :
G.652D, PBT, FRP, ARAMID YARN ,PE JACKET
Strength Material :
Kevlar Yarn
Jacket :
PE/AT
Color :
Black
Span :
100m ( or OEM)
Operating Temperature :
-40°C to+70°C
OEM :
Can print Logo on Cable and Drum Sticker
Description

Heavy Duty Single Mode Double Sheath ADSS All Dielectric Self Support Aerial Fiber Optic Cable With Span 100m

ADSS (All-Dielectric Self-Supporting) cable is ideal for installation in distribution as well as transmission environments, even when live-line installations are required.

Span 100m Adss Aerial Fiber Optic CableSpan 100m Adss Aerial Fiber Optic CableSpan 100m Adss Aerial Fiber Optic Cable

Description:

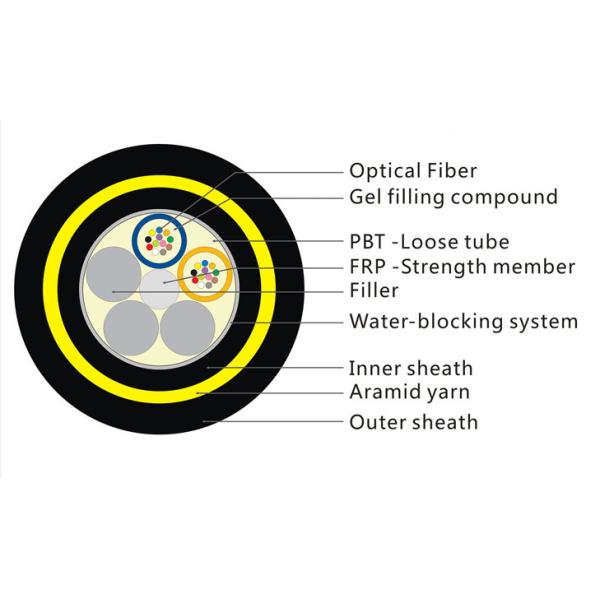

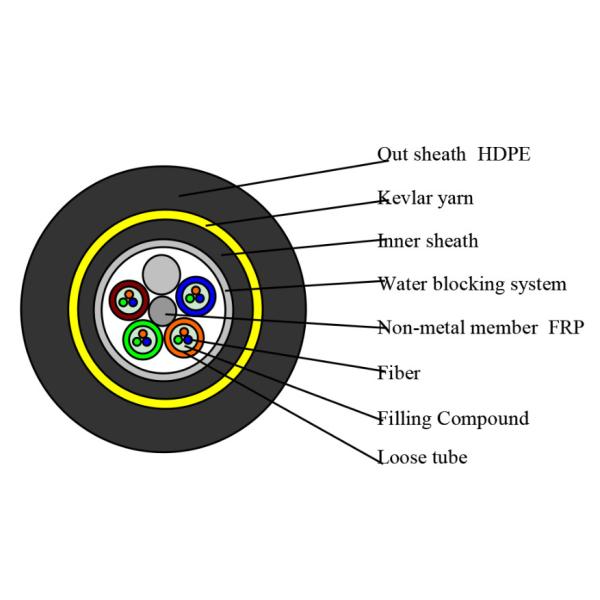

The fibers, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. A Fiber Reinforced Plastic (FRP) locates in the center of core as a non-metallic strength member. The tubes (and fillers) are stranded around the strength member into a compact and circular core. The cable core is filled with filling gel to protect it from water ingress. The kevlar yarn surrounded the cable core as the reinforce strength member, then the cable is completed with a PE sheath.

Features:


Can be installed without shutting off the power.
Excellent AT performance. The maximum inductive at the operating point of AT jacket can reach 25kV.
Light weight and small diameter reducing the load caused by ice and wind and the load on towers and back props.
Large span lengths and the largest span is over 200m.
Good performance of tensile strength and temperature.
The design life span is over 30 years.

Applications :


Aerial

Structure and Technical Specifications ADSS-SJ(50-150M)

Ref. Outer
Diameter
(mm)		 Ref. Weight
(kg/km)

Rec. Daily Max.
Working Tension

(kN)

 Max Allowable
Working Tension
(kN)

Break

Strength

(kN)

Strength

Member

CSA

(mm2)

Modulus of
Elasticity
CSA

(kN/mm2)

Heat

Expansion

Coefficient

(x10- 6/K)

 Suitable Span
(NESC Standard,m)
PE Jacket AT Jacket A B C D
11 110 120 1.0 2.5 8 3.0 6.6 2.1 120 80 100 80
11.5 115 125 1.5 4 10 4.5 7.3 1.8 180 120 150 120
12 120 130 2.5 6 15 7.5 8.3 1.5 250 150 290 150

Structure and Technical Specifications ADSS-DJ(50-750M)

Ref. Outer
Diameter
(mm)		 Ref. Weight
(kg/km)

Rec. Daily Max.
Working Tension

(kN)

 Max Allowable
Working Tension
(kN)

Break

Strength

(kN)

Strength

Member

CSA

(mm2)

Modulus of
Elasticity
CSA

(kN/mm2)

Heat

Expansion

Coefficient

(x10- 6/K)

 Suitable Span
(NESC Standard,m)
PE Jacket AT Jacket A B C D
12.5 125 136 1.5 4 10 4.6 7.6 1.8 160 100 140 100
13.0 132 142 2.25 6 15 7.6 8.3 1.5 230 150 200 150
13.3 137 148 3.0 8 20 10.35 9.45 1.3 300 200 290 200
13.6 145 156 3.6 10 24 13.8 10.8 1.2 370 250 350 250
13.8 147 159 4.5 12 30 14.3 11.8 1.0 420 280 400 280
14.5 164 177 5.4 15 36 18.4 13.6 0.9 480 320 460 320
14.9 171 185 6.75 18 45 22.0 16.4 0.6 570 380 550 380
15.1 179 193 7.95 22 53 26.4 18.0 0.3 670 460 650 460
15.5 190 204 9.0 26 60 32.2 19.1 0.1 750 530 750 510

Span 100m Adss Aerial Fiber Optic CableSpan 100m Adss Aerial Fiber Optic CableSpan 100m Adss Aerial Fiber Optic CableSpan 100m Adss Aerial Fiber Optic Cable
