1 Core FTTH Drop Fiber Optic Cable GJYXCH With Messenger Steel Wire LSZH Jacket
1 Core FTTH Drop Fiber Optic Cable GJYXCH With Messenger Steel Wire LSZH Jacket
1 Core FTTH Drop Fiber Optic Cable GJYXCH With Messenger Steel Wire LSZH Jacket
1 Core FTTH Drop Fiber Optic Cable GJYXCH With Messenger Steel Wire LSZH Jacket
1 Core FTTH Drop Fiber Optic Cable GJYXCH With Messenger Steel Wire LSZH Jacket
1 Core FTTH Drop Fiber Optic Cable GJYXCH With Messenger Steel Wire LSZH Jacket
1 Core FTTH Drop Fiber Optic Cable GJYXCH With Messenger Steel Wire LSZH Jacket
1 Core FTTH Drop Fiber Optic Cable GJYXCH With Messenger Steel Wire LSZH Jacket
1 Core FTTH Drop Fiber Optic Cable GJYXCH With Messenger Steel Wire LSZH Jacket
1 Core FTTH Drop Fiber Optic Cable GJYXCH With Messenger Steel Wire LSZH Jacket
1 Core FTTH Drop Fiber Optic Cable GJYXCH With Messenger Steel Wire LSZH Jacket
1 Core FTTH Drop Fiber Optic Cable GJYXCH With Messenger Steel Wire LSZH Jacket
Specifications
Brand Name :
SLR
Model Number :
GJYXCH
Certification :
CE,ROHS
Place of Origin :
GUANGDONG,CHINA
MOQ :
2KM
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
300KM/DAY
Delivery Time :
1-2week after payment( based on quantity)

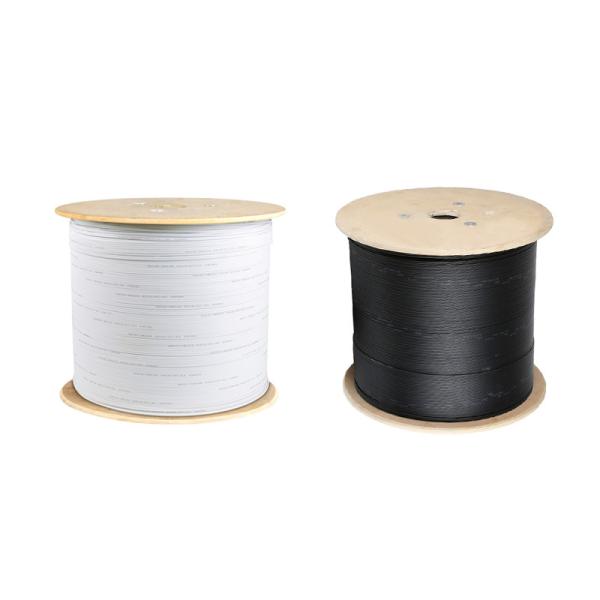

Packaging Details :
1KM /POLYWOOD DRUM
Product Name :
FTTH Drop Fiber Optic Cable
TYPE :
Outdoor Aerial Drop Cable
Fiber Count :
1 FO（1/2/4/8/12 optional ）
Structure :
FO, FRP/STEEL WIRE, LSZH JACKET
Fiber TYPE :
SM , G.657A2
Strength Material :
2 PCS 0.5mm STEEL WIRE
Messenger WIRE :
1.0mm STEEL WIRE
Jacket :
UV and flame resistant LSZH
Cable Diameter Dimensions :
5.0*2.0MM
Color :
Black

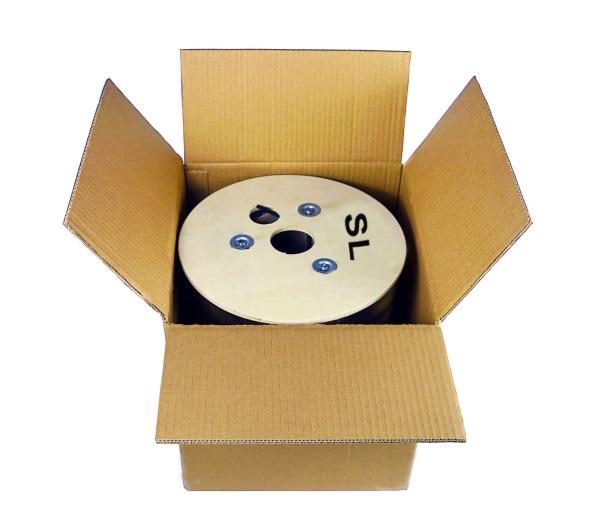

Package :
Polywood Drum ( with test report and sticker)
OEM logo print :
OK on cable and drum sticker
Laying Method :
FTTH/FTTX/FTTA/FTTB/FTTP
Description

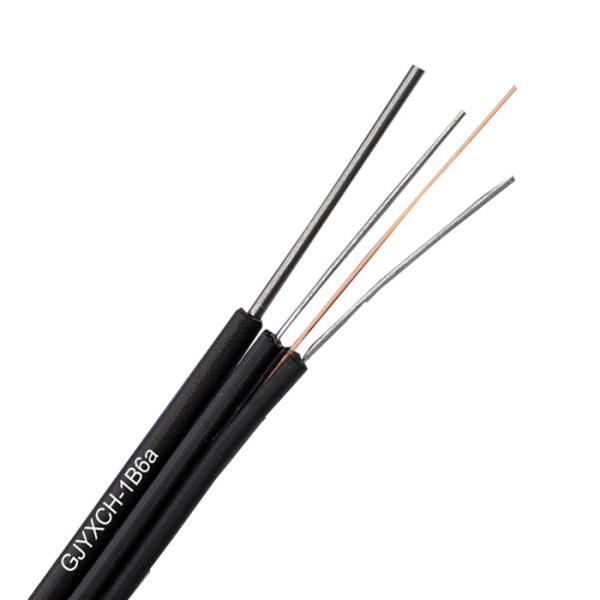

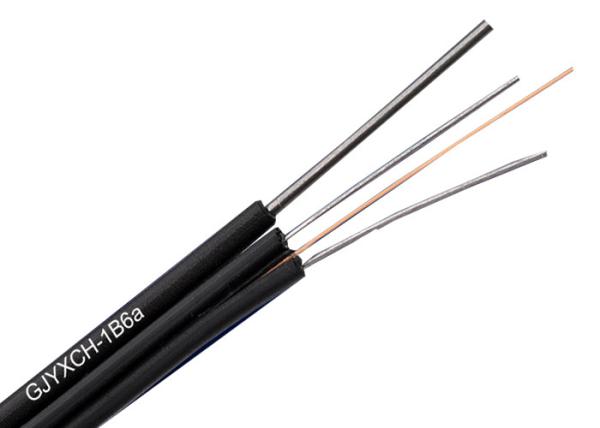

FTTH fiber optic cable is Fiber to the Home, which used for linking the equipment and components in the fiber optic network. The fibers is positioned between two parallel FRP / steel wire. Then it is self-supported by diameter 1.0mm steel wire. Finally this cable is completed with black or white LSZH sheath.

1 Core FTTH Drop Fiber Optic Cable GJYXCH With Messenger Steel Wire LSZH Jacket1 Core FTTH Drop Fiber Optic Cable GJYXCH With Messenger Steel Wire LSZH Jacket
Product Characteristics
• Flex durable fiber to provide greater bandwidth and enhance network transmission characteristics
• Two parallel strength member to protect the fiber and provide adequate tension and pressure
• single metallic strength member makes optical cable having good tensile performance
• Optical cable has simple structure, light weight and strong practicability
• unique groove design, Easy peeled off and splice, simplify the installation and maintenance
• Low smoke halogen-free flame-retardant sheath, pro-environment

Application
• Indoor and outdoor wiring system
• FTTH, terminal system
• Indoor and outdoor shaft,building wiring

Structural Parameter

Model No.Count

Cable Size

(mm)

Weight

(kg/km)

Tension
(N)

Crush

(N/100mm)

Bending Radius Static / dynamic
(mm)
GJYXCH-1Xn1(2.0±0.1)×(5.0±0.1)20300/6001000/220015/30
GJYXCH-2Xn2(2.0±0.1)×(5.0±0.1)20300/6001000/220015/30


Optical Fibre Performance

TypeFiber attenuation(+20℃)OFLBand Width10G Ethernet link lengthMinimum bending radius
Condition1310/1550nm850/1300nm850/1300nm850nm850nm/
Typical valueMAXTypical valueMAX
UnitdB/kmdB/kmdB/kmdB/kmMHZ.kmMHZ.kmmmm
G657A10.36/0.220.5/0.4---------------10
G657A20.36/0.220.5/0.4---------------7.5
OM3------3.0/1.03.5/1.5≥1500/500≥2000≤30030
OM4------3.0/1.03.5/1.5≥3500/500≥4700≤55030







Optical Characteristics

G.652G.65550/125μm62.5/125μm
Attenuation
(+20°C)		@850nm ≤3.5 dB/km≤3.5 dB/km
@1300nm ≤1.5 dB/km≤1.5 dB/km
@1310nm≤0.45 dB/km≤0.50 dB/km
@1550nm≤0.30 dB/km≤0.50dB/km
Bandwidth (Class A)@850nm ≥500 MHz·km≥200 MHz·km
@1300nm ≥1000 MHz·km≥600 MHz·km
Numerical Aperture 0.200±0.015NA0.275±0.015NA
Cable Cut-off Wavelength λcc≤1260nm≤1480nm


Fiber Parameters

No.ItemsUnitSpecification
G.657A1
1Mode Field Diameter1310nmμm9.0±0.4
1550nmμm10.1±0.5
2Cladding Diameterμm124.8±0.7
3Cladding Non-Circularity%≤0.7
4Core-Cladding Concentricity Errorμm≤0.5
5Coating Diameterμm245±5
6Coating Non-Circularity%≤6.0
7Cladding-Coating Concentricity Errorμm≤12.0
8Cable Cutoff Wavelengthnmλcc≤1260
9Attenuation (max.)1310nmdB/km≤0.35
1550nmdB/km≤0.21
10Macro-Bending Loss1turn×10mm
radius @1550nm		dB≤0.75
1turn×10mm
radius@1625nm		dB≤1.5
