2.0mm 3.0mm Pon Fiber Optic Splitter / 1x16 Optical Splitter Lower Loss
2.0mm 3.0mm Pon Fiber Optic Splitter / 1x16 Optical Splitter Lower Loss
2.0mm 3.0mm Pon Fiber Optic Splitter / 1x16 Optical Splitter Lower Loss
2.0mm 3.0mm Pon Fiber Optic Splitter / 1x16 Optical Splitter Lower Loss
2.0mm 3.0mm Pon Fiber Optic Splitter / 1x16 Optical Splitter Lower Loss
2.0mm 3.0mm Pon Fiber Optic Splitter / 1x16 Optical Splitter Lower Loss
Specifications
Brand Name :
SLR
Model Number :
SL-mini PLC-1x16 APC
Certification :
CE ROHS
Place of Origin :
GUANGDONG CHINA
MOQ :
500PCS
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
7000pcs/day
Delivery Time :
8 days after payment
Packaging Details :
Blister or Bag packing
Product Name Name :
1x16 SC APC Mini Fiber PLC Splitter
Goods Type :
Steel Tube PLC Splitter
Model Types :
1xN and 2xN splitter
Parameter :
1x2 (1*4 1*8 1*16 1*64 1*28 2*4 2*8 2*32. also ok)
Fiber Type :
SM , G657A1/G652D/G657A2
Cable Diameter :
250um , 900um 2.0mm 3.0mm
Cable Length :
0.5/1.0/1.5/2.0m,custom-designed
Connector Type :
SC APC
Description

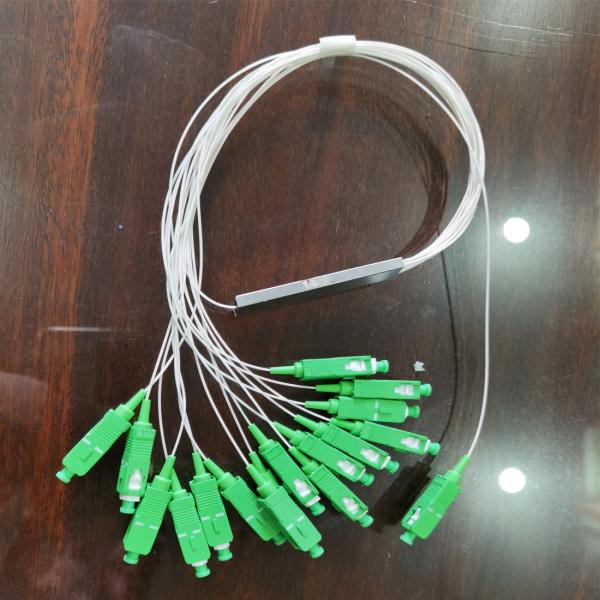

1x16 Fiber Optic Splitter Singlemode 1:16 Fiber Optic PLC Splitter with Mini Steel Tube

The Planar light-wave circuit (PLC) splitter is an optical power management device fabricated by using silica optical waveguide technology. It features a compact size, high reliability and wide operating wavelength range with good channel-to-channel uniformity.

It’s widely used in PON,ODN,FTTX point to connect between termination device and central office to achieve the signal splitter.

PLC Splitter family has 1x2, 1x4, 1x8, 1x16, 1x32, 1x64, 2x2, 2x4, 2x8, 2x16, 2x32,2 x 64 PLC splitter, with specifications that are tailored for different applications and markets. Wide bandwidth, compact size. All products meets, ROHS, GR-1209-CORE-2001 and GR-1221-CORE-1999.

We provides whole series of 1xN and 2xN splitter 2.0mm 3.0mm Pon Fiber Optic Splitter / 1x16 Optical Splitter Lower Lossproducts that are tailored for specific applications.

Specifications:


PLC splitter
1. smaller size
2. lower loss of polarization and insertion
3. good directing fuction
4.s table and reliable.

2.0mm 3.0mm Pon Fiber Optic Splitter / 1x16 Optical Splitter Lower Loss

Application:


• Fiber Optic CATV;
• Fiber to the home (FTTH);
• Passive Optical Networks;
• Fiber communication systems;
• Local Areal Networks (LAN)

Feature:


· Low insertion loss
· Low Polarization Dependent Loss
· Excellent Environmental Stability
· Excellent Mechanical Stability
· Telcordia GR-1221 and GR-1209
· Available in dual/three wavelength operation
· Optional connectors termination upon request
· Available in 250um & 900um fiber, 2mm or 3mm

2.0mm 3.0mm Pon Fiber Optic Splitter / 1x16 Optical Splitter Lower Loss

Parameters Unit Specification (P Grade)
Operating Wavelength (nm) nm 1260~1650
Channel Number 1X2 1X4 1X8 1X16 1X32 1X64
Insertion Loss with Connector (Max) dB 4.1 7.4 10.5 13.8 17.1 20.4
Insertion Loss without Connector (Max) dB 3.8 7.1 10.2 13.5 16.8 20.1
Uniformity (Max) dB 0.6 0.7 0.8 1 1.5 2
PDL dB 0.2 0.2 0.2 0.3 0.3 0.3
Return Loss dB ≥45(PC)；50(UPC)；60(APC)
Directivity dB ≥ 55
Packaging Dimension (LXWXH) mm 60x7x4 60x7x4 60x7x4 60x12x4 80x20x6 100x40x6

Parameters Unit Specification (P Grade)
Operating Wavelength (nm) nm 1260~1650
Channel Number 2X2 2X4 2X8 2X16 2X32 2X64
Insertion Loss with Connector (Max) dB 4.4 7.7 10.8 14.1 17.4 20.6
Insertion Loss without Connector (Max) dB 4.3 7.4 10.5 13.8 17.1 20.3
Uniformity (Max) dB 0.6 0.7 0.8 1 1.5 2
PDL dB 0.2 0.2 0.2 0.3 0.3 0.5
Return Loss dB ≥45(PC)；50(UPC)；60(APC)
Directivity dB ≥ 55
Packaging Dimension (LXWXH) mm 60x7x4 60x7x4 60x7x4 60x12x4 80x20x6 100x40x6

Enviroment Conditions
Operationg Temperature ℃ -40 ~ +85
Operationg Temperature ℃ -40 ~ +85
Operating Humidity %RH ≤ 93
Storage Humidity %RH ≤ 93

Cable Info
Fiber Type G 657A
Pigtail Cable 900 um
Connector SC/APC
2xN Splitter Only Single Chip
