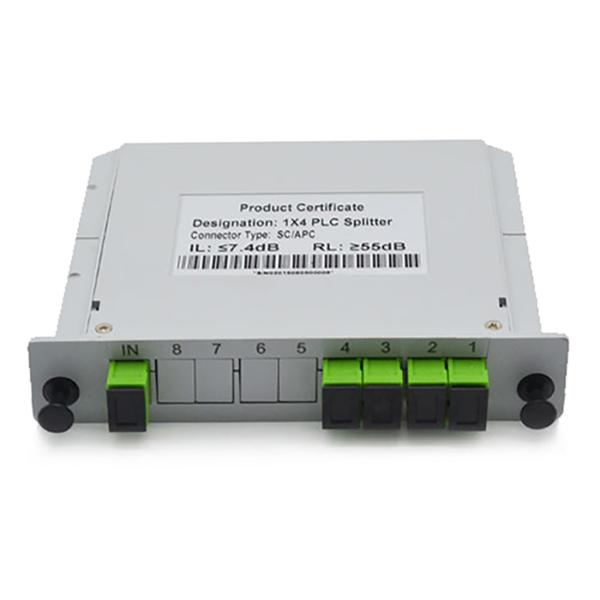

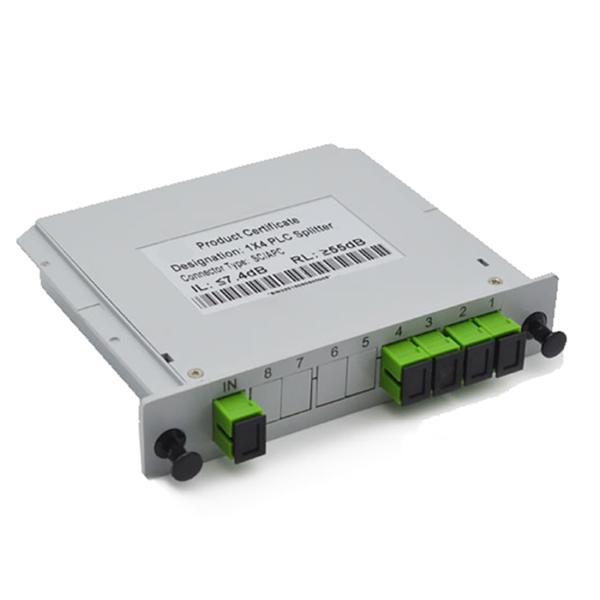

4 WAY FIBER OPTIC MINI CARD PLC SPLITTER PLUG IN CARD CASSETTE SPLITTER LGX BOX

Small Size and Compact Design Usually mounted in the FTTx box for fiber optic signal distribution, saving time and space but still providing reliable protection for fiber optic splitter

Product Details :

- Insert Type High Quality SC/UPC 1X16 Fiber Optic PLC Splitter / Divider ;
- PLC splitters are used to distribute or combine optical signals. It is based on planar lightwave circuit technology and provides
a low cost light distribution solution with small form factor and high reliability.
- 1*N and 2*N all series products can be provided according to the requirements of customer.·.

Mini plug-in PLC splitter is now widely used in FTTx project, especially at the distribution points near the end users of the FTTx networks. It provides fast installation and low space requirement helping to alert the deployment of FTTs projects. Fiber pigtails for input and output can be directly connected with this passive component easily.

PLC Splitter is based on planar lightwave circuit technology. SL 1x32 Fiber PLC Splitter can distribute or combine 1 optical signal into 16 outputs fibers.

1x32 Fiber PLC Splitter in Mini plug-in Type, G.657A Fiber, FC, SC, ST & LC connectors for choice, is specialized for plug and play splitter application, features high reliability, reduce installation time,small size, wide operating wavelength range and good channel-to-channel uniformity and provide a cost effective and space saving product suitable to the ever changing networking requirements, and now is widely used in PON networks to realize optical signal power splitting.

Application:

• Fiber Optic CATV;
• Fiber to the home (FTTH);
• Passive Optical Networks;
• Fiber communication systems;
• Local Areal Networks (LAN)

Feature:

· Low insertion loss
· Low Polarization Dependent Loss
· Excellent Environmental Stability
· Excellent Mechanical Stability
· Telcordia GR-1221 and GR-1209
· Available in dual/three wavelength operation
· Optional connectors termination upon request
· Available in 250um & 900um fiber, 2mm or 3mm
