All Dielectric 2-288core Direct Buried Fiber Optic Cable Multi Loose Tube
All Dielectric 2-288core Direct Buried Fiber Optic Cable Multi Loose Tube
All Dielectric 2-288core Direct Buried Fiber Optic Cable Multi Loose Tube
All Dielectric 2-288core Direct Buried Fiber Optic Cable Multi Loose Tube
All Dielectric 2-288core Direct Buried Fiber Optic Cable Multi Loose Tube
All Dielectric 2-288core Direct Buried Fiber Optic Cable Multi Loose Tube
All Dielectric 2-288core Direct Buried Fiber Optic Cable Multi Loose Tube
All Dielectric 2-288core Direct Buried Fiber Optic Cable Multi Loose Tube
Specifications
Brand Name :
SL FIBER
Model Number :
GYFTY
Certification :
CE ROHS
Place of Origin :
GUANGDONG CHINA
MOQ :
3KM
Price :
Negotiable
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
300000KM / Day
Delivery Time :
2 Weeks after payment
Packaging Details :
Wooden Drum
Product name :
GYFTY Non Armored Outdoor Fiber Optic Cable
Application :
Outdoor Aerial Duct Pipeline
Fiber count :
2-288 core
Cable type :
Armored
Package :
2km/roll
Loose tube :
Loose tube Stranded.SZ stranged
Oem :
Available
Structure :
SZ Stranded loose tube
Description

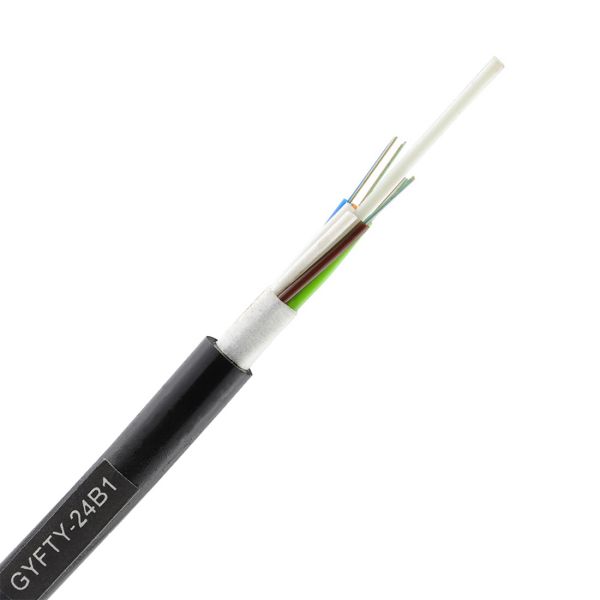

Outdoor Fiber Optic Cable All Dielectric GYFTY FRP Strength Member Multi Tube Cable

GYFTY Single Jacket None Metallic optical fiber cable are designed to provide high fiber counts with the flexibility and versatility required for today's most demanding installations, including duct and underground conduit.

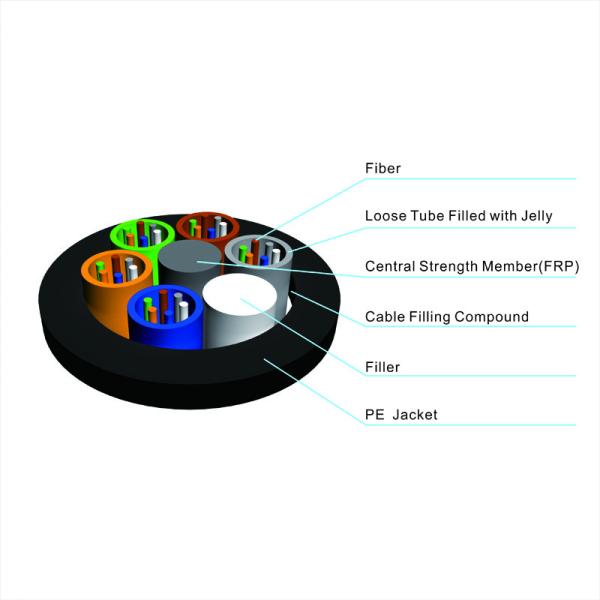

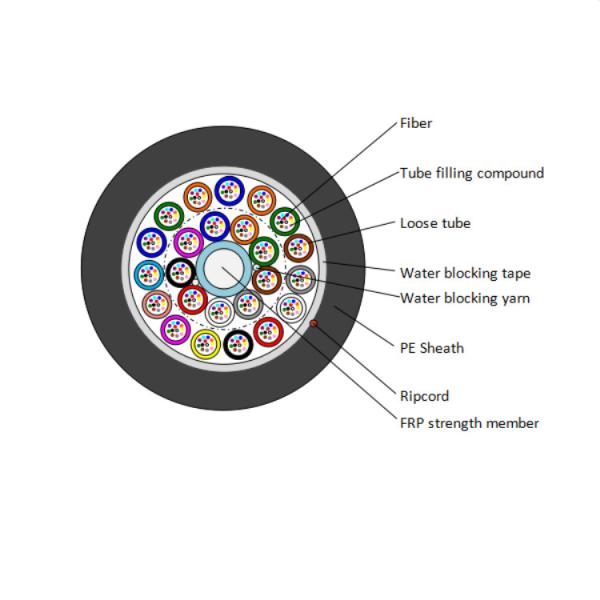

Cable structure:
Optical fibres are housed in loose tubes that are made of high-modulus plastic and filled with tube filling compound. The tubes (and fillers) are stranded around the central strength member FRP to form a cable core.The core is covered by water blocking tape.Then, a PE outer sheath is extruded.

Fiber:
2-288 fiber
Multi-loose tube gel-filled

Central Strength Member:
Fiberglass reinforced Platic (FRP).

Outer Jacket:

Black UV Polyethylene(PE)

Application :
1: Aerial Installation
2: Duct Installation
3:Pipe Line Installation

Model Number GYFTY
Fiber type G652D
Fiber count 2~144
Loose tube Diameter 1.85mm-2.1mm
Loose tube PBT
Central strength member FRP
Water blocking tape Non-woven fabric
Jacket PE
Cable diameter(Nom.) 9.0-10.5mm
Tensile strength 600/1500N
Crush Resistance 300/1000N
Bending Radius 20×Cable Diameter (Dynamic)
10×Cable Diameter (Static)
Operating Temperature -40 ~ +60℃

All Dielectric 2-288core Direct Buried Fiber Optic Cable Multi Loose TubeAll Dielectric 2-288core Direct Buried Fiber Optic Cable Multi Loose TubeAll Dielectric 2-288core Direct Buried Fiber Optic Cable Multi Loose TubeAll Dielectric 2-288core Direct Buried Fiber Optic Cable Multi Loose TubeAll Dielectric 2-288core Direct Buried Fiber Optic Cable Multi Loose TubeAll Dielectric 2-288core Direct Buried Fiber Optic Cable Multi Loose Tube

Cable Sheath Marking
XXXOFC 2021 GYFTY XXCORE SM XXXXM
XXXOFC manufacture's brand, (as client order)
2021 manufacture year
GYFTY cable type
XXXXM marks for meters

Item Parameter
Fiber-G652D Attenuation Coefficient 1310nm dB/km ≤0.4
1550nm dB/km ≤0.3
Outer jacket Material MDPE
Color Black
Min. bending radius Static 10 times cable diameter
Dynamic 20 times cable diameter
Repeating bending Load:150N;number of cycles:30 No obvious addition attention, no fiber break and no cable damage.
Tensile performance Short term 1500N The addition attention≤0.1dB,fiber strain ≤0.15%
Crush Short term 1000N/100mm The addition attention≤0.1dB
Torsion Load:150N; number of cycles:10; twist angle:±180° No obvious addition attention, no fiber break and no cable damage.
Impact Impact energy:450g×1m; radius of hammer head:12.5mm; number of impact: 5 No obvious addition attention, no fiber break and no cable damage.

All Dielectric 2-288core Direct Buried Fiber Optic Cable Multi Loose Tube

Parameters of single mode fiber :
Items Description
G.652.D G.655
Attenuation (dB/km) 1310nm ≤0.36 ≤0.40
(After cable) 1550nm ≤0.22 ≤0.25
Cable cut-off wavelength (mm) ≤1260 ≤1450
Zero-dispersion wavelength (mm) 1300～1324 ≤1520
Zero-dispersion slope([ps/(nm2·km)]) ≤0.092 ---
Dispersion slope(1550nm) ([ps/(nm2·km)]) --- ≤0.0084
1310nm Mode field diameter (μm) 8.7~9.5 ---
1550nm Mode field diameter (μm) 9.8~10.8 9.1~10.1
Core/Clad concentricity error (μm) ≤0.6 ≤0.6
Cladding diameter ( μm) 125±0.7 125±0.7
Cladding non-circularity (%) ≤1.0 ≤1.0
Primary Coating diameter ( μm) 235～250 235～250
(Before be colored)
Proof test level (kpsi) ≥100 ≥100
Atttenuation with bending loss(dB) @1550nm,25 mm radius, 100 turns ≤0.05 ≤0.05
@1550nm,16 mm radius, 1 turn ≤0.05 ≤0.05

Attenuation and bandwidth of multi mode Optical fiber:
Fiber type 850/1300nm Attenuation(20℃) (After cable) Overfilled Modal Bandwidth Effective Modal Bandwidth Application support distance on (at 850nm)
Typical value Max value 850/1300nm 850nm 40GBASE-SR4 / 100GBASE-SR101 10GBASE-SR 1000BASE-SR
unit dB/Km dB/Km MHz．Km MHz．Km m m m
50/125 3.0/1.0 3.3/1.2 ≥500/500 --- --- --- ---
62.5/125 3.0/1.0 3.3/1.2 ≥200/500 --- --- --- ---
OM2+ 3.0/1.0 3.3/1.2 ≥700/500 ≥950 --- 140 170
OM3 3.0/1.0 3.3/1.2 ≥1500/500 ≥2000 150 300 550
OM4 3.0/1.0 3.3/1.2 ≥3500/500 ≥4700 750 1000 1100

All Dielectric 2-288core Direct Buried Fiber Optic Cable Multi Loose TubeAll Dielectric 2-288core Direct Buried Fiber Optic Cable Multi Loose TubeAll Dielectric 2-288core Direct Buried Fiber Optic Cable Multi Loose TubeAll Dielectric 2-288core Direct Buried Fiber Optic Cable Multi Loose Tube
