LSZH 2KM OM3 50/125 Multimode Fiber Optic Breakout Cable
LSZH 2KM OM3 50/125 Multimode Fiber Optic Breakout Cable
LSZH 2KM OM3 50/125 Multimode Fiber Optic Breakout Cable
LSZH 2KM OM3 50/125 Multimode Fiber Optic Breakout Cable
LSZH 2KM OM3 50/125 Multimode Fiber Optic Breakout Cable
LSZH 2KM OM3 50/125 Multimode Fiber Optic Breakout Cable
Specifications
Brand Name :
UNIFIBER-OEM
Model Number :
GJFPV
Certification :
ROHS,CE,UL
Place of Origin :
CHINA
MOQ :
1KM
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
100000KM/month
Delivery Time :
3-5days
Packaging Details :

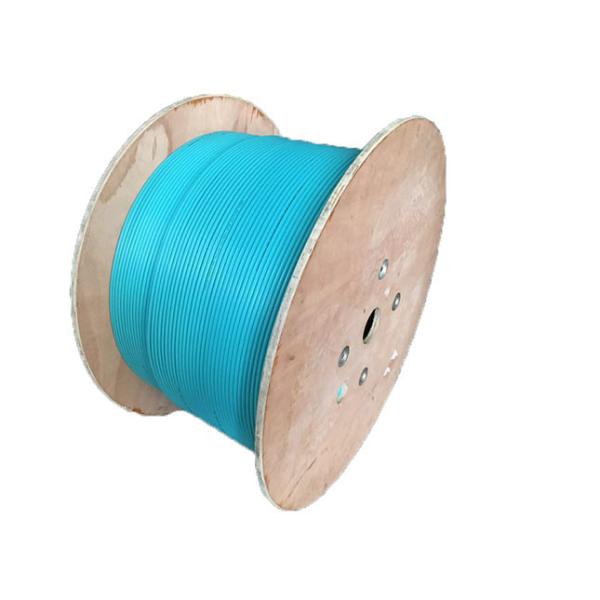

Wooden drum.
Fiber counts :
4 6 8 16 24 32 cores
Fiber mode :
SM/MM/OM3/OM4
Cable structure :
Multi core break-out
Cable Jacket :
PVC or LSZH
Color :
Yellow,Orange,Blue,red or Custom
Package :
Plywood Reel/Plastic Reel
Description

OM3 50/125 Multimode Fiber Breakout Cable 6 8 12 24 Fiber LSZH 2KM per roller

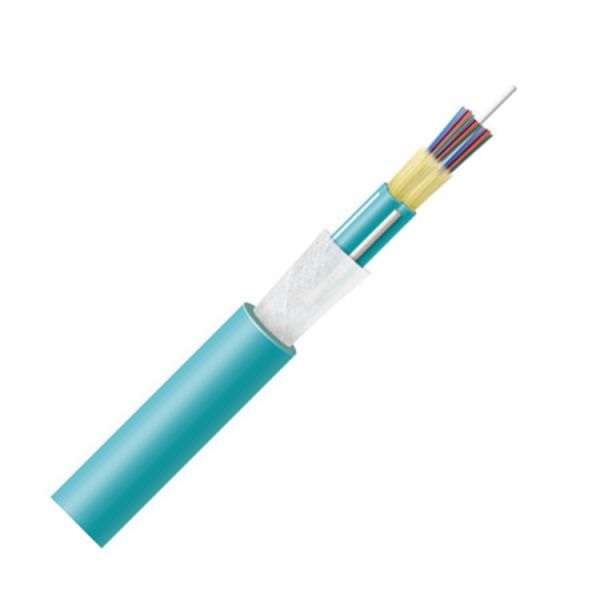

Breakout Cable has individual subcables within a primary outer cable sheath, and each fiber has its own aramid strength member for connector tie-off. It's the easiest fiber cable to install where direct termination of connectors to sub-units and direct run to panels and equipment is desired.

Application:

Central Office
Indoor Any Purpose Cable Distribution
Used in indoor cabling, especially used as breakout cable;
Used as access building cable;

Used in pigtails and patch cords.

Features:

Connects directly to small form factor connectors, like the LC
Worry-free installation and performance
Riser (OFNR) rated designs
Fire-rated cables allow placement in riser spaces
2.0 mm simplex interconnect subunits
Stranded non-metallic strength member structure ensures the cable endure larger tensile strength
The jacket anti-corrosion; anti-water; anti-ultraviolet radiation; flame-retardant and harmless to environment

Cable Type
Indoor fibre breakout optical cable
Sheath
Riser (OFNR) LSZH
Out Sheath Diameter
7.0mm
Strength Member Material
Steel Wire
Tensile Strength (long/short term)
600/1500N
Bending Radius (long/short term)
10D/20D(mm)
Fiber Count
4 8 16 24 32 cores
Fiber Type
single-mode, multi-mode
Subcable Diameter
2.0mm
Weight
45kg/km
Crush Load (long/short term)
300/1000 (N/100mm)
Operating /Storage Temperature
-20 to +60°C
LSZH 2KM OM3 50/125 Multimode Fiber Optic Breakout CableLSZH 2KM OM3 50/125 Multimode Fiber Optic Breakout Cable
