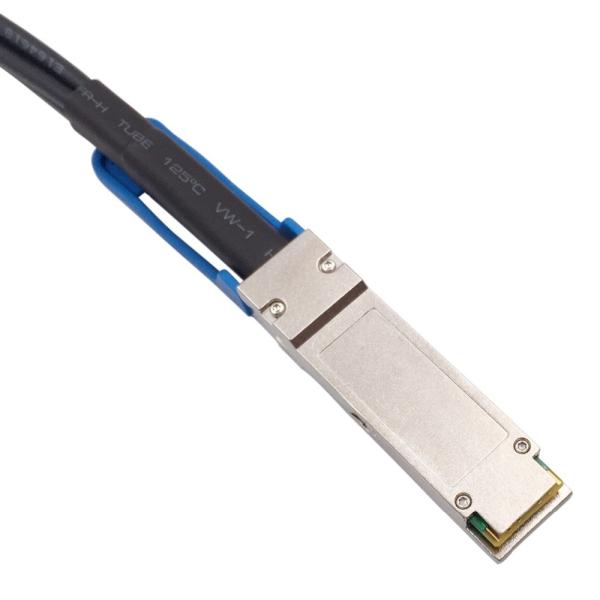

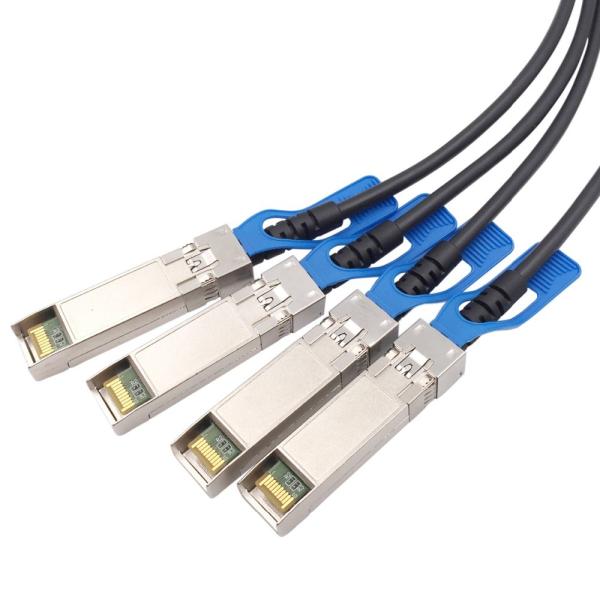

100G QSFP28 To 4x25G SFP28 AWG30 Passive DAC Breakout Cable
100G QSFP28 To 4x25G SFP28 AWG30 Passive DAC Breakout Cable
100G QSFP28 To 4x25G SFP28 AWG30 Passive DAC Breakout Cable
100G QSFP28 To 4x25G SFP28 AWG30 Passive DAC Breakout Cable
100G QSFP28 To 4x25G SFP28 AWG30 Passive DAC Breakout Cable
100G QSFP28 To 4x25G SFP28 AWG30 Passive DAC Breakout Cable
Specifications
Brand Name :
UNIFIBER-OEM
Model Number :
100G QSFP28 to 4x25G SFP28
Certification :
ROHS
Place of Origin :
CHINA
MOQ :
10pcs
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
1000pcs/day
Delivery Time :
3~5 business days
Packaging Details :
PP bag
Data Rate :
100Gbps
Wire AWG :
30AWG
Length :
1m 2m 3m 4m 5m
Connectors :
QSFP28 to SFP28
Compatible :
Cisco HP Juniper etc
Package :
PP Bag
Color :
Black
Application :
Data center
Description

100G QSFP28 to 4x25G SFP28 AWG30 passive DAC breakout cable 1m 3m 5m

QSFP28 passive copper cable assembly feature eight differential copper pairs,providing four data transmission channels at speeds up to 28Gbps per channel,and meets 100G Ethernet,25G Ethernet and InfiniBand Enhanced Data Rate(EDR) requirements.Available in a broad rang of wire gages-from 26AWG through 30AWG-this 100G copper cable assembly features low insertion loss and low cross talk.
Designed for applications in the data center,networking and telecommunications markets that require a high speed,reliable cable assembly,this next generation product shares the same mating interface with QSFP+ form factor ,making it backward compatible with existing QSFP ports.QSFP28 can be used with current 10G and 14G applications with substantial signal integrity margin.

Features
Compatible with IEEE 802.3bj,IEEE 802.3by and InfiniBand EDR
Supports aggregate data rates of 100Gbps
Optimized construction to minimize insertion loss and cross talk
Backward compatible with existing QSFP+ connectors and cages
Pull-to-release slide latch design
26AWG through 30AWG cable
Straight and break out assembly configurations available
Customized cable braid termination limits EMI radiation
Customizable EEPROM mapping for cable signature
RoHS compliant


Application
Switches,servers and routers
Data Center networks
Storage area networks
High performance computing
Telecommunication and wireless infrastructure
Medical diagnostics and networking
Test and measurement equipment

Compatibility brand

Cisco,HP,Juniper,Finisar,D-Link,Alcatel,etc

Application

Telecommunication

Power Supply

+3.3V

Operating Temperature

0 ℃ to 70 ℃

Wire Gauge

30AWG

Conductor Material

Copper

Data Rate

100G

100G QSFP28 To 4x25G SFP28 AWG30 Passive DAC Breakout Cable100G QSFP28 To 4x25G SFP28 AWG30 Passive DAC Breakout Cable
