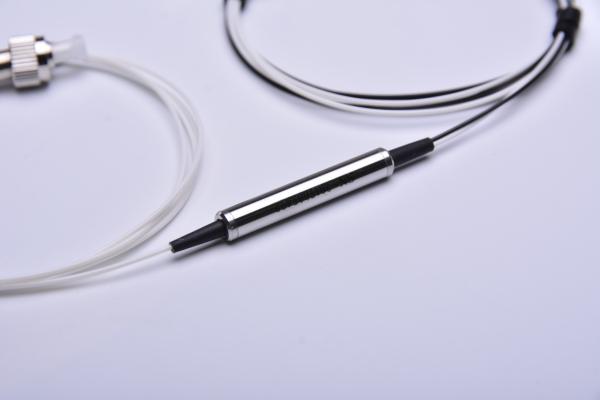

1310 1490 1550nm 3 Ports SC/APC Filter WDM device
1310 1490 1550nm 3 Ports SC/APC Filter WDM device
1310 1490 1550nm 3 Ports SC/APC Filter WDM device
1310 1490 1550nm 3 Ports SC/APC Filter WDM device
1310 1490 1550nm 3 Ports SC/APC Filter WDM device
1310 1490 1550nm 3 Ports SC/APC Filter WDM device
1310 1490 1550nm 3 Ports SC/APC Filter WDM device
1310 1490 1550nm 3 Ports SC/APC Filter WDM device
Specifications
Brand Name :
UNIFIBER
Model Number :
FWDM
Certification :
ROHS
Place of Origin :
CHINA
MOQ :
10pcs
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
1000pcs/day
Delivery Time :
3-5days
Packaging Details :
Blister Case
Wavelength :
1310/1490/1550nm
Package :
Steel tube,ASB box
Pigtail type :
250um bare fiber,900um loose tube,2.0mm,3.0mm
Connector type :
FC,SC,LC,ST or Customized
Description

High Isolation 3 Ports FWDM 980/1550nm,1480/1550nm, Steel tube SC/APC

Micro-Optics WDM utilizes thin film coating technology and proprietary design of non-flux metal bonding micro optics packaging. It provides low insertion loss, high channel isolation, low temperature sensitivity and epoxy free optical path.

Features:

Low Insertion Loss
High channel Isolation
Wide pass band
High reliability and stability
Epoxy free on optical path

Application:

Fiber optical Amplifier
Access Network

Line monitoring
Telecom munication
Cellular Application

Parameters Specification Unit
Reflected port Wavelength 1260~1360&1480~1500 nm
Transmitted port Wavelength 1550~1560 nm
Reflected port Insertion Loss ≤1.0 dB
Transmitted port Insertion Loss ≤1.0 dB
Reflected Isolation @1550~1560nm ≥20 dB
Transmitted Isolation@1260~1360&1480~1500nm ≥30 dB
Polarization Dependent Loss ≤0.2 dB
Polarization Mode Dispersion ≤0.25 ps
Return Loss ≥45 dB
Directivity ≥50 dB
Operating Temperature -40 to 85 °C
Storage Temperature -40 to 85 °C
Connector Type COM & 1550nm ports SC/APC(Simplex) -
1310 &1490nm port SC/UPC(Simplex)
Fiber Type Corning G.657 A1 fiber -
Package Dimensions 1U LGX -

1310 1490 1550nm 3 Ports SC/APC Filter WDM device1310 1490 1550nm 3 Ports SC/APC Filter WDM device1310 1490 1550nm 3 Ports SC/APC Filter WDM device
