ABS Pigtailed Module 4CH LAN WDM Mux Demux Multiplexer
ABS Pigtailed Module 4CH LAN WDM Mux Demux Multiplexer
ABS Pigtailed Module 4CH LAN WDM Mux Demux Multiplexer
ABS Pigtailed Module 4CH LAN WDM Mux Demux Multiplexer
ABS Pigtailed Module 4CH LAN WDM Mux Demux Multiplexer
ABS Pigtailed Module 4CH LAN WDM Mux Demux Multiplexer
Specifications
Brand Name :
UNIFIBER-OEM
Model Number :
4CH LAN-WDM
Certification :
ROHS
Place of Origin :
CHINA
MOQ :
10pcs
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
500pcs/day
Delivery Time :
5~7 Business days
Packaging Details :
Carton Box
CH :
4
Connector :
SC/LC
Wavelength :
1271/1291/1311/1331
Package :
ABS box
No. of Fiber :
8
Application :
FTTX WDM system
Description

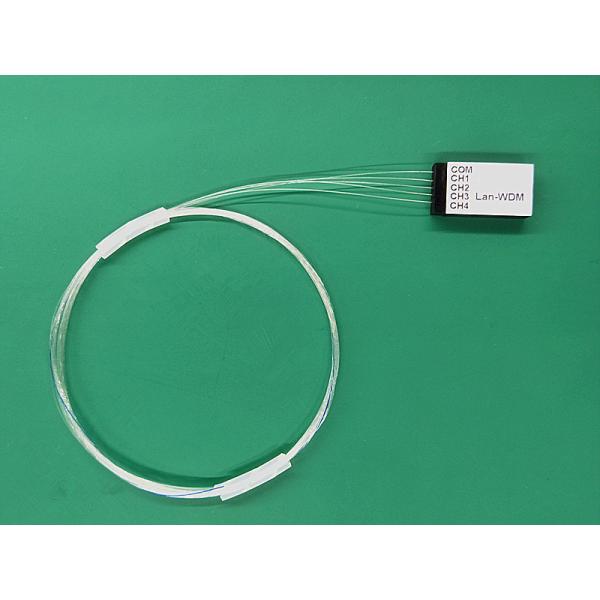

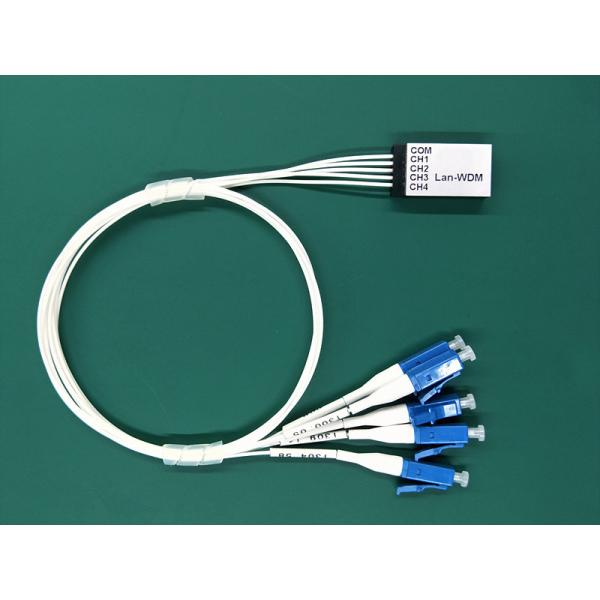

Ultra compact size 4CH LAN-WDM Mux Demux, ABS Pigtailed Module, LC/UPC

Single Fiber LAN-WDM Mux Demux is usually used for 5G fronthaul network where wavelengths are packed tightly together over the O-band, up to 8 wavelengths in 800GHz grid(4.5nm). Based on Thin-Film-Filter (TFF), this LAN-WDM Mux Demux features small form factor, ultra-low insertion loss, high channel isolation, and unparallel reliability. It incorporates the existing 4G network and manage highly dense fiber connections in 5G network in a cost-effective way.

Features
Low Insertion Loss
High Stability and reliability
High Channel Isolation
Ultra compact size
Epoxy-free on Optical Path


Applications
WDM Network
SFP transceivers
Data communication

40G or 100G applications

Specifications

Parameter 4 Channel Module
Channel Wavelength(nm) 1271/1291/1311/1331
Center wavelength Accuracy(nm) +/-0.5
Channel Spacing(nm) 20
Channel Passband (nm) +/-6.5
Insertion Loss(dB) ≤1.4
Channel Ripple(dB) ≤0.3
Isolation (dB) Adjacent >30
Non-adjacent >45
Insertion Loss Temperature Sensitivity (dB/℃) <0.005
Wavelength Temperature Shifting(nm/℃) <0.002
Polarization Dependent Loss(dB) <0.2
Polarization Mode Dispersion <0.2
Directivity (dB) >50
Return Loss (dB) >45
Maximum Power Handling(mW) 300
Operating Temperature(℃) -10~+80
Storage Temperature(℃) -40~+85
Package Dimension(mm) L20*W12.4*H6.4

ABS Pigtailed Module 4CH LAN WDM Mux Demux MultiplexerABS Pigtailed Module 4CH LAN WDM Mux Demux Multiplexer
