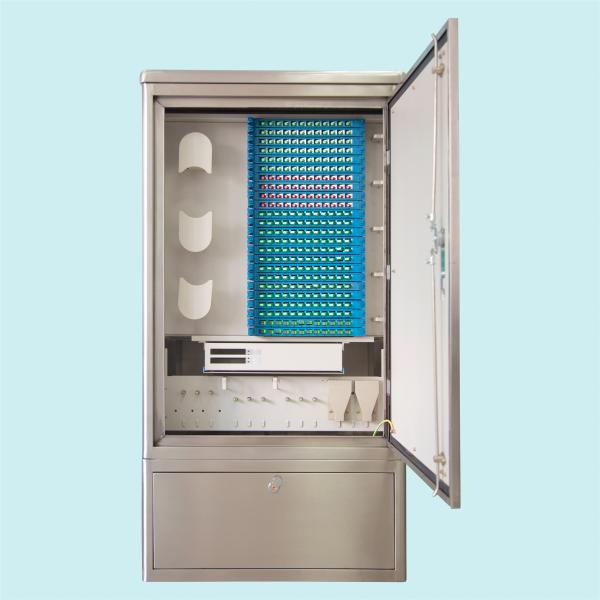

Waterproof Stainless Steel 576 Fiber Optic Street Cabinet
Waterproof Stainless Steel 576 Fiber Optic Street Cabinet
Waterproof Stainless Steel 576 Fiber Optic Street Cabinet
Waterproof Stainless Steel 576 Fiber Optic Street Cabinet
Waterproof Stainless Steel 576 Fiber Optic Street Cabinet
Waterproof Stainless Steel 576 Fiber Optic Street Cabinet
Specifications
Brand Name :
UNIFIBER
Model Number :
GXF(05)A
Certification :
ROHS
Place of Origin :
CHINA
MOQ :
1pcs
Price :
Negotiable
Payment Terms :
L/C, , T/T, Western Union
Supply Ability :
500units/day
Delivery Time :
5-8days
Packaging Details :
Individual package
Model :
GXF(05)A
Material :
Stainless steel
Max. capacity :
144/288/576
Splice tray Q'TY :
12/24/48
Connector :
SC/FC
Application :
FTTX access network
Description

Outdoor waterproof fiber optic street cabinet stainless steel IP65, up to 576 fibers

It is suitable for outdoor light splitting in FTTX application,provide with light splitting function,easy for installation,safety in use and reducing costs.

Features:

Totally enclosed type of standard frame, with maximum capacity of 576 cores.
Spliting light by inserting splitter module, save construction costs, New type of lock, high security.
Stainless steel body material, protection performance class reaches IP65.
New slide-type fixed structure for cable, flexible operation. Security protection structure for radius of curvature of the fiber optics
There are holes for incoming cables at the bottom.
Integrated unit of splice and distribution. Cassette style installation of FC, SC adaptors makes the installation convenient and the appearance nice. Every unit of splice and distribution can be taken out separately to meet the demand of install both on and of the frame.
With clear management of cable, pigtail, and patch cord, good operability for large volume operation

Application:

Telecommunication Networks

Local Area Networks

FTTH (Fiber To the Home) access network.
CATV Networks
Data communications Networks

Specification:

Material: Stainless steel
Nominal work wave-length: 850nm, 1310nm, 1550nm
Protection level: IP65
Work Temperature: -45℃-+85℃
Relative humidity:≤85%(+30°C)
Atmospheric pressure: 70~106 KPa
Insertion loss: ≤0.2dB
Return loss:≥45dB (PC), ≥50dB(UPC), ≥60dB(APC)
Isolation resistance(between frame and protection grounding):>1000 MΩ/500V(DC)
Durability:≥1000 times
Anti-voltage strength: ≥3000V(DC)/1min

Dimensions:

Dimension(mm) The max capacity (core) the max module (pcs)
W520×D300×H950 144 12
W750×D360×H1450 288 24
W750×D360×H1450 576 48

Waterproof Stainless Steel 576 Fiber Optic Street Cabinet
