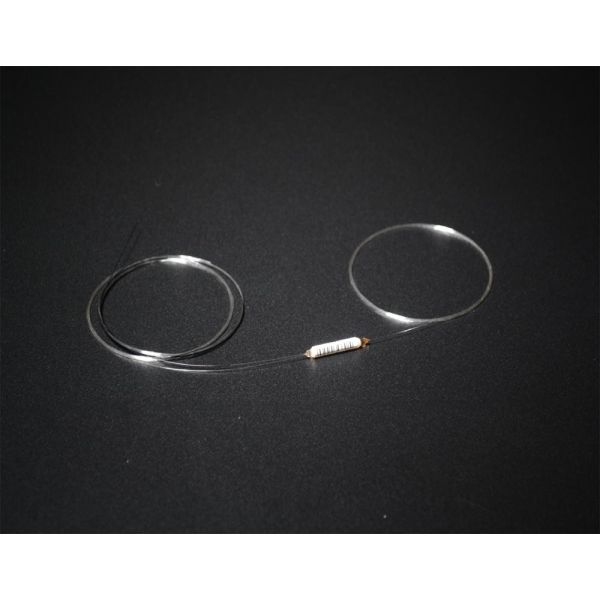

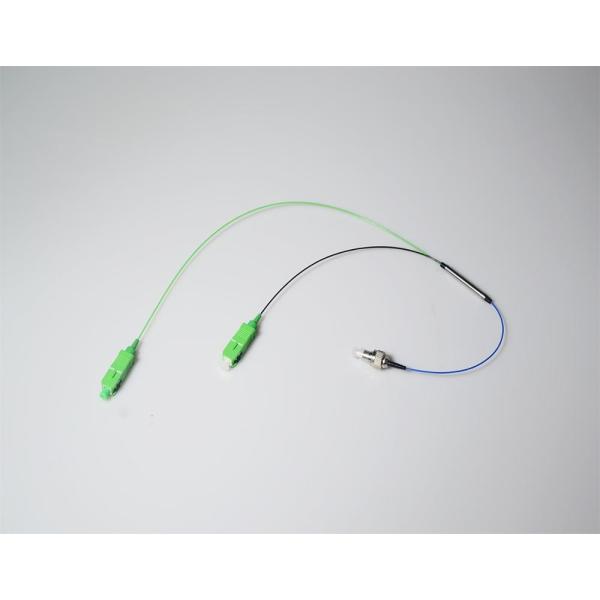

1X2 Glass Tube CWDM Device 3 ports mini WDM filter 1270nm~1610nm
1X2 Glass Tube CWDM Device 3 ports mini WDM filter 1270nm~1610nm
1X2 Glass Tube CWDM Device 3 ports mini WDM filter 1270nm~1610nm
1X2 Glass Tube CWDM Device 3 ports mini WDM filter 1270nm~1610nm
1X2 Glass Tube CWDM Device 3 ports mini WDM filter 1270nm~1610nm
1X2 Glass Tube CWDM Device 3 ports mini WDM filter 1270nm~1610nm
1X2 Glass Tube CWDM Device 3 ports mini WDM filter 1270nm~1610nm
1X2 Glass Tube CWDM Device 3 ports mini WDM filter 1270nm~1610nm
Specifications
Brand Name :
UNIFIBER
Model Number :
CWDM
Certification :
ROHS
Place of Origin :
CHINA
MOQ :
10pcs
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
1000pcs/day
Delivery Time :
3-5days
Packaging Details :
Blister Case
Wavelength :
1270nm~1610nm
Package :
1X2 Glass Tube
Pigtail type :
250um bare fiber
Connector type :
FC,SC,LC,ST or Customized
Description

1X2 Glass Tube CWDM Device 3 ports WDM filter 1270nm~1610nm

Glass tube Fiber optic 1x2 mini CWDM device 3 ports WDM filter includes wavelength from 1270nm, 1290nm,1310nm, 1330nm, 1350nm, 1370nm, 1390nm, 1410nm, 1430nm, 1450nm, 1470nm, 1490nm, 1510nm, 1530nm, 1550nm, 1570nm, 1590nm, 1610nm. Or 1271, 1291, 1311, 1351, 1371, 1391, 1411, 1431, 1451, 1471, 1491, 1511, 1531, 1551, 1571, 1591, 1611

Features
Compact Design
Wide passband
Low insertion loss & PDL
High channel isolation
High stability and reliability

Applications
Optical communication systems
Optical devices
Wavelength division multiplexing systems
PON Networks

Parameter Multiplexer Demultiplexer
Operating central wavelength 1270nm – 1610 nm
Central wavelength accuracy ± 0.5 nm
Channel spacing 20 nm
Passband at -0.5dB Minimum 13 nm
Insertion Loss (dB) pass<0.6dB, reflection<0.4dB
Channel uniformity Maximum 1 dB
Channel ripple Maximum 0.3 dB
Adjacent isolation N/A Minimum 30 dB
Non-adjacent isolation N/A Minimum 40 dB
Insertion loss temperature sensitivity Maximum 0.003 dB/ºC
Wavelength temperature shifting Maximum 0.002 nm/ ºC
Polarization temperature loss Maximum 0.1 dB
Polarization mode dispersion Maximum 0.1 ps
Directivity Minimum 50 dB
Return loss Minimum 45 dB
Power handling 500 mW
Operating temperature range -5 to 76 ºC
Storage temperature range -40 to 85 ºC

1X2 Glass Tube CWDM Device 3 ports mini WDM filter 1270nm~1610nm

1X2 Glass Tube CWDM Device 3 ports mini WDM filter 1270nm~1610nm
