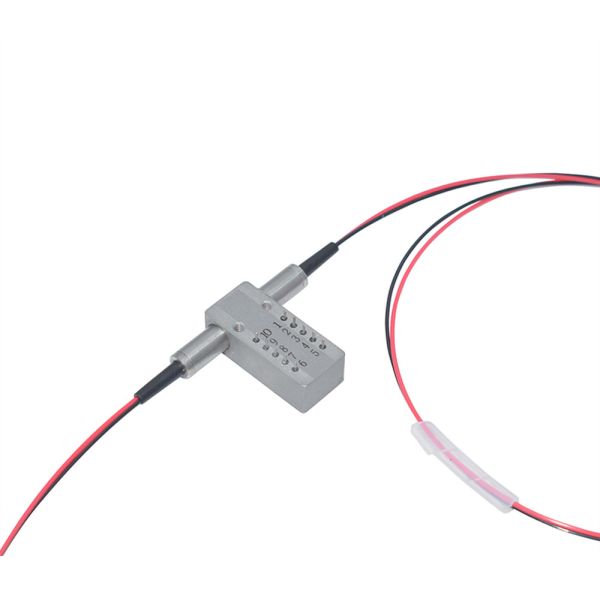

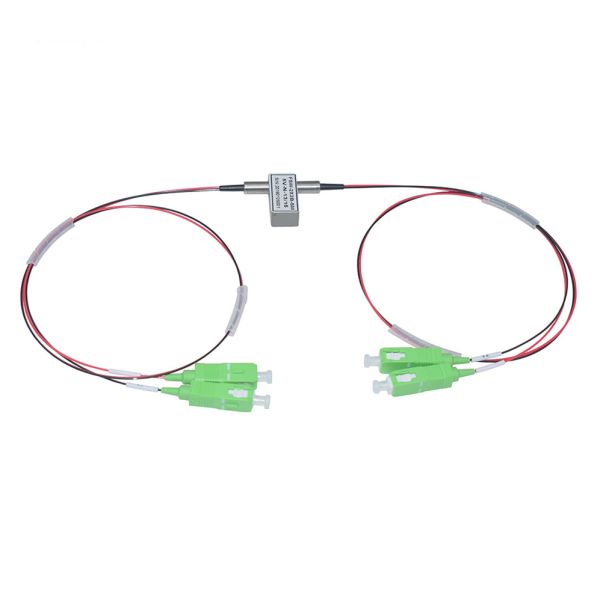

2x2 Bypass Mechanical Fiber Optic Switch 1310/1550nm for Optical network protection

2x2 Mechanical Optical Switch is not affected by the polarization and wavelength. It supports all wavelength at 850nm and 1260nm~1650nm, and It provides high reliability, low insertion loss, fast switching speed and bi-directional performance. They are widely used for multiplex OADM, cross connectors OXC, system testing and protection.

Features
Compact size

Fast switch time
Low insertion loss, low PDF, low WDL
High durability

Applications
Protection switching
Network monitoring
OADM, OXC, OPM

Performance Specifications

Parameter 2×2-MM/SM
Wavelength Range(nm) 850±40 1260~1650
Operating Wavelength 850±40 1310/1490/1550/1625/1650
Insertion Loss(dB) Typ:0.8 Max:1.2 Typ:0.6 Max:0.8
Return Loss(dB) MM≥30 SM≥50
Crosstalk(dB) MM≥65 SM≥70
Polarization Dependent Loss(dB) ≤0.05
WaveLength Dependent Loss(dB) ≤0.25
Temperature Dependent Loss(dB) ≤0.25
Repeatability(dB) ≤±0.02
Power Supply(V) 3.0 or 5.0
Lifetime(time) ≥10^7
Switch Time(ms) ≤8
Transmission Power(mW) ≤500
Operating Temperature(℃) -20~+70
Storage Temperature(℃) -40~+85
Weight(g) 16
Dimension(mm) (L)28.0×(W)12.6×(H)8.0

1,Specifications may change without notice.

2,Above specification are for device without connector.

Pins

Type Pin Electric Drive Status Sensor
2×2 Light Pin Pin1 Pin5 Pin6 Pin10 Pin2-3 Pin3-4 Pin7-8 Pin8-9
Latching P1-P4,P2-P3 V+ GND -- -- Open Close Close Open
P1-P3,P2-P4 -- -- GND V+ Close Open Open Close
Non-latching P1-P4,P2-P3 V+ -- -- GND Open Close Close Open
P1-P3,P2-P4 -- -- -- -- Close Open Open Close

Optical Route

Status One Status Two
2x2 Bypass Mechanical Fiber Optic Switch 1310/1550nm for Optical network protection 2x2 Bypass Mechanical Fiber Optic Switch 1310/1550nm for Optical network protection

Electric

Specifications Voltage Current Resistance
5V latching 4.5~5.5 36~44mA 125Ω
5V non-latching 4.5~5.5 26~32mA 175Ω
3V latching 2.7~3.3 54~66mA 50Ω
3V non-latching 2.7~3.3 39~47mA 70Ω

2x2 Bypass Mechanical Fiber Optic Switch 1310/1550nm for Optical network protection2x2 Bypass Mechanical Fiber Optic Switch 1310/1550nm for Optical network protection
