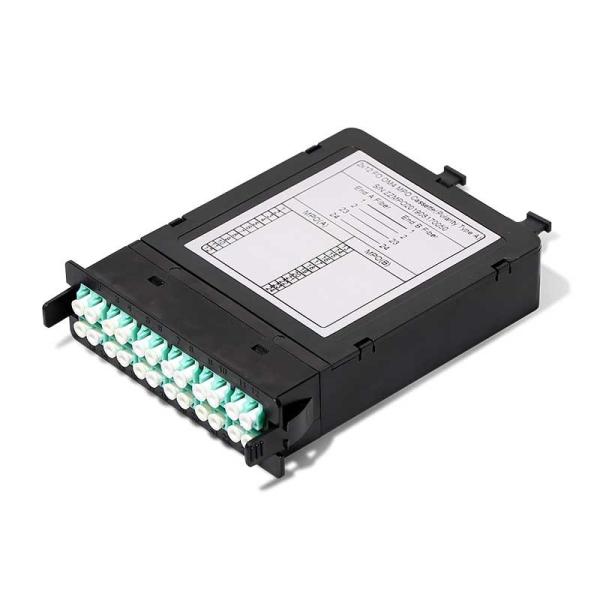

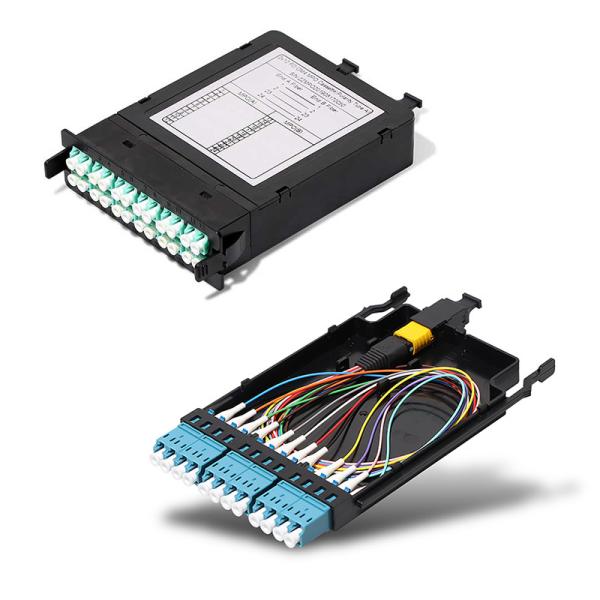

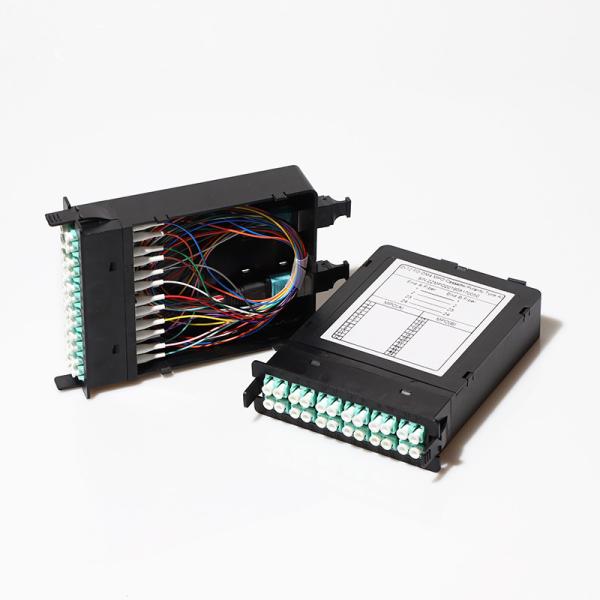

Duplex LC Adapter 12/24 FO MPO MTP LGX Cassette Module
Duplex LC Adapter 12/24 FO MPO MTP LGX Cassette Module
Duplex LC Adapter 12/24 FO MPO MTP LGX Cassette Module
Duplex LC Adapter 12/24 FO MPO MTP LGX Cassette Module
Duplex LC Adapter 12/24 FO MPO MTP LGX Cassette Module
Duplex LC Adapter 12/24 FO MPO MTP LGX Cassette Module
Duplex LC Adapter 12/24 FO MPO MTP LGX Cassette Module
Duplex LC Adapter 12/24 FO MPO MTP LGX Cassette Module
Specifications
Brand Name :
UNIFIBER or OEM
Model Number :
MTP/MPO
Certification :
ROHS
Place of Origin :
CHINA
MOQ :
10pcs
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
1000pcs/day
Delivery Time :
5-7days
Packaging Details :
Individual packing
Material :
Cold Rolled Steel
Fiber counts :
12/24
Connector :
MPO/MTP to LC
Fiber Mode :
Singlemode or Multimode
24-strand 24 fibers LGX :
1 x MPO/MTP-Adapter back to the cassette.
12-strand 24 fibers LGX :
2 x MPO/MTP-Adapter back to the cassette.
Color :
SM-Blue, APC-Green, MM-Beige, OM3-Aqua, OM4-Violet
Application :
40GbE and 100GbE networks
Description

12/24 FO MPO/MTP LGX cassette module, polarity type A, duplex LC adapter, OM3/OM4

UNIFIBER Offers a variety of single mode and multimode MTP/MPO Cassettes. The standard cassettes can accommodate 12 and 24 port configurations with different sizes of cassettes are available feauring all fiber modes and connector options. They are pre-terminated, pre-tested, and come with 12- or 24-fiber MPO/MTP connectors on the back that break out tosingle or array connectors on the front. Cassettes are custom-built to your configuration needs and modules are custom-built to tomeet your specific application needs. Select from a variety of connectors including LC, SC, and MU for OM1, OM2, OM3, OM4, and OS2 deployment.

FEATURE
All cassettes use either 24-fiber or 12-fiber low-loss MPO/MTP connectors on the back
100% factory tested with test results included with each cassette

Come with Standard Black LGX footprint styles and Available in Custom-Built Cassettes

Plug-and-play cassette eliminates the need for field termination or splices
MPO/MTP adapter swivel allows for easy cable routing and proper bend radius

Allow for a simple migration path to 40GbE and 100GbE networks with MPO/MTP cassettes

Application

Data center infrastructure

Data communication network
Optical System Access network
Storage area networking fiber channel
High density architectures
Single mode
Multimode
LC, SC, MU
MPO, MTP
LC, SC, MU
MPO, MTP
MAX IL
≤0.3dB
≤0.75dB
≤0.3dB
≤0.75
Remark:
24-strand 24 fibers LGX= 1 x MPO/MTP-Adapter back to the cassette.
12-strand 24 fibers LGX= 2 x MPO/MTP-Adapter back to the cassette.
Color:
Connector: LC/SC/MU SM-Blue, APC-Green, MM-Beige, OM3-Aqua, OM4-Violet ; MPO/MTP SM-Green, MM-Beige, OM3-Aqua.
Adaptor: LC/SC SM-Blue, APC-Green, MM-Beige, OM3-Aqua, OM4-Violet ; MU-Brown ; MPO/MTP-Black
