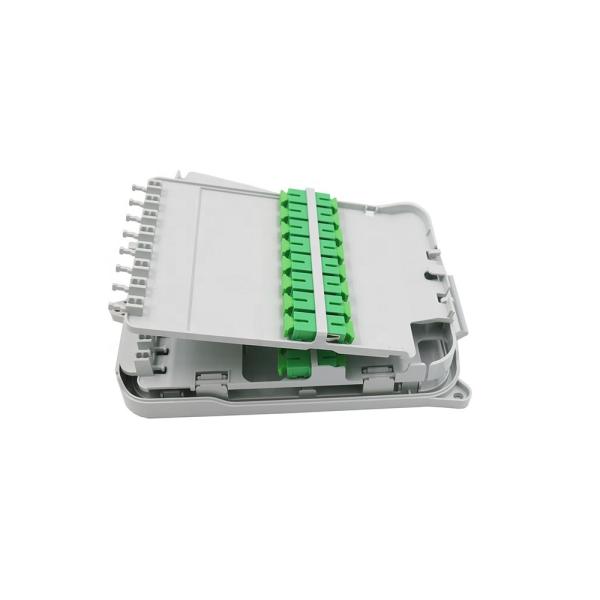

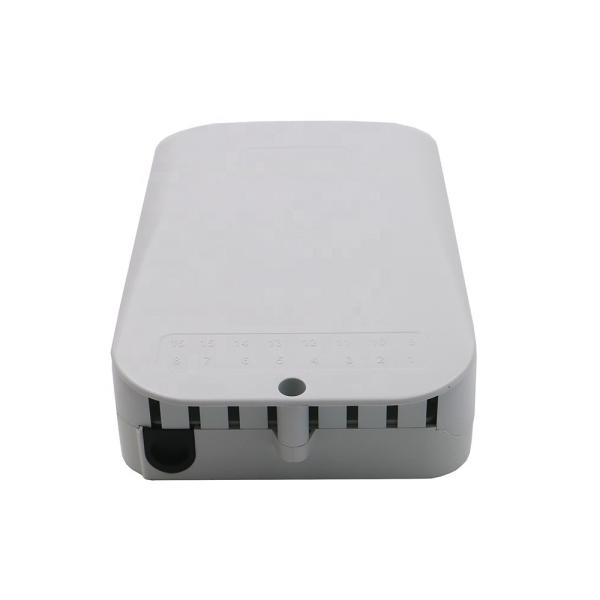

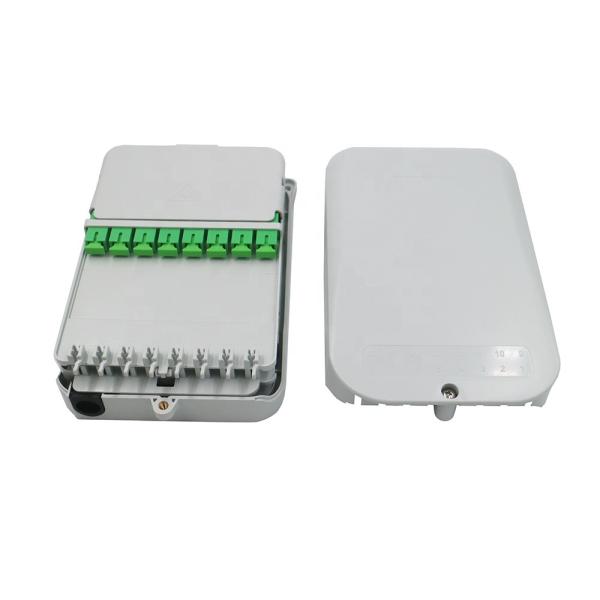

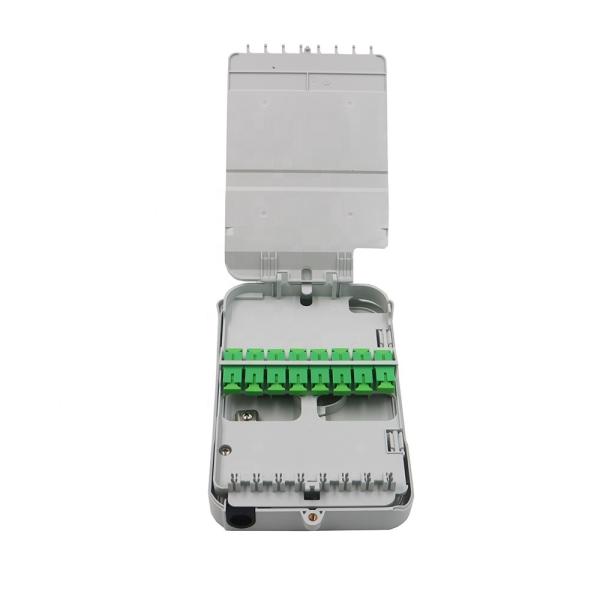

SC APC Adapters 12mm Cable 8/16 Ports Ftth Fiber Optic Terminal Box
SC APC Adapters 12mm Cable 8/16 Ports Ftth Fiber Optic Terminal Box
SC APC Adapters 12mm Cable 8/16 Ports Ftth Fiber Optic Terminal Box
SC APC Adapters 12mm Cable 8/16 Ports Ftth Fiber Optic Terminal Box
SC APC Adapters 12mm Cable 8/16 Ports Ftth Fiber Optic Terminal Box
SC APC Adapters 12mm Cable 8/16 Ports Ftth Fiber Optic Terminal Box
Specifications
Brand Name :
UNIFIBER-OEM
Model Number :
OTFDB-108A
Certification :
ROHS
Place of Origin :
CHINA
MOQ :
10pcs
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
1000pcs/day
Delivery Time :
5~7 Business days
Packaging Details :
Carton Box
Material :
ABS+PC
Protective Level :
IP65/IP66
Color :
White
Cable Diameter :
12mm
Capacity :
8/16 core
Application :
FTTH FTTB FTTX Network
Description

FTTH 8/16 ports optical splitter terminal distribution box with SC APC adapters,1 inlet ports, 16outlet port

16 Cores fiber optic access termination box is able to hold up to 16 subscribers. It is used as a termination point for the feeder cable to connect with drop cable in FTTx network system. It integrates fiber splicing, splitting, distribution, storage and cable connection in one solid protection box. The optical distribution box is a solution that facilitates the installation of optical termination in branch networks for FTTH environments.


Application
FTTH access network.
Telecommunication Networks
CATV Networks
Data communications Networks

Features

IP65 Rated Water-proof design, Prepared for outdoor environments
Integrated with splice cassette and cable management rods.
Manage fibers in a reasonable fiber radius condition.
Panel for accommodating SC optical adapters, which must be purchased separately
Easy to maintain and extend the capacity.
Fiber bend radius control more than 40mm.
Suitable for the fusion splice or mechanical splice.
1*16 Splitter can be installed as an option.
Efficient cable management.
Equipment with sealing locks

Specification:

Material PC+ABS
Size 220*140*55
PLC 2 pcs 1x8 or 1pc 1x16 steel tube PLC Splitter
Weight 0.6kg
SC APC Adapters 12mm Cable 8/16 Ports Ftth Fiber Optic Terminal BoxSC APC Adapters 12mm Cable 8/16 Ports Ftth Fiber Optic Terminal Box
