Specifications
Brand Name :
UNIFIBER-OEM
Model Number :
SCASCA
Certification :
ROHS
Place of Origin :
CHINA
MOQ :
10pcs
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
1000pcs/day
Delivery Time :
3~5 business days
Packaging Details :
PE bag
Connector :
SC LC FC ST or specify
Fiber :
G652D G657A G657B
Jacket :
LSZH
OD :
3.5mm
Description

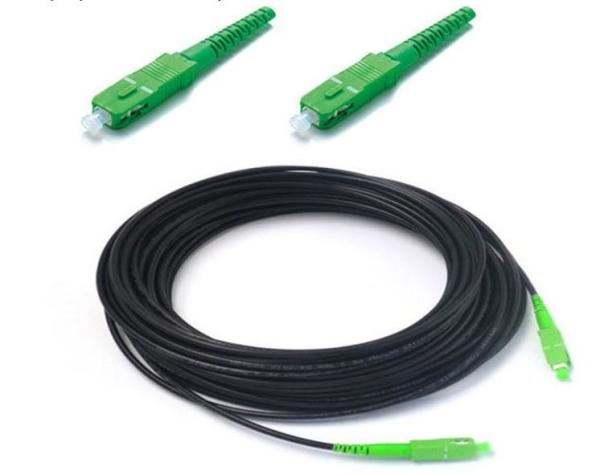

Fiber Optic Patch Cord Single Mode 3.5mm/4.0mm G657B3 fiber LSZH/PE Sheath SC APC for FTTH/CATV long distance connecting

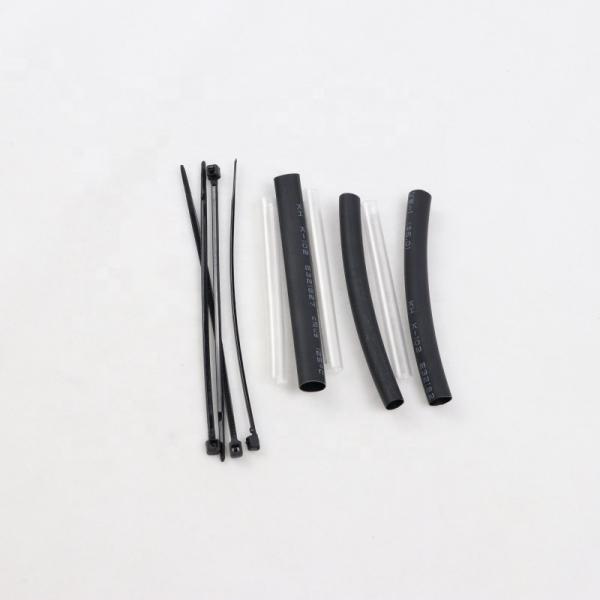

This is a fiber optic cable capped at either end with connectors that allow it to be rapidly and conveniently connected to CATV, an optical switch or other telecommunicationequipment. Its thick layer of protection is used to connect the optical transmitter, receiver, and the terminal box.It include 3pcs 4.0mm transparent sleeves, and 3pcs 5.0mm sticky tube, also with 3pcs cable ties. It's better for fusion and fixing better.

Features

Outdoor Exterior fiber optic patch cables, inside 1.9mm inner white LSZH sheath, outer jacket is PE Material. It can be used indoor and outdoor.

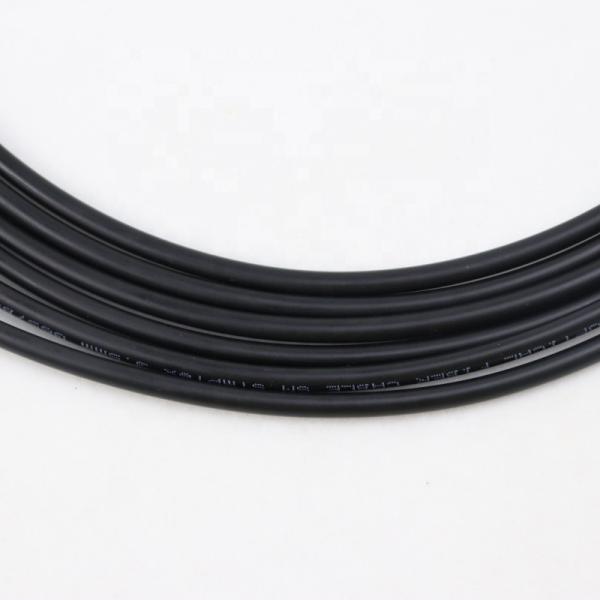

Outer black 3.5mm jacket can be stripped more easily if customer need use inside 1.9mm cable to connector with patch panels, terminal box and make splicing installation.
Use G657B3 fiber.
For this type pigtail or patch cable length always 20M, 30M, 40M, 60M, 80M, 100M, 120M, 2KM to use for long distance connecting.

Application

CATV (Cable Television)
Telecommunication networks
Computer fiber networks and fiber test equipment
Communication rooms
FTTH (Fiber to The Home)
LAN (Local Area Network)
FOS (fiber optic sensor)
Fiber Optic Communication System
Optical fiber connected and transmitted equipment
Defense combat readiness, etc.

Parameters

Item SingleMode MultiMode
Insertion loss ≤0.2dB ≤0.3dB
Return loss PC≥50dB, APC≥55dB, UPC≥60dB
Insert-pull test 1000 times
Repeatability ≤0.1
Tensile strength ≥10kg
Operating temperature -40℃~ +85℃
Ceramic ferrule spec 125.5um concentricity deviations:≤1μm 127um concentricity deviations:≤3μm
Suitable fiber 9/125μm 50/125μm, 62.5/125μm
