100/150/200m Pre Terminated FTTA Outdoor Fibre Patch Cable
100/150/200m Pre Terminated FTTA Outdoor Fibre Patch Cable
100/150/200m Pre Terminated FTTA Outdoor Fibre Patch Cable
100/150/200m Pre Terminated FTTA Outdoor Fibre Patch Cable
100/150/200m Pre Terminated FTTA Outdoor Fibre Patch Cable
100/150/200m Pre Terminated FTTA Outdoor Fibre Patch Cable
100/150/200m Pre Terminated FTTA Outdoor Fibre Patch Cable
100/150/200m Pre Terminated FTTA Outdoor Fibre Patch Cable
Specifications
Brand Name :
UNIFIBER-OEM
Model Number :
MINI SC
Certification :
ROHS
Place of Origin :
CHINA
MOQ :
10pcs
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
10000pcs/day
Delivery Time :
3-5days
Packaging Details :
PE bag
Cable diameter :
3.0mm/4.8mm/7.0mm
Cable jacket :
LSZH,PE,TPU,UV resistance
Cable length :
1/3/5/10m Or Customized
Fiber count :
Single fiber
Fiber :
G657A
Connectors :
mini SC/APC
Description

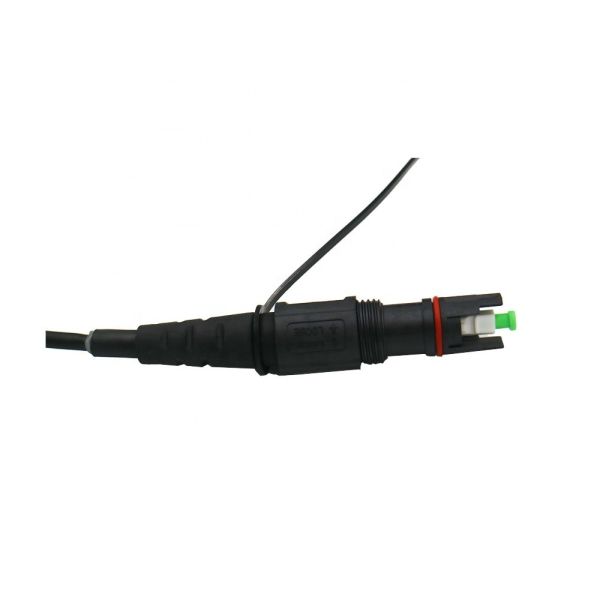

100/150/200m outdoor fibre patch cable roll pre terminated with mini SC connector match with Corning OptiTap drop cable

Corning Optitap/H connector assemblies provide a robust and sealed connection solution for fiber to the home (FTTH) connectivity.
The end incorporates an SC/APC type connection within a slim, sealed, threaded polymer housing allowing easy connection to either a multi port terminal or in-line extension receptecal. The SC/APC connectors mate to a standard adapter providing a common interface for FTTX applications.

Application

Ensures functionality in harsh weather environments
Provides superior weather resistance for FTTA and other outdoor applications.
Allows flexibility to use factory terminated assemblies or pre-terminated or field installed assemblies
Can be installs without special tooling
Provides bend protection for installation and long term use.

Feature

Bird proof and rodent resistant IP67 water and dust protection
Low profile in-line receptacle available
No installation tools required
Single fiber, SC-based connector
Cable diameter Range: 2.0mm, 3.0mm, 4.8mm to 7mm
In-line connection available

Type
SM-UPC
SM-APC
MM-UPC
Typical
MAX
Typical
MAX
Typical
MAX
Insertion loss
≤0.1
≤0.3dB
≤0.15
≤0.3dB
≤0.05
≤0.3dB
Return loss
≥50dB
≥30dB
≥30dB
Durability
500 mating cycles
Working temperature
-40 to + 85℃

100/150/200m Pre Terminated FTTA Outdoor Fibre Patch Cable100/150/200m Pre Terminated FTTA Outdoor Fibre Patch Cable
