LC/UPC Male Female 1310nm Single Mode Fiber Attenuator
LC/UPC Male Female 1310nm Single Mode Fiber Attenuator
LC/UPC Male Female 1310nm Single Mode Fiber Attenuator
LC/UPC Male Female 1310nm Single Mode Fiber Attenuator
LC/UPC Male Female 1310nm Single Mode Fiber Attenuator
LC/UPC Male Female 1310nm Single Mode Fiber Attenuator
LC/UPC Male Female 1310nm Single Mode Fiber Attenuator
LC/UPC Male Female 1310nm Single Mode Fiber Attenuator
Specifications
Brand Name :
UNIFIBER-OEM
Model Number :
UNFLCU
Certification :
ROHS
Place of Origin :
CHINA
MOQ :
100pcs
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
10000pcs/day
Delivery Time :
3-5days
Packaging Details :
PE bag
Attenuation range :
1~30dB
Fiber Connector :
LC/SC/FC/ST
Polish type :
APC or UPC
Operation wavelength :
1240 ~ 1620nm (Dual 1310/1550nm)
Return Loss :
UPC >55dB APC >65dB
Type :
Male/Female
Description

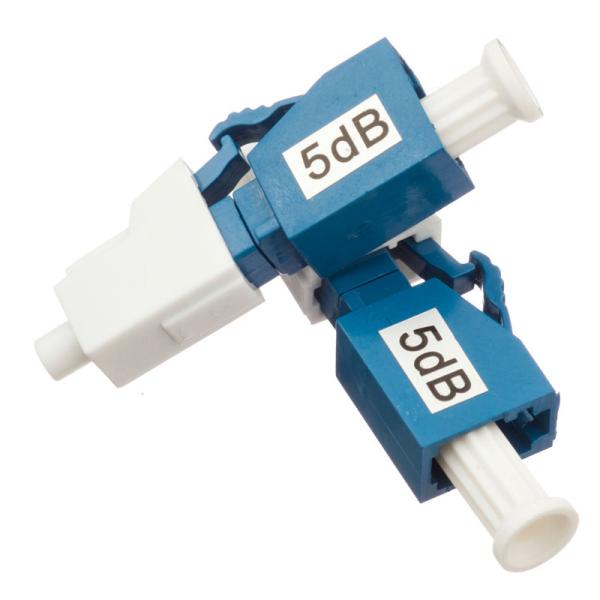

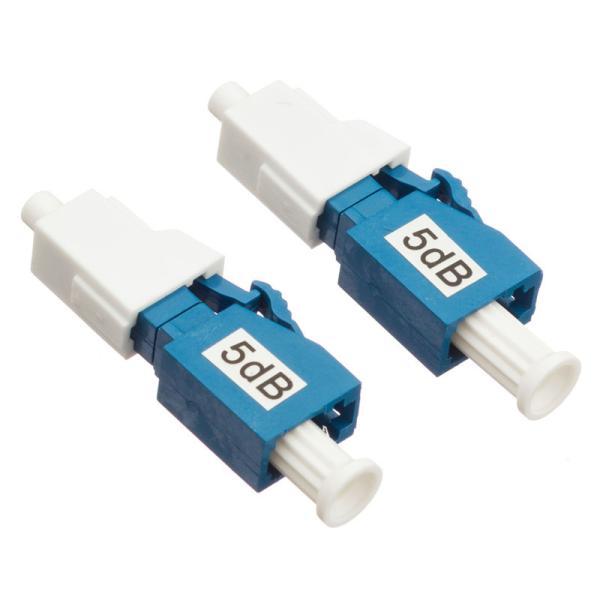

LC/UPC 3/5/10/15dB Single mode 1310/1550nm fixed Build out Male/Female Attenuator

The most commonly used type is female to male plug type fiber optic attenuator, it has the optical fiber connector at one side and the other side is a female type fiber optic adapter, fiber optic attenuator name is based on the connector type and the attenuation level. LC Build Out Fiber Attenuators include LC/UPC fiber attenuators and LC/APC Female to Male Fiber Attenuators.with attenuation range is from 1dB to 20dB for options.

Features

High-power light source durability

Wavelength independence

Attenuation levels ranging from 1dB to 25dB
1310nm, 1550nm and 1310/1550nm dual wave lengths

​Application
Data Networks

Video & CATV &FTTH Networks
Telecommunication Networks
Fiber Optical Communication System

Specification
Attenuation Range
0-25dB
Attenuation Accuracy
±0.5dB(1dB-10dB)
±1.0dB(11dB-25dB)
Available Wavelengths
1310nm,1550nm,1310&1550nm
Wavelength Dependence
<0.3dB Change in insertion loss for 1310-1550nm
Retuen Loss
≥55dB(UPC)
≥65dB(APC)
Polarization Dependent Loss
≤0.2dB
Temperature Range
-40-80°C(≤0.2dB in insertion loss)
Humidity Range
±0.2dB Change in 10% to 90% relative Humidity Range
Vibration
≤0.1dB Change between 10Hz to 55Hz
Drop
±0.2dB after 8 drops from 1.8meters onto a hard surface
Maximum Optical Input Power
200mW

LC/UPC Male Female 1310nm Single Mode Fiber AttenuatorLC/UPC Male Female 1310nm Single Mode Fiber AttenuatorLC/UPC Male Female 1310nm Single Mode Fiber Attenuator
