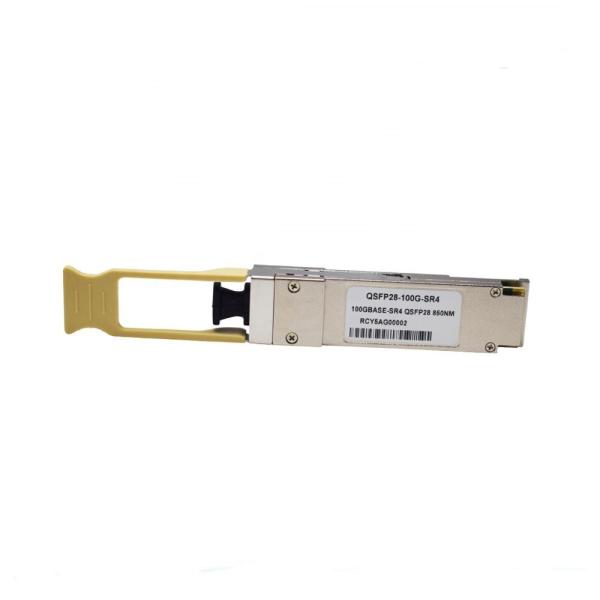

MTP MPO Connector 100G QSFP28 SR4 DOM Fiber Transceiver Module
MTP MPO Connector 100G QSFP28 SR4 DOM Fiber Transceiver Module
MTP MPO Connector 100G QSFP28 SR4 DOM Fiber Transceiver Module
MTP MPO Connector 100G QSFP28 SR4 DOM Fiber Transceiver Module
MTP MPO Connector 100G QSFP28 SR4 DOM Fiber Transceiver Module
MTP MPO Connector 100G QSFP28 SR4 DOM Fiber Transceiver Module
MTP MPO Connector 100G QSFP28 SR4 DOM Fiber Transceiver Module
MTP MPO Connector 100G QSFP28 SR4 DOM Fiber Transceiver Module
Specifications
Brand Name :
UNIFIBER-OEM
Model Number :
100G QSFP28
Certification :
CE RoHS FCC
Place of Origin :
CHINA
MOQ :
5pcs
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
500pcs/day
Delivery Time :
5~7 Business days
Packaging Details :
Individual package
Wavelength :
850nm
Data Rate :
100G
Transmission Distance :
100m
Interface :
MPO
Brand :
Can Be Customized
Form Factor :
QSFP28
DDM/DOM :
Supported
Transimitter Type :
VCSEL 850nm
Power Consumption :
3.5W
Description

100G QSFP28 SR4 850nm 100m DOM Fiber transceiver module MTP/MPO connector

100G QSFP28 optical transceivers include SR4, AOC, AOC breakout, CWDM4, eCWDM4, PSM4, PSM4 Pigtail, LR4 Ethernet and ER4 Lite. The series of products adopt LC or MPO optical ports and are compatible with IEEE802.3bm, SFF-8636 and other standards. They have the characteristics of low power consumption, high density and the like, and is beneficial to increasing the capacity and port density of the data center, and reducing the power consumption. It is mainly applied in 100G Data Center Internal Network, Data Center Interconnection, Metropolitan Area Network and other environments.

Features :
Duplex LC receptacle optical interface
Single +3.3V power supply
Hot-pluggable QSFP28 MSA form factor
4x28G Electrical Serial Interface (CEI-28G-VSR)
AC coupling of CML signals
Transmitter: cooled 4x25Gb/s LAN WDM EML TOSA (1295.56, 1300.05, 1304.58, 1309.14nm)
Receiver: 4x25Gb/s PIN ROSA
Low power dissipation(Max:4W)
Built in digital diagnostic function
Operating case temperature range:0℃ to 70℃
Compliant with 100GBASE-SR4
I2C Communication Interface


Applications :
100GBASE-SR4
Infiniband QDR and DDR interconnects
100G Datacom connections

Spec. Data Rate Wavelength Fiber Distance Optical Tx Power Rx Sens. Temp.
(bps) (nm) Type Comp. (dBm) (dBm) (℃)
QSFP28 SR4 100G 850 8x MMF OM3 70 m VCSEL -6~2.4 -10.3~2.4 0~70
OM4 100 m
QSFP28 IR4 PSM 100G 1310 8x SMF 2 km DML/PIN -8.4~2.4 -11 0~70
QSFP28 CWDM4 100G CWDM 2x SMF 2 km DML/PIN -6.5~2.5 -10~2.5 0~70
QSFP28 IR4 100G LWDM 2x SMF 2 km DML/PIN -6.5~2.5 -10~2.5 0~70
LR4 100G LWDM 2x SMF 10 km DML/PIN -4.3~4.5 -10.6~4.5 0~70
ELR4+ 100G LWDM 2x SMF 20 km DML/PIN -2.5~4.5 -14.5~4.5 0~70
ER4* 100G LWDM 2x SMF 30~40 km EML/APD -2.5~2.9 -20.5~-3.5 0~70

MTP MPO Connector 100G QSFP28 SR4 DOM Fiber Transceiver ModuleMTP MPO Connector 100G QSFP28 SR4 DOM Fiber Transceiver Module
