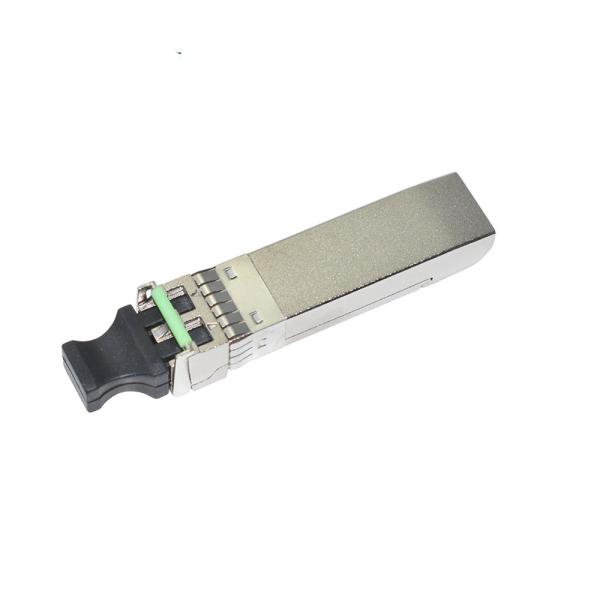

25Gb/s SFP28 CWDM 1310nm 10km LR Fiber Channel Transceiver
25Gb/s SFP28 CWDM 1310nm 10km LR Fiber Channel Transceiver
25Gb/s SFP28 CWDM 1310nm 10km LR Fiber Channel Transceiver
25Gb/s SFP28 CWDM 1310nm 10km LR Fiber Channel Transceiver
25Gb/s SFP28 CWDM 1310nm 10km LR Fiber Channel Transceiver
25Gb/s SFP28 CWDM 1310nm 10km LR Fiber Channel Transceiver
25Gb/s SFP28 CWDM 1310nm 10km LR Fiber Channel Transceiver
25Gb/s SFP28 CWDM 1310nm 10km LR Fiber Channel Transceiver
Specifications
Brand Name :
UNIFIBER-OEM
Model Number :
25G-SFP28-LR
Certification :
CE RoHS FCC
Place of Origin :
CHINA
MOQ :
10pcs
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
1000pcs/day
Delivery Time :
5~7 Business days
Packaging Details :
Individual package
Wavelength :
1310nm
Data Rate :
25G
Transmission Distance :
10km
Interface :
Dual LC
Brand :
Can Be Customized
Description

25Gb/s SFP28 fiber optic module CWDM 1310nm 10km LR Fiber Channel Transceiver

UNIFIBER 25G SFP28 transceiver series are based on IEEE 802.3by and MSA SFF-8402, including SR, LR, BiDi, CWDM and DWDM series.

Features
Up to 25.78Gb/s data links
CWDM DFB laser and PIN receiver
Up to 10km on 9/125um SMF
Hot-pluggable SFP footprint
Digital diagnostic capabilities
Class 1 laser safety certified
Cost effective SFP28 solution, enables higher port densities and greater bandwidth
RoHS compliant and lead-free
Single +3.3V power supply
2-wire interface for management specifications compliant with SFF-8472 digital diagnostic monitoring interface for optical transceivers
All-metal housing for superior EMI performance
Case operating temperature
Commercial: 0 ~ +70oC
Extended: -10 ~ +80oC
Industrial: -40 ~ +85oC

Applications
High-speed storage area networks
Computer cluster cross-connect
Custom high-speed data pipes
Inter Rack Connection

Items Data Rate
(bps)		 Wavelength
(nm)		 Fiber
Type		 Distance Optical
Comp.		 Tx Power
(dBm)		 Rx Sens.
(dBm))		 Temp.
(℃)
SFP28 SR 25.78G 850 　 100 m 　 -10 -7.5~2.5 0-70
SFP28 IR 25.78G 1310 　 2 km 　 -10.4 -8.4~3.0 0-70
SFP28 LR 25.78G 1310 　 10 km 　 　 　 0-70
　 25.78G CWDM
1270-1330		 　 10 km 　 　 　 0-70
SFP28 LR 25.78G 1310 　 20 km 　 　 　 0-70
SFP28 ER 25.78G CWDM
1295-1310		 　 30/40 km 　 　 　 0-70
　 25.78G 1310 　 300 m 　 　 　 -40-85
　 25.78G 1310 　 2 km 　 　 　 -40-85
　 25.78G 1310 　 10 km 　 　 　 -40-85
　 25.78G 1310 　 10 km 　 　 　 -40-85
　 25.78G CWDM
1270-1330		 　 10 km 　 　 　 -40-85
　 25.78G 1310 　 20 km 　 　 　 -40-85
　 25.78G 1295-1310 　 30/40 km 　 　 　 -40-85
　 25.78G C-Band
100GHz DWDM		 　 20 km 　 　 　 -40-85
　 25.78G C-Band
100GHz DWDM		 　 10 km 　 　 　 -40-85

Items Data Rate
(bps)		 Wavelength
(nm)		 Fiber
Type		 Distance Temp.
(℃)
SFP28 BIDI up to 25.78G 1270/1330 SMF 10 km -40-85
SFP28 BIDI up to 25.78G 1330/1270 SMF 10 km -40-85
SFP28 BIDI up to 25.78G 1270/1330 SMF 20 km -40-85
SFP28 BIDI up to 25.78G 1330/1270 SMF 20 km -40-85
SFP28 BIDI up to 25.78G 1270/1310 SMF 30 km -40-85
SFP28 BIDI up to 25.78G 1310/1270 SMF 30 km -40-85
SFP28 BIDI up to 25.78G 1270/1310 SMF 40 km -40-85
SFP28 BIDI up to 25.78G 1310/1270 SMF 40 km -40-85
