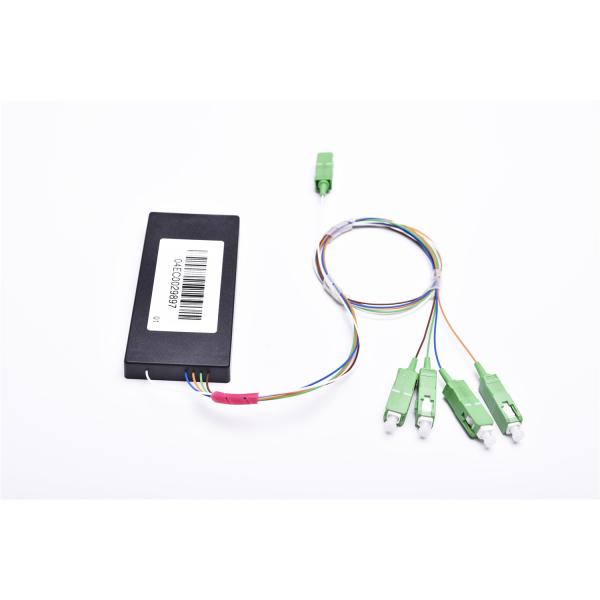

ABS Box SC/APC G657A1 Singlemode PLC Fiber Optic Splitter
ABS Box SC/APC G657A1 Singlemode PLC Fiber Optic Splitter
ABS Box SC/APC G657A1 Singlemode PLC Fiber Optic Splitter
ABS Box SC/APC G657A1 Singlemode PLC Fiber Optic Splitter
ABS Box SC/APC G657A1 Singlemode PLC Fiber Optic Splitter
ABS Box SC/APC G657A1 Singlemode PLC Fiber Optic Splitter
Specifications
Brand Name :
UNIFIBER
Model Number :
4WPLCSCA
Certification :
ROHS
Place of Origin :
CHINA
MOQ :
10pcs
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
1000pcs/day
Delivery Time :
5~8 business days
Packaging Details :
Individual blister Case or Carton Box
Package Style :
ABS box,Mini Steel Tube,LGX Cassette
Configuration Type :
1x2,1x4,1x8,1x16,1x32,1x64
Connector :
SC,LC,FC,ST or Customzied
Pigtail Length :
Customized
FIber type :
G657A1
Wavelength :
1260~1650nm
Description

1x4 optical splitter PLC compact mini ABS box singlemode SC/APC with bend insensitive fiber(BIF) G657A1

Planar lightwave circuit (PLC) splitter is a type of optical power management device that is fabricated using silica optical waveguide technology. It features small size, high reliability, wide operating wavelength range and good channel-to-channel uniformity, and is widely used in PON networks to realize optical signal power splitting.UNIFIBER provides whole series of 1xN and 2xN splitter products that are tailored for specific applications. All products meet GR-1209-CORE and GR-1221-CORE requirements.

FEATURES

Excellent Environmental Stability
Excellent Mechanical

Low Polarization Dependent Loss

Good uniformity and low insertion loss

APPLICATION

FTTX Systems
CATV

GEPON Networks

Optical Signal Distribution

Specification

Type 1x2 1x4 1x8 1x16 1x32 1x64
Operating wavelength(nm) 1260-1650
Insertion loss (dB) Typical 3.6 7.2 10.5 13.5 17 19.5
Maximum 4 7.5 11 14 17.2 21
Uniformity (dB) Typical 0.4 0.5 0.6 1 1 2
Maximum 0.6 0.6 0.8 1.2 1.5 2.5
Polarization Dependent Loss (dB) Typical 0.1 0.1 0.15 0.2 0.2 0.2
Maximum 0.15 0.15 0.25 0.3 0.3 0.3
Wavelength dependent loss (dB) Typical 0.1 0.1 0.15 0.3 0.3 0.3
Maximum 0.2 0.3 0.3 0.5 0.5 0.5

ABS Box SC/APC G657A1 Singlemode PLC Fiber Optic Splitter
