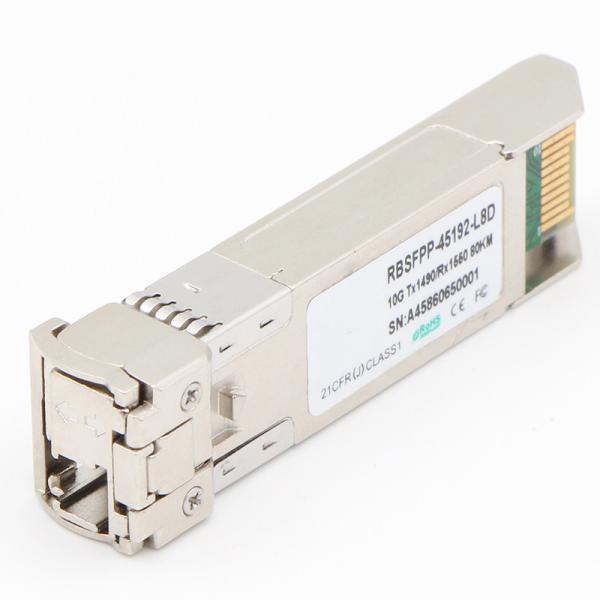

Bidi SFP+ Tx1490/Rx1550nm 80km fiber optic transceiver module

BIDI SFP+ Transceivers are Small Form Factor transceiver module. It designed expressly for high-speed communication applications that require rates up to 10.7Gbps,it designed to operates at a nominal wavelength of 1490nm or 1550nm.The module data link up to 80km in 9/125um single mode fiber. The optical output can be disabled by a LVTTL logic high-level input of Tx Disable. Tx Fault is provided to indicate that degradation of the laser. Loss of signal (LOS) output is provided to indicate the loss of an input optical signal of receiver or the link status with partner.

FEATURES :

Up to 10.3Gb/s data rates
1G/2G/4G/ 8G/10G Fiber Channel applications.

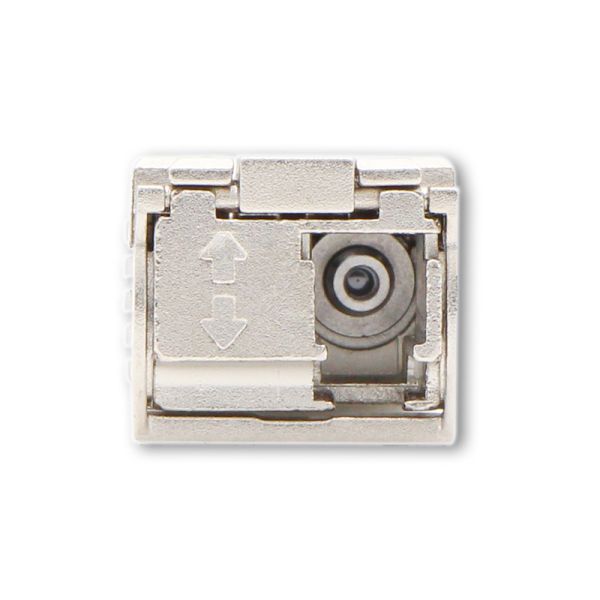

Simplex LC Connector Bi-Directional SFP+ Optical Transceiver
Single 3.3V Supply
Up to 80km on 9/125um SMF
A:1490nm DFB Laser transmitter,1550nm receiver
B:1550nm DFB Laser transmitter,1490nm receiver
SFP+ MSA SFF-8431 Compliant
Digital Diagnostic SFF-8472 Compliant
RoHS compliant and Lead Free
Operating case temperature: Commercial 0°C to 70°C / Industrial -40℃~+85℃
For the OBSAI application, the rates are 6.144Gb/s, 3.072 Gb/s, 1.536 Gb/s and 0.768 Gb/s.
For the CPRI application, the rates are 6.144Gb/s, 3.072 Gb/s, 2.4576 Gb/s, 1.2288 Gb/s, 0.6144 Gb/s.

10GBASE-LR at 10.3125Gbps
10GBASE-LW at 9.953Gbps
Other Optical Links
For the OBSAI application, the rates are 6.144Gb/s, 3.072 Gb/s, 1.536 Gb/s and 0.768 Gb/s.
For the CPRI application, the rates are 6.144Gb/s, 3.072 Gb/s, 2.4576 Gb/s, 1.2288 Gb/s, 0.6144 Gb/s.
1G/2G/4G/ 8G/10G Fiber Channel applications.

APPLICATIONS :

10GBASE-LR at 10.3125Gbps

10GBASE-LW at 9.953Gbps
Other Optical Links
For the OBSAI application, the rates are 6.144Gb/s, 3.072 Gb/s, 1.536 Gb/s and 0.768 Gb/s.
For the CPRI application, the rates are 6.
