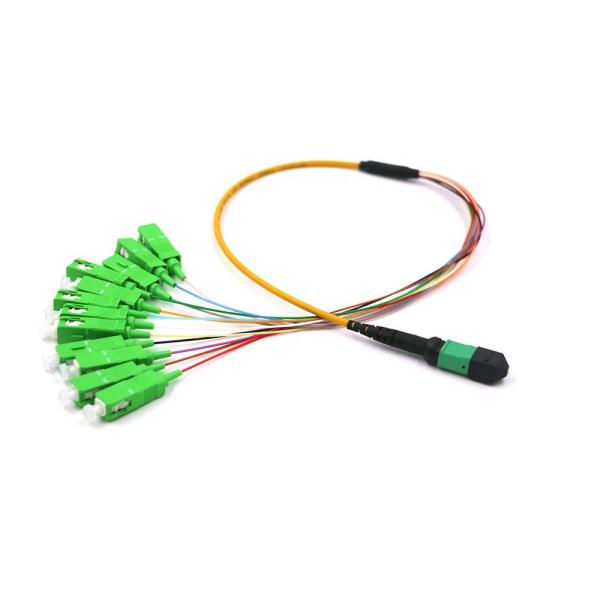

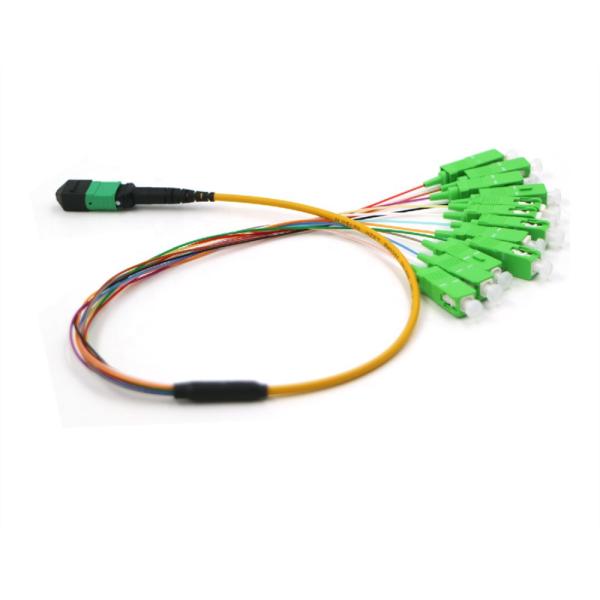

Elite MTP/MPO To SC/Apc OM5 LSZH Single Mode Patch Cord
Elite MTP/MPO To SC/Apc OM5 LSZH Single Mode Patch Cord
Elite MTP/MPO To SC/Apc OM5 LSZH Single Mode Patch Cord
Elite MTP/MPO To SC/Apc OM5 LSZH Single Mode Patch Cord
Elite MTP/MPO To SC/Apc OM5 LSZH Single Mode Patch Cord
Elite MTP/MPO To SC/Apc OM5 LSZH Single Mode Patch Cord
Specifications
Brand Name :
UNIFIBER-OEM
Model Number :
MPO-12 to SC
Certification :
ROHS
Place of Origin :
CHINA
MOQ :
10pcs
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
10000pcs/day
Delivery Time :
5-8days
Packaging Details :
PE bag or Carton Box
Fiber Count :
8/12/24
Fiber Type :
SM/MM/OM3/OM4/OM5
Cable Length :
0.5m Or Customized
Cable Jacket :
PVC,LSZH
Fan-out diameter :
0.9mm
Keywords :
MPO to SC patch cord
Description

Elite MTP/MPO to SC/apc 12 core single mode patch cord with 0.9mm fan-out for cassette module

The MPO/MTP breakout fan-out patch cord is a multi-fiber jumpers which is used in high density fiber networks. It's specifically designed for fast ethernet, data center, fiber channel and gigabit ethernet applications.MTP /MPO trunk cable, a cost-effective alternative to time-consuming field termination, is designed for high-density fiber patching in data centers which need space saving and reduce cable management troubles. UNIFIBER provide complete solution for your data center interconnection solution, including MPO/MTP Trunk Cable ,MPO/MTP Harnesses Cables ,MPO/MTP Fan out 0.9mm Patch Cords ,IP-Series MPO/MTP Assembly ,High Density Patch Cords ,MPO/MTP Loopback ,MT Patch Cords ,MPO/MTP Cassettes ,MPO/MTP Fiber Optic Patch Panel.

FEATURES
Fiber count available in 8, 12, 24
MTP/MPO connector type available in Male, Female

Insertion loss type available in Standard, Elite / Low Loss
Fanout length available in 0.5m, 1m, etc.

Cable jacket type available in OFNR, LSZH, OFNP

Fiber type available in SM (G652D, G657A1, G657A2), MM (OM1, OM2, OM3, OM4)
Multi-fiber connector type available in MTP, MPO with APC or PC polishing type
Single-fiber connector type available in LC, SC with APC or UPC polishing type

Applications:
High Density Cabling Solution
MPO/MTP cassette

Telecom system
Data Center

Parameters

MPO/MTP Termination
Type Single mode(APC polish) Multi mode(PC polish)
Fiber count 8,12,24,etc. 8,12,24,etc.
Fiber type G652D,G657A1 etc. OM1,OM2,OM3,OM4 etc.
Maximum Insertion Loss Standard Elite Low Loss Standard Elite Low Loss
≤0.75dB ≤0.35dB ≤0.75dB ≤0.35dB
Return Loss ≥55dB N/A
Working Temperature -40℃～80℃ -40℃～80℃
Test Wavelength 1310nm 850nm
Generic Connector Termination
Type Single mode Multimode
UPC APC PC
Max,Insertion Loss ≤0.3dB ≤0.3dB ≤0.3dB
Typical Insertion Loss 0.2dB 0.2dB 0.2dB
Return Loss ≥55dB ≥65dB ≥25dB
Working Temperature -40℃～80℃
Test Wavelength 1310nm 850nm
All MM SM shall be tested for IL

Elite MTP/MPO To SC/Apc OM5 LSZH Single Mode Patch CordElite MTP/MPO To SC/Apc OM5 LSZH Single Mode Patch Cord
