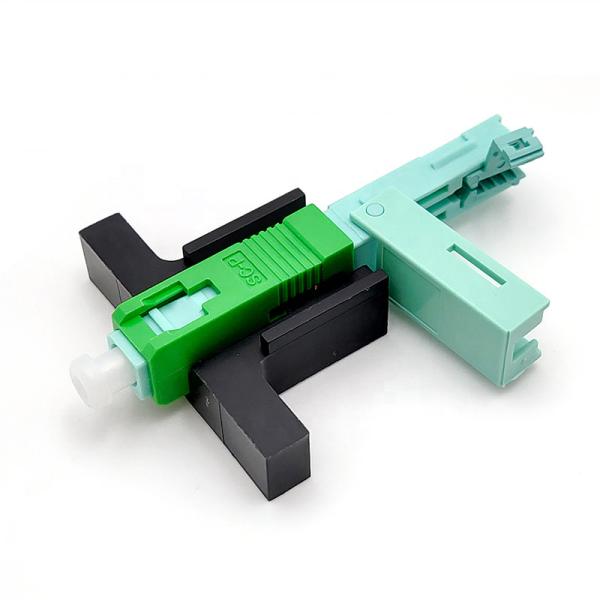

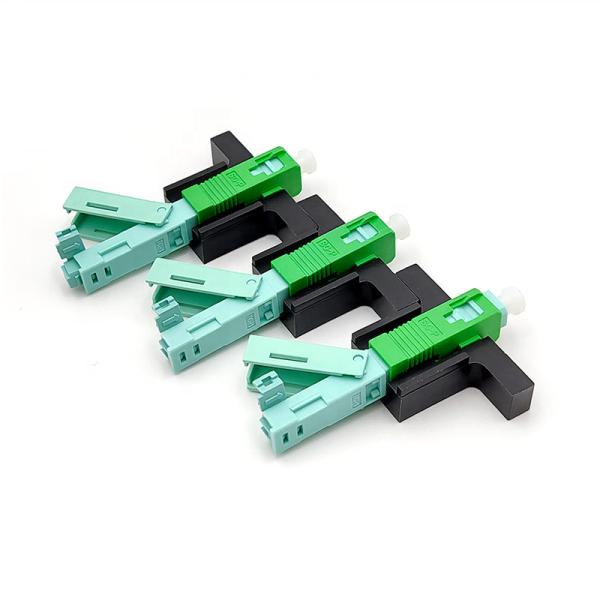

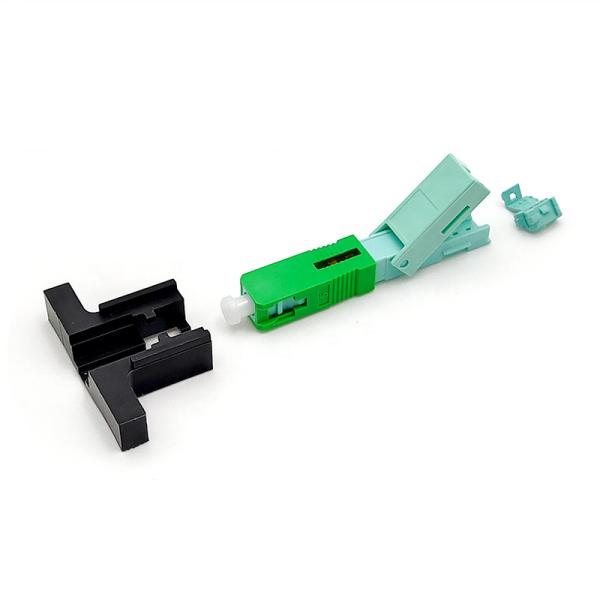

Indoor 3.0mm Cable SC/APC FTTH Field Assembly Connector
Indoor 3.0mm Cable SC/APC FTTH Field Assembly Connector
Indoor 3.0mm Cable SC/APC FTTH Field Assembly Connector
Indoor 3.0mm Cable SC/APC FTTH Field Assembly Connector
Indoor 3.0mm Cable SC/APC FTTH Field Assembly Connector
Indoor 3.0mm Cable SC/APC FTTH Field Assembly Connector
Indoor 3.0mm Cable SC/APC FTTH Field Assembly Connector
Indoor 3.0mm Cable SC/APC FTTH Field Assembly Connector
Specifications
Brand Name :
UNIFIBER-OEM
Model Number :
FTTH Field Assembly Connector
Certification :
ROHS
Place of Origin :
CHINA
MOQ :
500pcs
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
10000pcs/day
Delivery Time :
3-5days
Packaging Details :
blister case
Connector type :
SC/APC SC/UPC
Color :
Green
Durability :
>500 times
Operation Temperature :
-40~+75°C
Product :
FTTH Field Assembly Connector
Applicable for :
0.9mm Tight Buffer Fiber, 2.0mm, 3.0mm Drop Cable
Description

FTTH Field Assembly Connector SC/APC, China Fiber Quick Connector manufactures

This kind of Field Assembly Optical Connector is designed for fast and simple field termination of single fiber, without polishing or epoxy. The Connector is made with precision and high quality Zirconia ferrules and provides a highly reliable connection in most of the network application. The SC type is available with 250/900um buffed fiber, 2.0mm,1.6mm x 2.0mm, 2.0mm x 3.0mm and 3.0mm jacket cable. The universal type connector is also available, which is suitable for all of the 250/900um, 2mm and 3mm, 2.0mmx3.0mm cable diameter.

Features

Fast connecting and repeat, No special tools needed when installed.
No epoxy and polishing required, No special tools needed when installed.
Reliable, durability over 500 times mating
Easily installed, Quick and easy fiber termination in the field.
Can be intalled and maked repeatedly thus avoiding loss.Factory-installed fiber stub.

Applications

FTTH & FTTx;
Passive Optical Networks;
Broadband, CATV.

ITEM
Technical Parameters
Applicable for
Drop cable / Indoor cable
0.9mm Tight Buffer Fiber, 2.0mm, 3.0mm Drop Cable
Optical fiber diameter
SM(9/125), MM(50/125, 62.5/125)
125μm ( 657A & 657B )
Tight buffer diameter
250μm
Fiber mode
Single mode
Operation time
About 100s(no fiber cut)
Insert loss
≤ 0.3dB(1310nm & 1550nm)
Return loss
> 50db(PC), > 55db(UPC), > 65db(APC)
Fastening strength of naked fiber
>5 N
Fastening strength of naked fiber holder
>10 N
Tensile strength
>50 N
Using temperature
-40~+75°C
On-line tensile strength (20 N)
IL ≤ 0.5dB RL ≤ 5dB
Mechanical durability (500 times)
IL ≤ 0.5dB RL ≤ 5dB
Drop-off test (drop-off height 4m,once per direction, totally 3 times)
IL ≤ 0.5dB RL ≤ 5dB

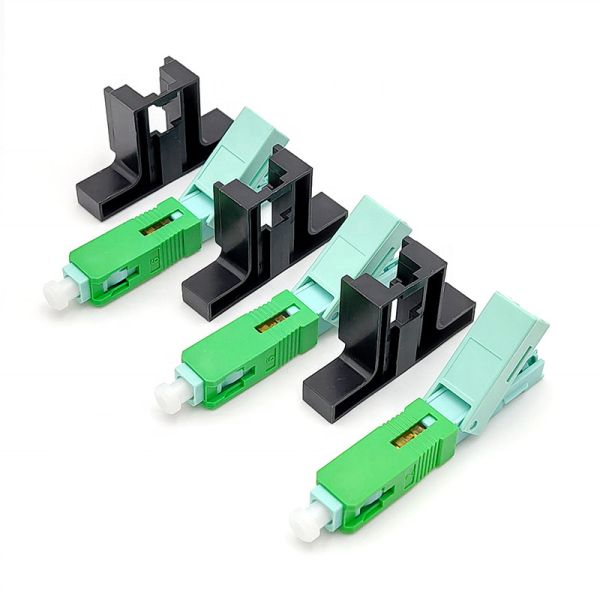

Indoor 3.0mm Cable SC/APC FTTH Field Assembly Connector
