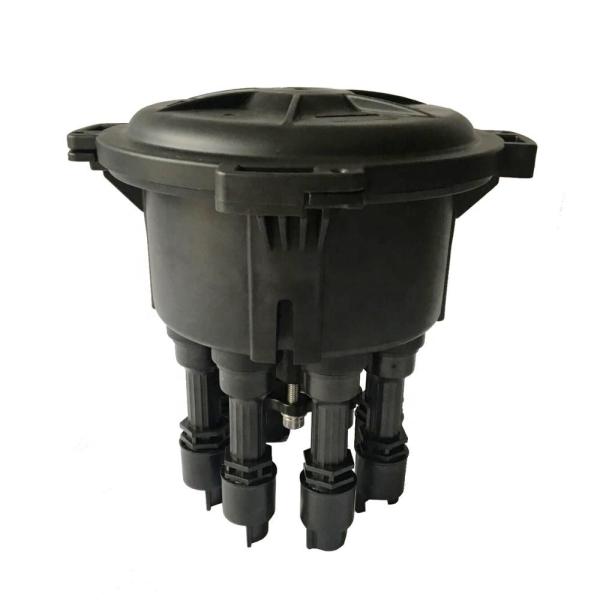

Outdoor Fiber Optic Termination Box , FTTH 12 Core Fiber Optic Splice Closure IP68
Outdoor Fiber Optic Termination Box , FTTH 12 Core Fiber Optic Splice Closure IP68
Outdoor Fiber Optic Termination Box , FTTH 12 Core Fiber Optic Splice Closure IP68
Outdoor Fiber Optic Termination Box , FTTH 12 Core Fiber Optic Splice Closure IP68
Outdoor Fiber Optic Termination Box , FTTH 12 Core Fiber Optic Splice Closure IP68
Outdoor Fiber Optic Termination Box , FTTH 12 Core Fiber Optic Splice Closure IP68
Outdoor Fiber Optic Termination Box , FTTH 12 Core Fiber Optic Splice Closure IP68
Outdoor Fiber Optic Termination Box , FTTH 12 Core Fiber Optic Splice Closure IP68
Specifications
Brand Name :
UNIFIBER
Model Number :
GJS-0208S
Certification :
ROHS
Place of Origin :
CHINA
MOQ :
100pcs
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
1000pcs/day
Delivery Time :
5-8days
Packaging Details :
Carton box
Material :
ABS plastic
Max capacity :
12
Installation method :
outdoor wall mounted, pole mounted
Application :
FTTH
Product name :
mini terminal box
Color :
Black
Description

IP68 outdoor FTTH 12 core mini terminal box fiber optic splice closure, adopt to 1x8 mini steel tube PLC splitter

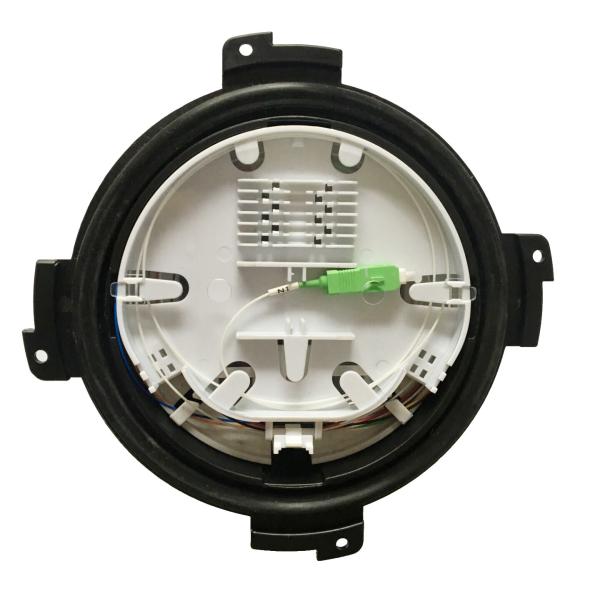

it is small size, light weight, large capacity:12cores for fusion ,can hold 1pc 1 to 8 plc splitter in the fusion splice tray, and there is SC adapter holder to fix the input of the splitter, you can put the splitter steel tube in the tray too.with enough space for fiber stroage and management.

Features

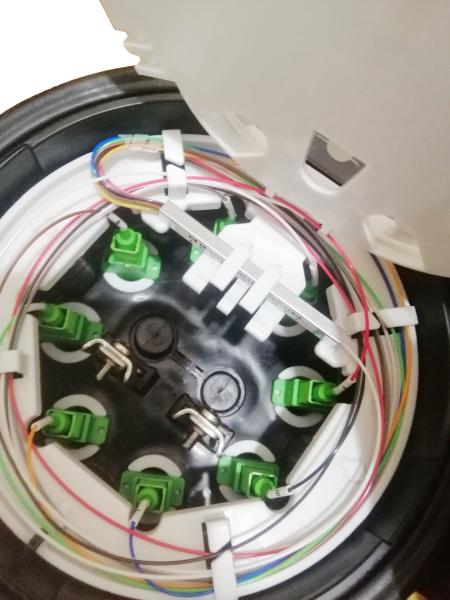

the top layer is for fusion and splitter input fix.

the second layer down the fusion splice tray

adopt to 1x8 mini steel tube PLC splitter

With rubber seal for IP65 waterproof grade.

Application
Fiber Optic Communication System
FTTH Project
LAN Terminal
CATV

Specification

Model Tray capacity Dimension/mm Entry port & Available cable dia. Raw material
GJS-0208S 12cores 183*182 1 oval port : Ф10-Ф16
8 pcs SC adapter ports for drop cable		 Dome & base :
Modified P.P
Tray: ABS
Sealing method Full Mechanical sealing way. Application Wall or pole mount
Bending Radius > 40mm Durability 25 years
Available Splitter 1 piece 1:8 / 2:8 micro PLC splitter
Outdoor Fiber Optic Termination Box , FTTH 12 Core Fiber Optic Splice Closure IP68
