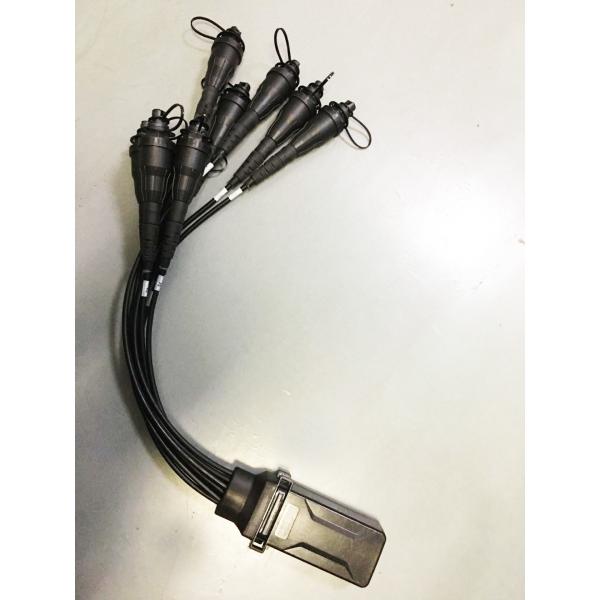

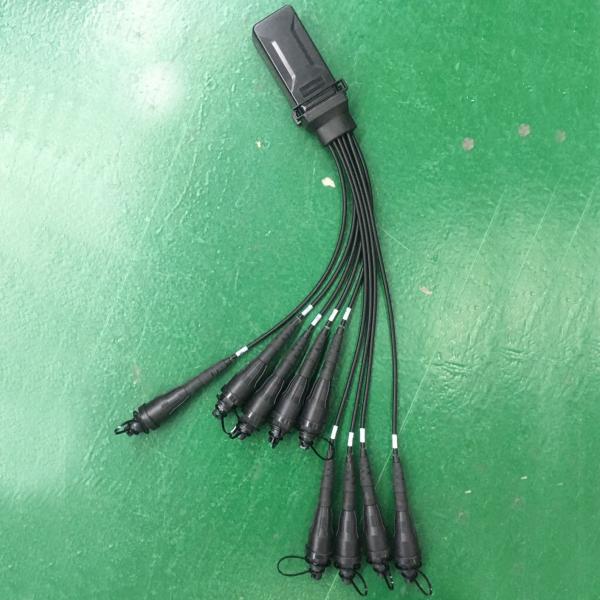

IP68 Waterproof Fiber Cable Assembly FTTH FTTB FTTX Network 1X4 1X8 Mini Splitter Closure
IP68 Waterproof Fiber Cable Assembly FTTH FTTB FTTX Network 1X4 1X8 Mini Splitter Closure
IP68 Waterproof Fiber Cable Assembly FTTH FTTB FTTX Network 1X4 1X8 Mini Splitter Closure
IP68 Waterproof Fiber Cable Assembly FTTH FTTB FTTX Network 1X4 1X8 Mini Splitter Closure
IP68 Waterproof Fiber Cable Assembly FTTH FTTB FTTX Network 1X4 1X8 Mini Splitter Closure
IP68 Waterproof Fiber Cable Assembly FTTH FTTB FTTX Network 1X4 1X8 Mini Splitter Closure
Specifications
Brand Name :
UNIFIBER-OEM
Model Number :
miniSC
Certification :
ROHS
Place of Origin :
CHINA
MOQ :
10pcs
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
500pcs/day
Delivery Time :
5~7 Business days
Packaging Details :
Carton box
No. of Port :
4/8
Connector :
SuperTap Corning optitap H/Optic Mini SC connector
Waterproof Grade :
IP68
Application :
FTTH FTTB FTTX Network
Description

IP68 Outdoor waterproof 1X4 1X8 mini splitter closure Mating with SuperTap Corning optitap H/Optic Mini SC connector

Mini splitter Closure provide the most cost-effective method of deploying optical fiber in outside plant distribution networks at speeds significantly fast than traditional field installations. The assemblies guarantee an easy, one-step connection system with the combined push-pull insertion and nut-style mechanical latch.Mini splitter closure can be optional loaded with any outdoor connector. Such as, Fullaxs,ODVA,PDLC, Optitab,Mini SC, H connector.etc. And cable can be armored or non-armored. TPU jacket or LSZH jacket...

Features:

Provides moisture and dust protection for use in harsh industrial environments.IP68 protection
Drastically reduces field splicing with a predetermined loss at each waterproof tether access point.
Utilize traditional field installation techniques for aerial, below ground and duct applications.
Reduce installation time by as much as 50 % per network access point.
(-40 to+70∶) is ideal for indoor or outdoor applications
Mark different colors on dust cap

Application
Allows flexibility to use factory terminated assemblies or pre-terminated or field installed assemblies;
Suitable for FTTA and outdoor temperature extremes;
Ensures functionality in harsh weather environments ;
Can be installs without special tooling;

Provides bend protection for installation and long term use.

Type
SM-UPC
SM-APC
MM-UPC
Typical
MAX
Typical
MAX
Typical
MAX
Insertion loss
≤0.1
≤0.3dB
≤0.15
≤0.3dB
≤0.05
≤0.3dB
Return loss
≥50dB
≥30dB
≥30dB
Durability
500 mating cycles
Working temperature
-40 to + 85℃

IP68 Waterproof Fiber Cable Assembly FTTH FTTB FTTX Network 1X4 1X8 Mini Splitter Closure
