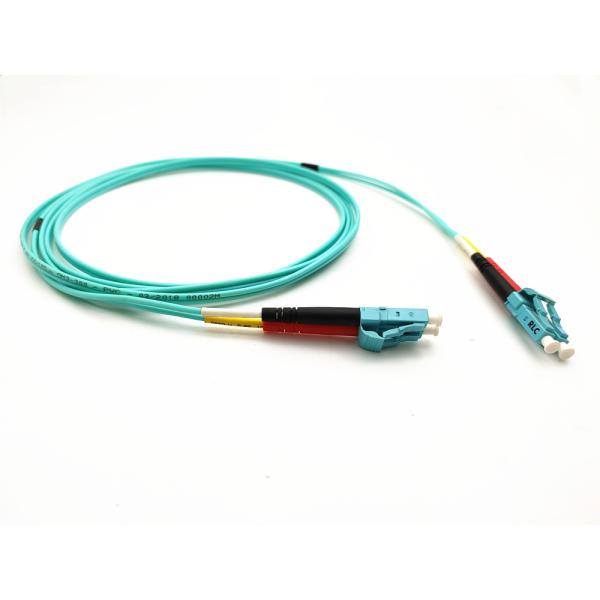

Telecom Data Centre Premium Fiber Optical Patch Cord OM3 OM4 LC To LC Customized
Telecom Data Centre Premium Fiber Optical Patch Cord OM3 OM4 LC To LC Customized
Telecom Data Centre Premium Fiber Optical Patch Cord OM3 OM4 LC To LC Customized
Telecom Data Centre Premium Fiber Optical Patch Cord OM3 OM4 LC To LC Customized
Telecom Data Centre Premium Fiber Optical Patch Cord OM3 OM4 LC To LC Customized
Telecom Data Centre Premium Fiber Optical Patch Cord OM3 OM4 LC To LC Customized
Telecom Data Centre Premium Fiber Optical Patch Cord OM3 OM4 LC To LC Customized
Telecom Data Centre Premium Fiber Optical Patch Cord OM3 OM4 LC To LC Customized
Specifications
Brand Name :
UNIFIBER-OEM
Model Number :
LC-LC
Certification :
ROHS
Place of Origin :
CHINA
MOQ :
10PCS
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
100000pcs/day
Delivery Time :
3-5days
Packaging Details :
PE bag/carton box
Connector type :
FC/SC/LC/ST
Cable color :
Yellow or Customized
Fiber Count :
Duplex/Simplex
Cable jacket :
PVC/LSZH/OFNR
Description

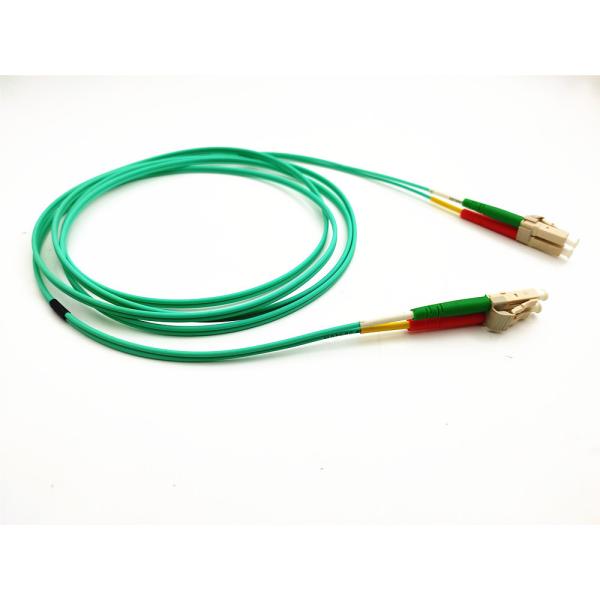

Telecom/Data Centre Premium fiber optic patch cable OM3 OM4 LC to LC multimode duplex with green/red/black boot

UNIFIBER with a variety of connector boots supporting multiple connector types; boots are featured with an assortment of colors to choose from.. They come with your choice of simplex or duplex cable configuration .Extensive range of fiber patch cables are terminated with state-of-the-art connectors and available in any combination of ST, SC, LC and MTRJ with PC, UPC or APC polish types to meet your standard or custom configurations.


FEATURES
Low insertion loss and back reflection loss
Good in repeatability
Good in exchange

Ferrule end surface pre-domed
Excellent mechanical endurance
Green Production, CE, RoHS Standard
APPLICATION
1. Telecommunications
2. CATV, LAN, MAN, WAN, Test &Measurement
3. Military industry
4. Medical

Parameters

Item SingleMode MultiMode
Insertion loss ≤0.2dB ≤0.3dB
Return loss PC≥50dB, APC≥55dB, UPC≥60dB
Insert-pull test 1000 times
Repeatability ≤0.1
Tensile strength ≥10kg
Operating temperature -40℃~ +85℃
Ceramic ferrule spec 125.5um concentricity deviations:≤1μm 127um concentricity deviations:≤3μm
Suitable fiber 9/125μm 50/125μm, 62.5/125μm

Telecom Data Centre Premium Fiber Optical Patch Cord OM3 OM4 LC To LC CustomizedTelecom Data Centre Premium Fiber Optical Patch Cord OM3 OM4 LC To LC Customized
