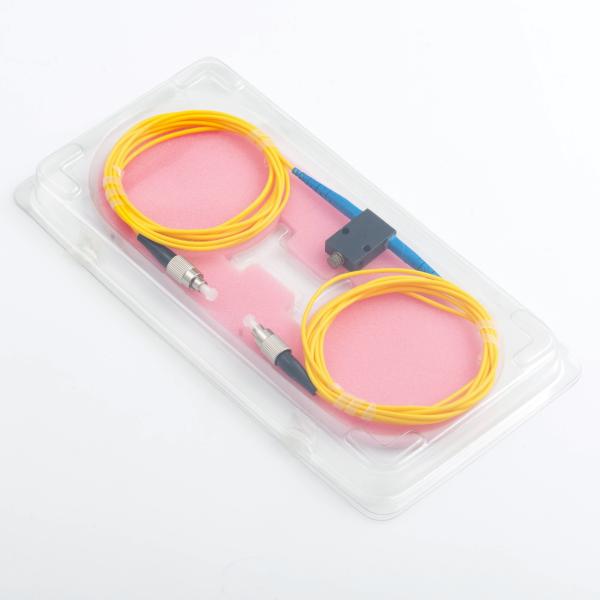

60dB FC UPC Variable Fiber Optic Attenuator Single Mode
60dB FC UPC Variable Fiber Optic Attenuator Single Mode
60dB FC UPC Variable Fiber Optic Attenuator Single Mode
60dB FC UPC Variable Fiber Optic Attenuator Single Mode
60dB FC UPC Variable Fiber Optic Attenuator Single Mode
60dB FC UPC Variable Fiber Optic Attenuator Single Mode
Specifications
Brand Name :
UNIFIBER-OEM
Model Number :
Variable Fiber Optic VOA In-Line Attenuator
Certification :
ROHS
Place of Origin :
CHINA
MOQ :
10pcs
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
1000pcs/day
Delivery Time :
3~5 business days
Packaging Details :
Blister Case
Product :
Single Mode FC/UPC Variable Fiber Optic VOA In-Line Attenuator 0~60dB
Fiber Mode :
Single Mode or Multimode
Wavelength :
1310~1550(SM)/850~1300(MM)
Attenuation Range :
0 ~ 60dB
Adjustment type :
Hand adjustment or Screw adjustment
Pigtail Style: :
3.0mm
Connector :
FC/UPC
Max Optical Input Power :
200mW
Attenuation Accuracy :
±0.8dB
Description

Single Mode FC/UPC Variable Fiber Optic VOA In-Line Attenuator 0~60dB

As optical passive devices, Fiber Optic VOA In-Line Attenuator are mainly used in fiber optic to debug optical power performance & optical instrument calibration correction & fiber signal attenuation to ensure the optical power in a stable and desired level in the link without any changes on its original transmission wave.

Key Features
High Precise attenuation value
Perfect environmental stability and reliability
Low additional loss
Flawless end face
Wide attenuation range (variable)


Applications
Fiber optical telecommunication system
FTTH, CATV, LAN
Subscriber loop
Fiber optical sensor
Testing equipment

Specification

Parameter Specification
Type(nm) 1310 1550 1310/1550 850/1310
Wavelength (nm) 1310±50 1550±50 1260~1650 850±40 or 1310±40
Attenuation range(dB) 0.8 ~ 60
Original loss(dB) ≤0.8
Return Loss(dB) ≥50 ≥30
Fiber type SMF-28 50/125 or 62.5/125 MM
PDL(dB) ≤0.15
Operating Temperature (℃) 0 ~ + 70
Storage Temperature (℃) 40 ~ + 85
Dimensions (mm) 26 x 18 x 8
