Heat Shrinkable 288 Core Fiber Optic Enclosures IP68 Waterproof
Heat Shrinkable 288 Core Fiber Optic Enclosures IP68 Waterproof
Heat Shrinkable 288 Core Fiber Optic Enclosures IP68 Waterproof
Heat Shrinkable 288 Core Fiber Optic Enclosures IP68 Waterproof
Heat Shrinkable 288 Core Fiber Optic Enclosures IP68 Waterproof
Heat Shrinkable 288 Core Fiber Optic Enclosures IP68 Waterproof
Specifications
Brand Name :
UNIFIBER-OEM
Model Number :
GJS-M7/RS-A
Certification :
ROHS
Place of Origin :
CHINA
MOQ :
10pcs
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
1000pcs/day
Delivery Time :
3~5 business days
Packaging Details :
Carton box
Max Capacity :
144/288
Splitter Type :
1:16(2pcs), 1:32(1pcs)
Splice tray capacity :
24F
Max quantity of splice tray :
6
Sealing type :
heat shrinkable tube, silicon rubber
Cable Ports :
6 round ports+1 oval port
Cable Diameter :
Φ7~Φ20
Description

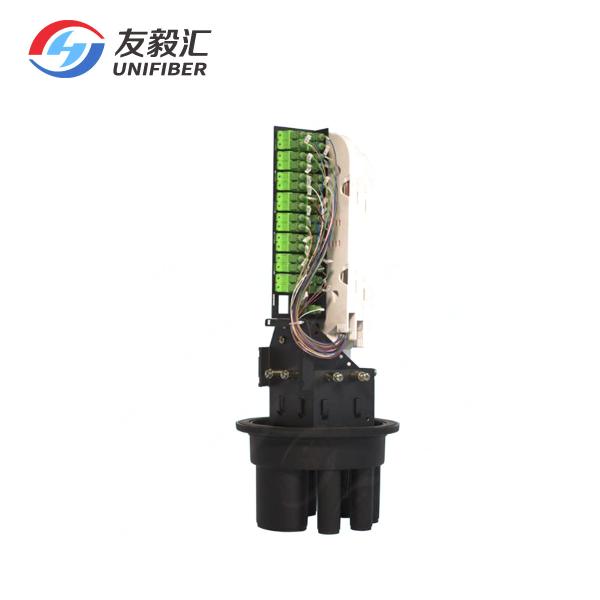

Heat shrinkable 144/288 core fiber optic enclosures outdoor IP68 waterproof

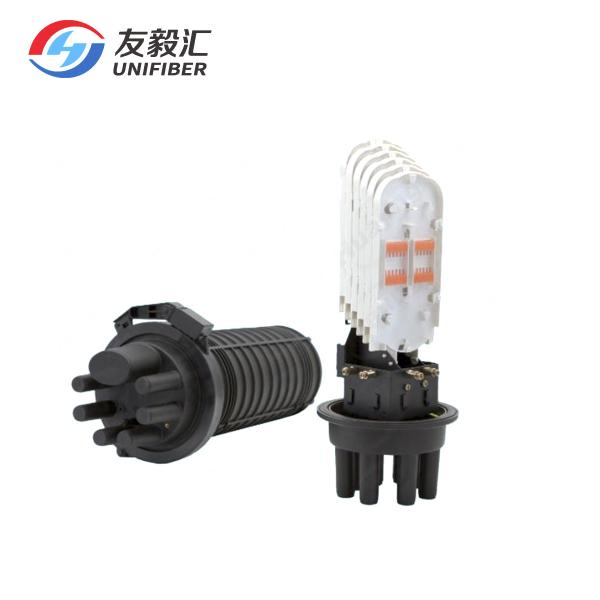

GJS-M7-RS dome closure is used in aerial, duct, wall-mounting, pole mounting applications, for the straight-through and branching splice of the fiber cable. It has heat shrinkable sealing structure.
Product Features:
1. The body adopt modified plastic MPP, with high strength and corrosion resistance, which has long lifetime and excellent sealing performance.

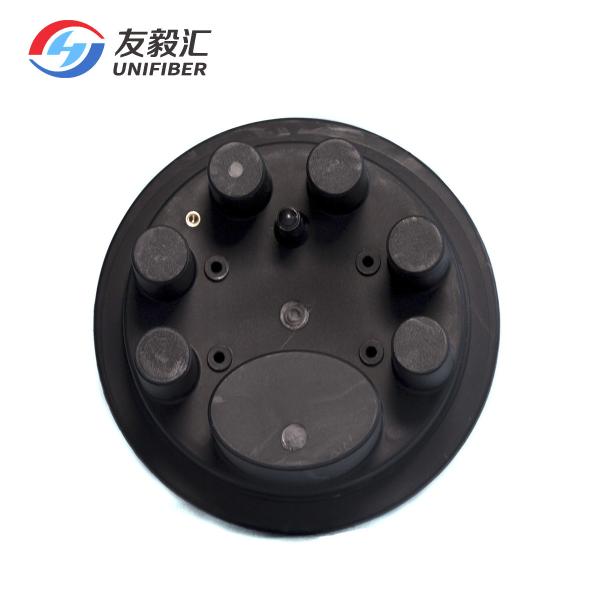

2. It has 7 cable ports in total, 6 Φ20mm round cable ports, and 1 oval por,t which can let in and out 1pc Φ42mm cable or 2pcs Φ20mm cables, as well as for few small size cables at the same time.
3. The closure can be reopened, and work well in the environment of -40℃～＋65℃ and guarantee the good sealing performance.
4. Voltage Strength: under 15KV direct current,without breakdown or flashover phenomenon.
5. Insulation Resistance: ≥2×104MΩ
6. Tensile Force: ≥800N
7. Leakproofness: inflate the closure,making internal pressure to 100Kpa,then put the closure into the water over 15min,without any bubbles or pressure drop happened.
8. Impact Strength: can bear 16N.m.after 3 impact times,there is no crack on the body.

Specification:

Type GJS-M7/RS-A distribution type GJS-M7/RS-A splitting type
Size ￠230*440 ￠230*440
Cable ports (inlet/outlet) 4 in/ 4 out 4 in/ 4 out
Cable diameter (mm) ￠7~￠20 ￠7~￠20
Splice tray capacity

24 (single fiber) / or

72 (single fiber)

 24 (single fiber)
Max splice tray number 6 or 4 4
Max splitting — 1:16(2pcs), 1:32(1pcs)
Max core capacity 144 / 288 288
Sealing type Heat shrinkable tube, silicon rubber

Heat shrinkable tube, silicon rubber
