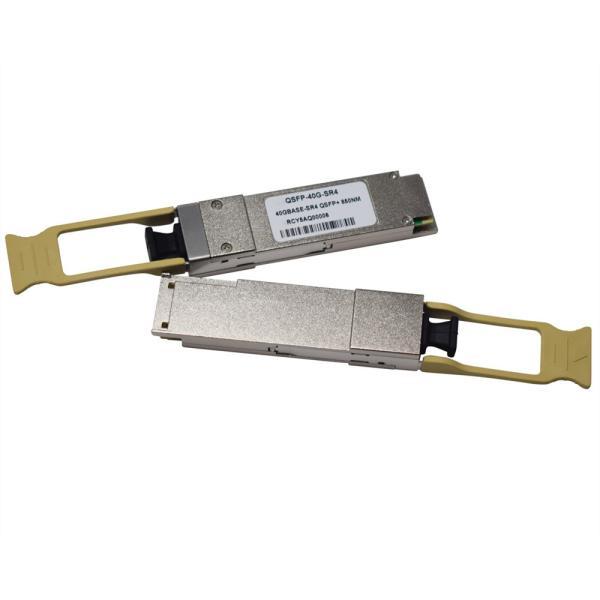

Full Duplex Channels MTP Sfp Optical Transceiver Multimode
Full Duplex Channels MTP Sfp Optical Transceiver Multimode
Full Duplex Channels MTP Sfp Optical Transceiver Multimode
Full Duplex Channels MTP Sfp Optical Transceiver Multimode
Full Duplex Channels MTP Sfp Optical Transceiver Multimode
Full Duplex Channels MTP Sfp Optical Transceiver Multimode
Specifications
Brand Name :
UNIFIBER-OEM
Model Number :
40GBASE QSFP+ SR4
Certification :
CE RoHS FCC
Place of Origin :
CHINA
MOQ :
5pcs
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
1000pcs/day
Delivery Time :
5~7 Business days
Packaging Details :
Individual package
Product :
Cisco compatiable 40G QSFP+ SR4 850nm Multimode Transceiver Module 100m
Wavelength :
850nm
Data Rate :
40G
Transmission Distance :
100m
Interface :
MTP/MPO
Brand :
Can Be Customized
Description

Cisco compatiable 40G QSFP+ SR4 850nm Multimode Transceiver Module 100m

Multi-Mode InfiniBand SDR DDR QDR 40G QSFP+ Transceiver MPO Connector 40G 850nm 100m/300m QSFP SR4 It integrates four data lanes in each direction with 40 Gbps bandwidth. And these modules are designed to operate over multimode fiber systems using a nominal wavelength of 850nm. The electrical interface uses a 38 contact edge type connector. The optical interface uses an 12 fiber MPO connector.

Features :
MTP/MPO optical connector

4 independent full-duplex channels
Up to 11.2Gbps data rate per channel
Capable of over 100m Transmission on OM3 multi-mode ribbon fiber
QSFP MSA compliant
Digital diagnostic capabilities
Single +3.3V power supply
Operating case temperature:0~70C
Maximum 1.5W operation power
RoHS-6 compliant
Compliant with IEEE802.3ba
Compliant with QSFP+ MSA:SFF-8436


Applications :
40G Telecom connections

40G Ethernet
Infiniband 4X SDR DDR QDR

Order Information

QSFP-40G-SR4 QSFP+, 40GBASE-SR4, MMF, 850nm, 150M, MPO
QSFP-40G-CSR4 QSFP+, 40GBASE-ESR4, MMF, 850nm, 300M (OM4) - MPO
QSFP-40G-LR4 QSFP+, 40GBASE-LR4, SMF, 1270~1330,10KM LC
QSFP-40G-PSM-LR4 QSFP+, 40GBASE-LR4, SMF, PSMLR 1310,10KM MPO
QSFP-40G-LR4 20KM QSFP+, 40GBASE-LR4, SMF, 1270~1330,20KM LC
QSFP-40G-ER4 40KM 40km 1270~1330, LC CWDM4+ APD

Full Duplex Channels MTP Sfp Optical Transceiver MultimodeFull Duplex Channels MTP Sfp Optical Transceiver Multimode
