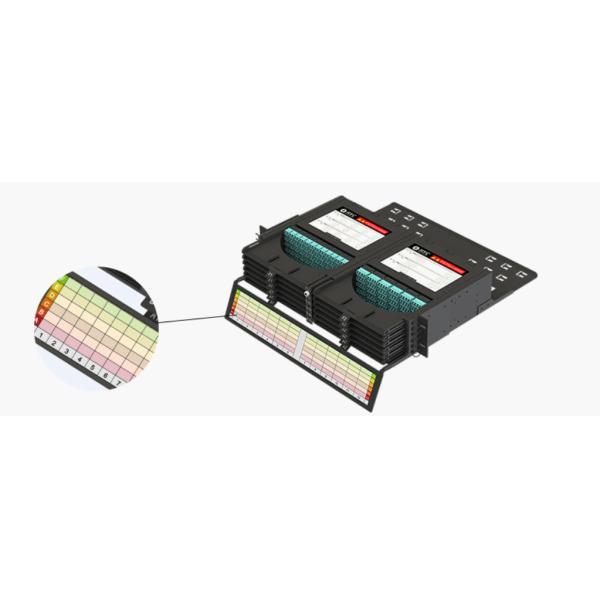

2U 288 Port MPO Fiber Optic Patch Panel With Layered Lockable Drawers
2U 288 Port MPO Fiber Optic Patch Panel With Layered Lockable Drawers
2U 288 Port MPO Fiber Optic Patch Panel With Layered Lockable Drawers
2U 288 Port MPO Fiber Optic Patch Panel With Layered Lockable Drawers
2U 288 Port MPO Fiber Optic Patch Panel With Layered Lockable Drawers
2U 288 Port MPO Fiber Optic Patch Panel With Layered Lockable Drawers
Specifications
Brand Name :
UNIFIBER-OEM
Model Number :
2U 288 Port MPO Fiber Patch Panel
Certification :
ROHS
Place of Origin :
CHINA
MOQ :
5
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
500pcs/day
Delivery Time :
3~5 business days
Packaging Details :
Carton box
Product :
2U 288 Port MPO Fiber Patch Panel
Materials :
Cold Rolled Steel
Dimension :
485*470*88mm(2U)
Capacity :
288 port
Connector :
LC
Cassette capacity :
24 fiber
No of Cassettes :
12
Application :
Data Center Solution
Description

This 2U Rack Mount HD Fiber Enclosure supports maximum 288 fibers. It is mainly installed in server cabinet with capability of housing 12pcs high-density easy-plug MTP / MPO to LC fiber panels or cassettes developed by UNIFIBER. This solution contributes to greater network availability that especially ideal for connection and cable management of Data Center MDA, IDA, HDA and other optical fiber backbones. It can be pre-terminated with MPO/MTP switching modules or MPO/MTP adapter front panels to achieve interconnect and cross-connect of backbone cables and active devices.

Features:

Standard EIA 19'' rack rails

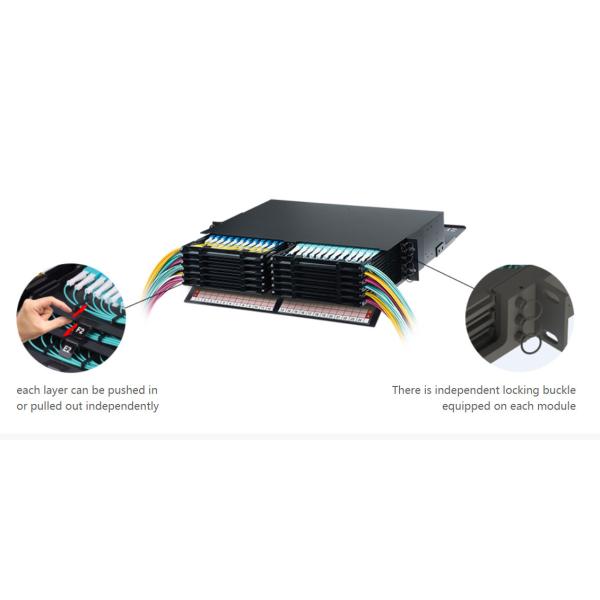

Rivet buckle lockable design avoid sliding

Clear ID marked and Easy to Locate

Improve space to make sure bending rate of fiber Fiber

Application

High density fiber cabling system

Fast cabling system

Backbone network

High integration equipment and device

Data center, SAN system etc.

Specification

Specification
Items
1RU ODF
2RU ODF
4RU ODF
Dimension
435x470x44mm
435x470x88mm
435x470x176mm
Weight(contain cassette)
3.7 kg
6.4 kg
11.2kg
Packing box
539x366x94mm
539x366x94mm
539x336x226mm
Cassette QTY
6 pcs
12 pcs
24 pcs
Capacity
LC 144 cores/ SC 72 cores
LC 288 cores/ SC 144 cores
LC 288 cores/ SC 144 cores
Operating Temperature
-20℃～+60℃
Patch cord Category
MPO/MTP-LC/SC Fan out or LC/SC trunk patch cord

2U 288 Port MPO Fiber Optic Patch Panel With Layered Lockable Drawers2U 288 Port MPO Fiber Optic Patch Panel With Layered Lockable Drawers
