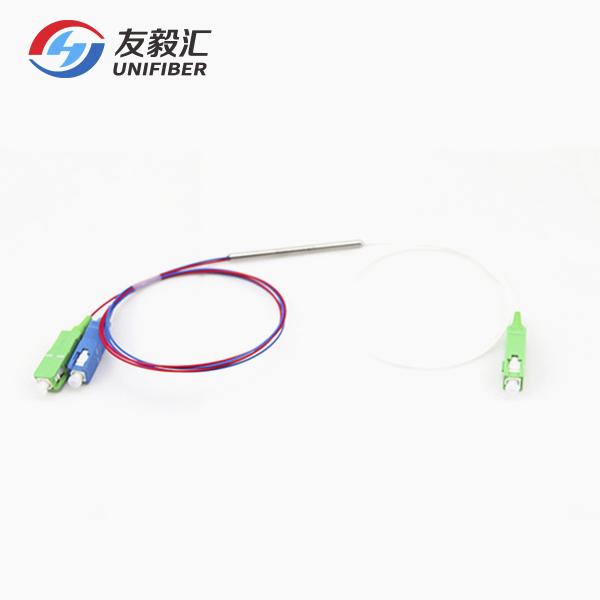

High Isolation CATV WDM Coupler 1310/1550nm Single Mode 1x2 Fused
High Isolation CATV WDM Coupler 1310/1550nm Single Mode 1x2 Fused
High Isolation CATV WDM Coupler 1310/1550nm Single Mode 1x2 Fused
High Isolation CATV WDM Coupler 1310/1550nm Single Mode 1x2 Fused
High Isolation CATV WDM Coupler 1310/1550nm Single Mode 1x2 Fused
High Isolation CATV WDM Coupler 1310/1550nm Single Mode 1x2 Fused
Specifications
Brand Name :
UNIFIBER-OEM
Model Number :
1310/1550nm Single Mode 1x2 Fused WDM Coupler
Certification :
ROHS
Place of Origin :
CHINA
MOQ :
10pcs
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
1000pcs/day
Delivery Time :
3~5 business days
Packaging Details :
Blister Case
Product :
1310/1550nm Single Mode 1x2 Fused WDM Coupler
Wavelength :
1310/1550nm
Fiber Type :
Corning SMF-28e
Operating bandwidth (nm) :
±15
Configuration :
1×2 or 2×2
Pigtail type :
250um bare fiber or 900um loose tube
Package :
Steel tube
Application :
CATV
Description

1310/1550 WDM can be used to combine or split 1310nm and 1550nm optical signals, which double the fiber transmission capability and ensure bi-direction communication in a single fiber

Features
Ultra Low Insertion Loss

Ultra High Isolation

Low Polarization Sensitivity

High Stable & Reliable


Application

Telecommunications

CATV

Subscriber Loop

Local Area Networks

Parameter WA WB WC
Grade P A P P
Insertion Loss(Max)(dB) 0.3 0.4 0.7 1.2
lsolation(Min.)(dB) ≥17 ＞16 ＞34 ＞45
PDL(dB) ≤0.05 ＜0.10 ＜0.10 ＜0.15
Operating Wavelength (nm) 1295 ~ 1325/1528 ~ 1565
Return Loss (Min.) (dB) ≥55
Directivity(dB) ≥55
Operating Temperature (℃) -10~+70
Storage Temperature (℃) -40~+85
Fiber Pigtail Length (m) 1 m or custom length
Fiber Type Corning singlemode SMF-28
Port Configuration 1x2 or 2x2

High Isolation CATV WDM Coupler 1310/1550nm Single Mode 1x2 Fused
