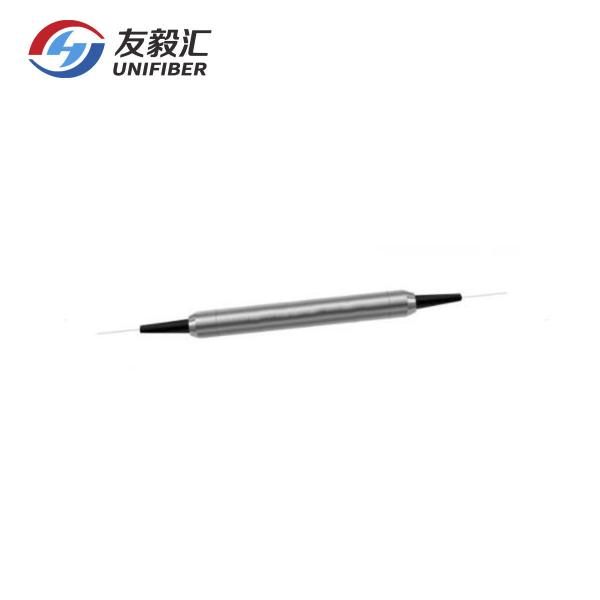

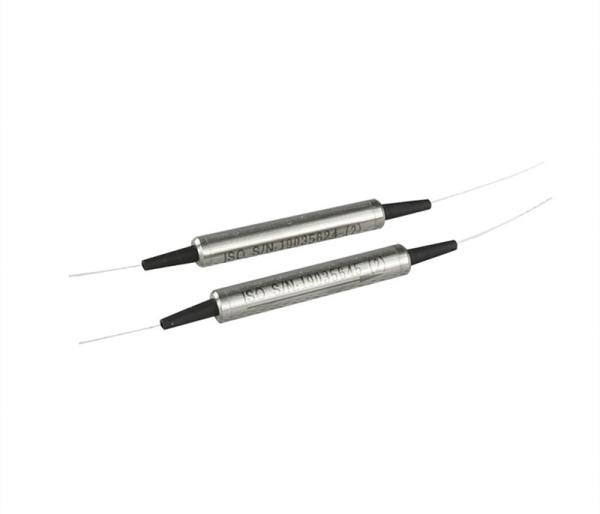

Single Mode 900um Jacket 5W 10W Fiber Optical Isolator 1480nm
Single Mode 900um Jacket 5W 10W Fiber Optical Isolator 1480nm
Single Mode 900um Jacket 5W 10W Fiber Optical Isolator 1480nm
Single Mode 900um Jacket 5W 10W Fiber Optical Isolator 1480nm
Specifications
Brand Name :
UNIFIBER-OEM
Model Number :
High Power Fiber Optical Isolator
Certification :
ROHS
Place of Origin :
CHINA
MOQ :
10pcs
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
1000pcs/day
Delivery Time :
3~5 business days
Packaging Details :
Blister Case
Product :
High Power Fiber Optical Isolator
Isolator Type :
Single stage or Dual Stage
Wavelength :
1310nm/1480nm/1550nm/L Band
Pigtail Style :
Bare Fiber/ 900um jacket
Connector Type :
LC/SC/FC/ST or none
Package :
Steel tube
Description

The Polarization Insensitive Isolator is designed and manufactured according to Telcordia standard. The unique manufacturing process and optical path epoxy-free design enhance the device high power handling capability. The device is characterized with high performance, high reliability and low cost. It has been widely used in EDFAs, fiber lasers, transmitters and other fiber optics communication equipments to suppress back reflection and back scattering.

Features

High IsolationLow Insertion Loss
High Return Loss
Testing
Low Polarization Sensitivity

Application

Fiber optic AmplifiersCATV Fiber optic Links
Fiber optic Systems Testing
Fiber optic LAN Systems
Telecommunications

Specification

Parameter Unit HP ISO 13 / 14 / 15 HPISO 980 HPISO 1064
Single Stage Dual Stage
Operating wavelength nm 1310 or 1480 or 1550 980 1064
Bandwidth nm ±15 ±30 ±10 ±10
Typical isolation dB 42 55 32-40 32-40
Min isolation dB 32 42 25 26
Typical Insertion loss dB 0.5 0.65 0.6 0.6
Maximum Insertion loss dB 0.7 0.8 1.0 1.0
Polarization dependent loss dB ≤0.05 ≤0.1 ≤0.1 ≤0.15
Polarization mode dispersion ps 0.2 (0.05 available upon request)
Input/ Output return loss dB ≥65/55 ≥65/55 ≥50/50 ≥50/50
Max Power supply mW 1,3,5,10,20 or specify 1 1,3,5,10, 20 or specify
Fiber Type - Corning SMF-28 HI 1060 or LMA Fiber
Operating temperature °C -20 ~ + 70
Storage temperature °C -40 ~ +85

Note: 1. All parameters are for device without connectors.

2. Special specifications can be customized according to customer requirements.
