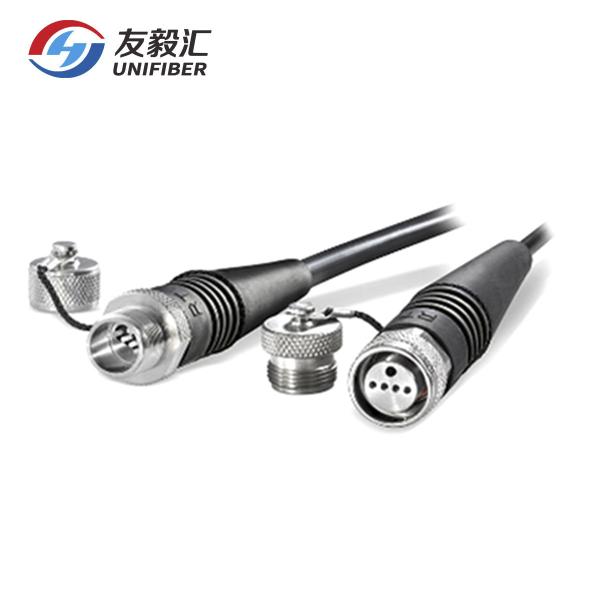

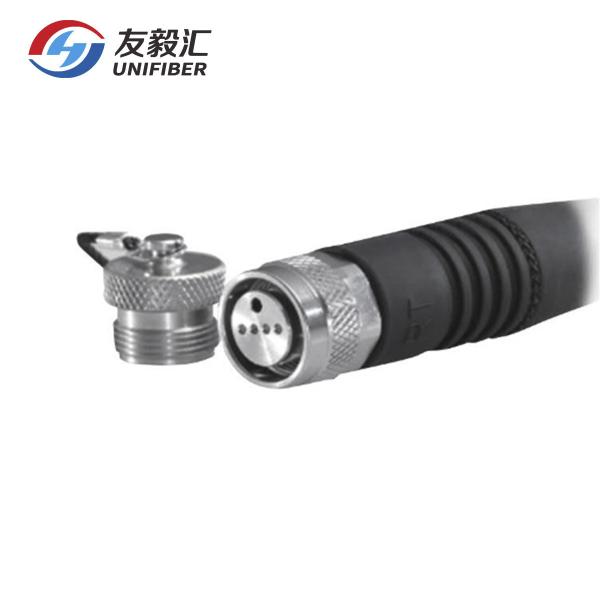

RQC ODC-4 Fiber FTTA CPRI Cable Assembly Rosenberger Quad Connector
RQC ODC-4 Fiber FTTA CPRI Cable Assembly Rosenberger Quad Connector
RQC ODC-4 Fiber FTTA CPRI Cable Assembly Rosenberger Quad Connector
RQC ODC-4 Fiber FTTA CPRI Cable Assembly Rosenberger Quad Connector
RQC ODC-4 Fiber FTTA CPRI Cable Assembly Rosenberger Quad Connector
RQC ODC-4 Fiber FTTA CPRI Cable Assembly Rosenberger Quad Connector
RQC ODC-4 Fiber FTTA CPRI Cable Assembly Rosenberger Quad Connector
RQC ODC-4 Fiber FTTA CPRI Cable Assembly Rosenberger Quad Connector
Specifications
Brand Name :
UNIFIBER-OEM
Model Number :
Rosenberger Quad Connector RQC
Certification :
ROHS
Place of Origin :
CHINA
MOQ :
10pcs
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
500pcs/day
Delivery Time :
3~5 business days
Packaging Details :
PE bag
Product :
Rosenberger Quad Connector RQC Cable Assembly
Connector :
Rosenberger Quad Connector RQC
Waterproof Grade :
IP68
Fiber Counts :
2/4
Fiber Type :
SM/MM
Jacket :
LSZH,TPU
Diameter :
5mm~7mm
Description

Rosenberger Quad Connector RQC Outdoor Waterproof ODC-4 Fiber FTTA CPRI Cable AssemblyUsing as flexible connection joint in fiber optic network, where there is device with a fiber optic interface installed in outdoor or harsh environment. Typical is for mobile communication (FTTA), broadcast, smart-grid cabling application.

Feature

•4 fibers connector
•Support singlemode and multimode
•Robust connector system with screwed locking mechanism
•Components of the N coaxial connector according to MILPRF-39012 enable a conversion
•With the standard panel cutout, the receptacle can easily replace a coaxial connector type
•Mated or with attached protection cap, plug and receptacle are sealed according to IEC 60529 IP67
•Captive protection cap, plastic dust cap and metal cap without rope are available
•PC and APC are available

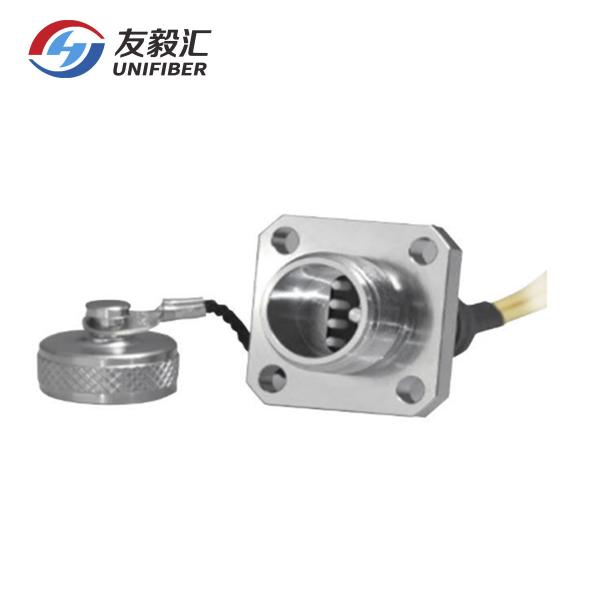

•Cable connector (male/female) and flange connector (female) are available


Application
-Indoor and Outdoor applications;

-Outdoor & Military communication equipment connection;

-Oil field, mine communication connection;

-Far transmission wireless base station;

-Video Surveillance system;

-Optical fiber sensor.

Item
Parameter
Connector Type
ODC , LC/FC/SC/ST
Fiber Type
Single mode 1310/1550 or multimode 850/1300
Insertion Loss
SM ≤0.2dB MM ≤0.2dB
Return Loss
SM ≥50dB MM ≥35dB
Repeatability
≤0.1
Interchangeability
≤0.2dB
Durability
≤0.2dB
Fiber Length
1m ,2m,3m .....any length for optional
Length and tolerance
+10cm
Operating Temperature
-45~85℃
Storage Temperature
-45~85℃

RQC ODC-4 Fiber FTTA CPRI Cable Assembly Rosenberger Quad ConnectorRQC ODC-4 Fiber FTTA CPRI Cable Assembly Rosenberger Quad Connector
