PE Sheath 1~24 Core G657A1 FTTH Fiber Optic Drop Wire
PE Sheath 1~24 Core G657A1 FTTH Fiber Optic Drop Wire
PE Sheath 1~24 Core G657A1 FTTH Fiber Optic Drop Wire
PE Sheath 1~24 Core G657A1 FTTH Fiber Optic Drop Wire
PE Sheath 1~24 Core G657A1 FTTH Fiber Optic Drop Wire
PE Sheath 1~24 Core G657A1 FTTH Fiber Optic Drop Wire
Specifications
Brand Name :
UNIFIBER-OEM
Model Number :
Flat Fiber Optic Drop Wire
Certification :
ROHS UL CE
Place of Origin :
CHINA
MOQ :
1KM
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
1000KM/month
Delivery Time :
5-7days
Packaging Details :
Wooden Drum
Product :
Flat Fiber Optic Drop Wire
Fiber :
G652D/G657A1/G657A2/G657B3
Fiber Count :
1~24 core
Strength Member :
FRP or Steel Wire
Outer Sheath :
LSZH/PE
Color :
Black
Description

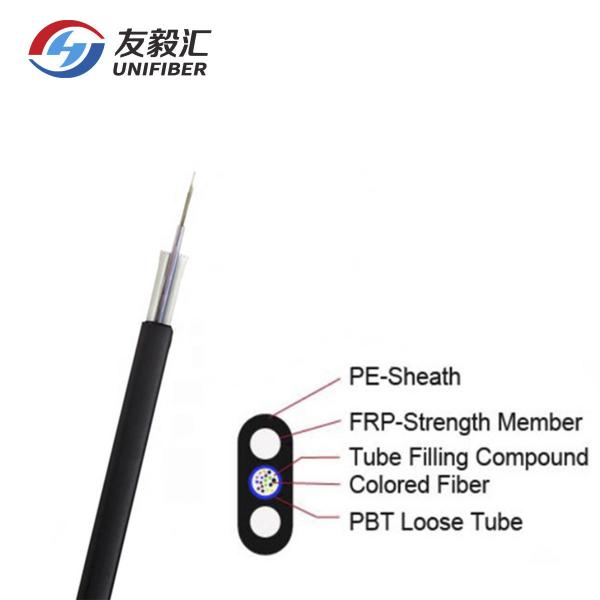

1~24 Core FTTH Outdoor Flat Fiber Optic Drop Wire G657A1 PE Sheath ,Designed for quick installation and ease in handling, serves as the last link for the FTTx networks of today. The design is Uni-Loose Tube containing up to 24 fibers.Two embedded FRP member to provide the mechanical properties of the cable. The finished product, with its compact size, acts as a self-supporting aerial solution for those last mile drops to the home or office.

Features

Good mechanical and environmental characteristics and anti-rodent;
The mechanical characteristics meets the requirements of relevants standards;
Soft, flexible, easy to splice, and with big capacity data transmission;
Meet various requirements of market and clients.

Application

Used as access building cable.
Used in horizontal and vertical cabling , especially used for FTTH.
Indoor cabling under carpet and along corner.

Specification

Fiber Count
Nominal Diameter (mm)
Nominal Weight (kg/km)
Allowable Tensile Load (N)
Allowable Crush Resistance (N/100mm)
Aerial Install span with 1%sag
Short Term
Long Term
Short Term
Long Term
NESC Light
NESC Medium
NESC Heavy
2~12
4.5*8.0
39
1800
750
2000
800
100meters
80meters
50meters
14~24
4.9*8.4
45
1800
750
2000
800
80meters
60meters
40meters

PE Sheath 1~24 Core G657A1 FTTH Fiber Optic Drop WirePE Sheath 1~24 Core G657A1 FTTH Fiber Optic Drop Wire
