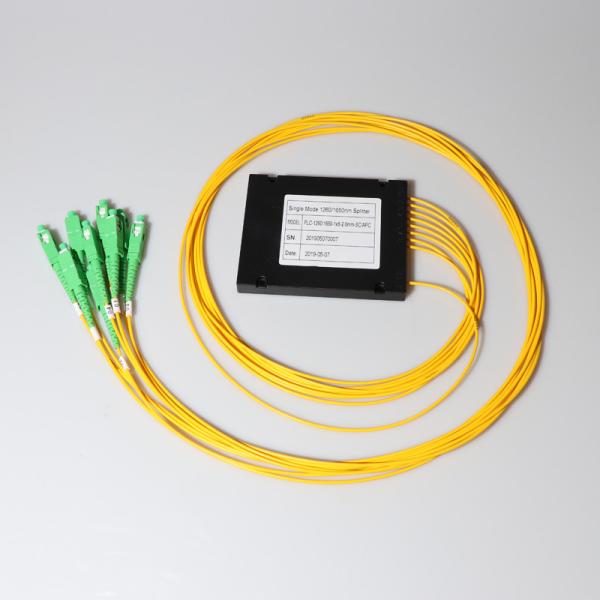

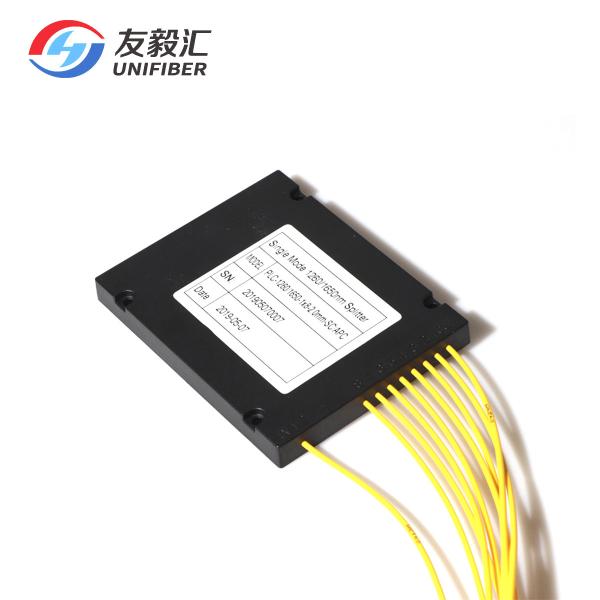

FTTH 1.5m Pigtail 8 Way 1x8 SC/APC Passive Optical Splitter
FTTH 1.5m Pigtail 8 Way 1x8 SC/APC Passive Optical Splitter
FTTH 1.5m Pigtail 8 Way 1x8 SC/APC Passive Optical Splitter
FTTH 1.5m Pigtail 8 Way 1x8 SC/APC Passive Optical Splitter
FTTH 1.5m Pigtail 8 Way 1x8 SC/APC Passive Optical Splitter
FTTH 1.5m Pigtail 8 Way 1x8 SC/APC Passive Optical Splitter
FTTH 1.5m Pigtail 8 Way 1x8 SC/APC Passive Optical Splitter
FTTH 1.5m Pigtail 8 Way 1x8 SC/APC Passive Optical Splitter
Specifications
Brand Name :
UNIFIBER-OEM
Model Number :
8 Way Passive Optical Splitter
Certification :
ROHS
Place of Origin :
CHINA
MOQ :
10pcs
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
1000pcs/day
Delivery Time :
5~7 Business days
Packaging Details :
Blister Case
Product :
8 Way Passive Optical Splitter
Configuration :
1 in 8 out
Package :
ABS Module
Fiber Type :
G657A1 or G657A2
Connector :
SC/APC LC/APC
Pigtail Length :
1m/1.5m
Description

FTTH 8 Way Passive Optical Splitter is a type of optical power management device that is fabricated using silica optical waveguide technology. It features small size, high reliability, wide operating wavelength range and good channel-to-channel uniformity, and is widely used in PON networks to realize optical signal power splitting.UNIFIBER provides whole series of 1xN and 2xN splitter products that are tailored for specific applications. All products meet GR-1209-CORE and GR-1221-CORE requirements.

Features

Uniform power splitting

Compact size and various package

High reliability

Low insertion loss and low PDL
Excellent environmental stability

Application

FTTX Solutions & CATV systems
Passive Optical Networks (PON)
LAN,WAN and Metro Networks

Specification

Parameters
Parameters
1×2
1×4
1×8
1×16
1×32
1×64
1×128
Operating Wavelength(nm)
1260~1650
Fiber Type
G657A1 or customer specified
Insertion Loss (dB)(P/S Grade)
3.8/4.0
7.1/7.3
10.2/10.5
13.5/13.7
16.5/16.9
20.5/21.0
23.8/24.2
Loss Uniformit(dB)
0.4
0.6
0.8
1.2
1.5
2
2.5
Polarization Dependent Loss(dB)
0.2
0.2
0.2
0.25
0.3
0.35
0.4
Return Loss(dB)(P/S Grade)
55/50
55/50
55/50
55/50
55/50
55/50
55/50
Directivity(dB)
55
55
55
55
55
55
55
Wavelength Dependent Loss(dB)
0.3
0.3
0.3
0.5
0.5
0.5
0.5
Temperature Stability (-40~85℃)(dB)
0.4
0.4
0.4
0.5
0.5
0.5
0.5
Operating Temperature(℃)
-40~+85
Storage Temperature(℃)
-40~+85
Device Dimension(mm)
40×4×4
40×4×4
40×4×4
50×7×4
50×7×4
60×12×4
N/A
Module Dimension(mm)
100×80×10
120×80×18
141×115×18
Mini-Module Dimension(mm)
50×7×4
60×12×4
80×20×6
100×40×6
N/A
Storage Temperature(℃)
-40~+85
Package dimension(mm)
Φ5.5x34 (L38 for 900um Loose tube)

FTTH 1.5m Pigtail 8 Way 1x8 SC/APC Passive Optical SplitterFTTH 1.5m Pigtail 8 Way 1x8 SC/APC Passive Optical Splitter
