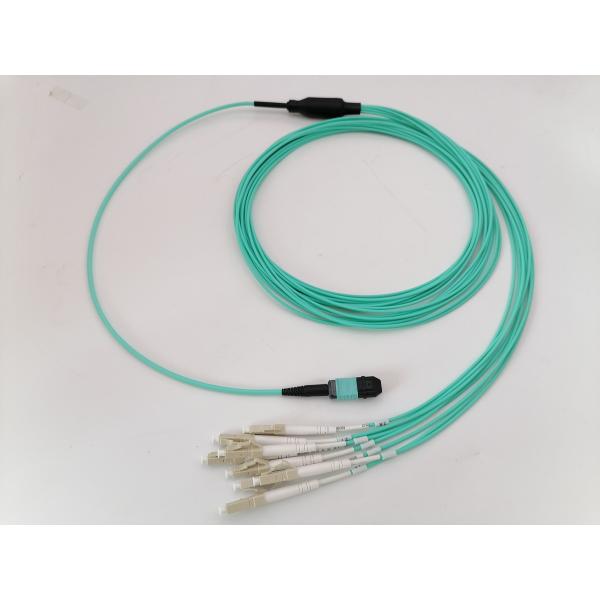

8 Core 3m Multimode Female To LC OM3 MPO Breakout Cables
8 Core 3m Multimode Female To LC OM3 MPO Breakout Cables
8 Core 3m Multimode Female To LC OM3 MPO Breakout Cables
8 Core 3m Multimode Female To LC OM3 MPO Breakout Cables
8 Core 3m Multimode Female To LC OM3 MPO Breakout Cables
8 Core 3m Multimode Female To LC OM3 MPO Breakout Cables
8 Core 3m Multimode Female To LC OM3 MPO Breakout Cables
8 Core 3m Multimode Female To LC OM3 MPO Breakout Cables
Specifications
Brand Name :
UNIFIBER-OEM
Model Number :
8 Core MPO to LC Break-out Cable
Certification :
ROHS
Place of Origin :
CHINA
MOQ :
10
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
1000pcs/day
Delivery Time :
5~7 Business days
Packaging Details :
PE bag
Product :
8 Core MPO to LC Break-out Cable
Connector 1 :
MPO female
Connector 2 :
LC
Fiber Type :
Multimode OM3
Cable Jacket :
LSZH
Length :
3M
Fiber Counts :
8 Core
Application :
Data Center
Description

MTP/MPO harness cables are a kind of breakout/fanout MPO cable assembly with one MTP/MPO connector on one end and multiple single-fiber connectors (LC, SC, ST, FC, etc.) on the other end, designed for data distribution and routing to patch panels. These cable assemblies meet the demands of 10G/25G Ethernet, higher speed 40G/100G Ethernet, and can be used for standards-compliant cable plant migration from 10G/25G to 40G/100G.UNIFIBER provide complete solution for your data center interconnection solution, including MPO/MTP Trunk Cable ,MPO/MTP Harnesses Cables ,MPO/MTP Fan out 0.9mm Patch Cords ,IP-Series MPO/MTP Assembly ,High Density Patch Cords ,MPO/MTP Loopback ,MT Patch Cords,MPO/MTP Cassettes ,MPO/MTP Fiber Optic Patch Panel;

Features
4-48core available
0.9, 2.0, 3.0 fanout available
Small volume, high fiber density
High back reflection loss value
Stable capability and high reliability
Excellent mechanical capability
Use in 10/40 Gigabit Ethernet and fiber channel applications
Used with 40GBase-SR4 networking hardware
Fan out a single 40Gbps MPO/MTP connection to four 10Gbps LC connections on devices such as fiber patch panels, hubs, switch,media converters, and routers


Application
High integrated equiement and devices
High density cable wiring system
Switching between trunk line and distribution line
Connection of trunk line
Local area networks
Wide area networks

Specification

Fiber Count
8F,12F,24F
Fiber Type
SM/MM/OM3/OM4
Connectors
MPO or MTP
Cable Color
Aqua, Orange, Green, Red, Blue, Gray, Black, Yellow
Cable Jacket
PVC,LSZH,Plenum (OFNP),PE
Cable Length
1/3/5m or Customized
Insertion Loss
Standard or Low Loss Optional

8 Core 3m Multimode Female To LC OM3 MPO Breakout Cables
